FRAME
GS550L 1982 (Z) USA (E03)

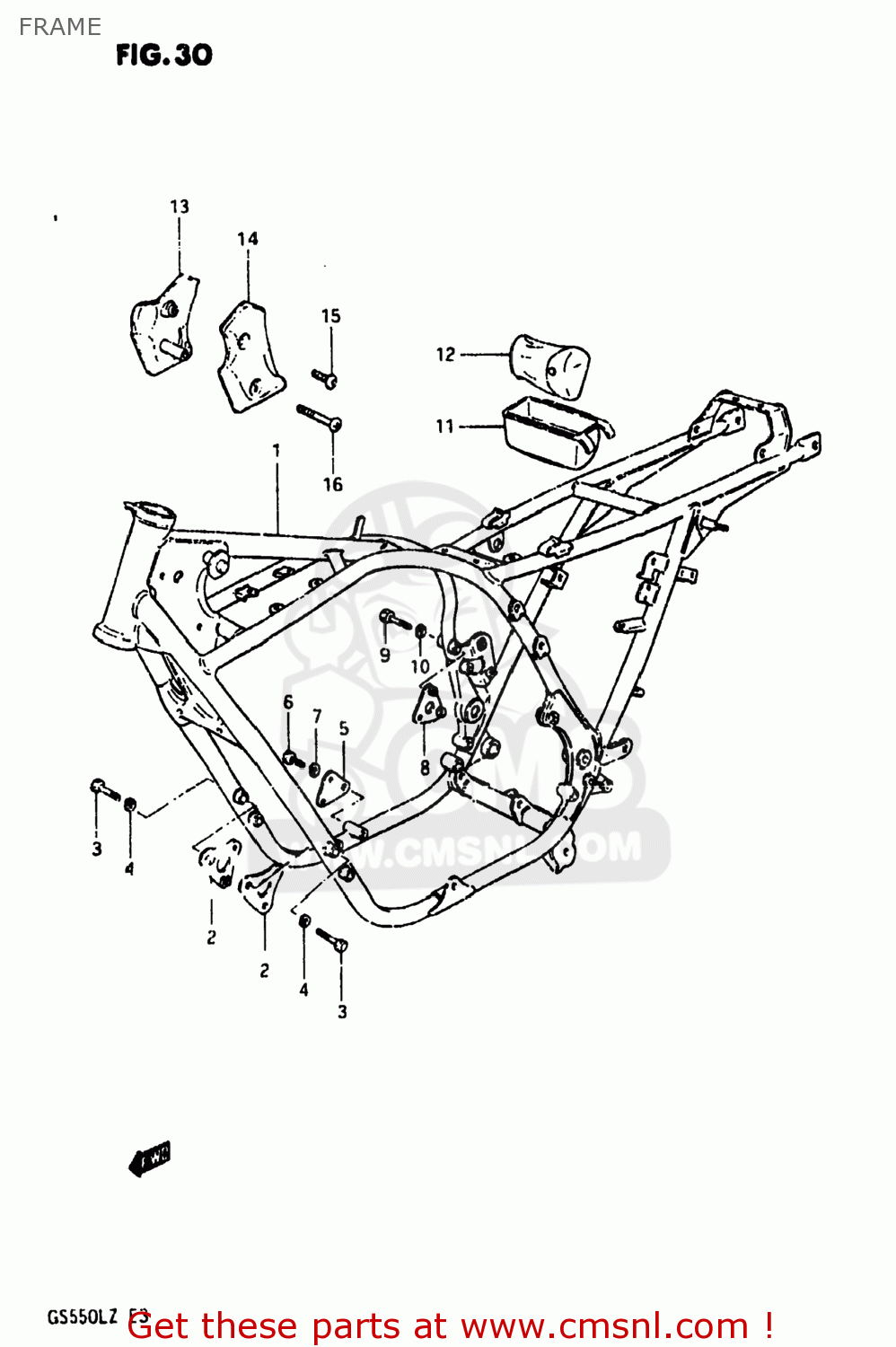

Frame diagram GS550L 1982 (Z) USA (E03)
FRAME GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110047500019
ref: 1
FRAME
€ 0.00
2
4191047000019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708608
ref: 3
01500-0860B
BOLT
€ 2.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
4199347000019
ref: 5
PLATE,ENGINE MOUNTING
€ 7.50
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8-1
4199047000019
ref: 8-1
41990-47001-019
PLATE,ENGINE MOUNTING
€ 8.00
8-2
4199047001019
ref: 8-2
PLATE,ENGINE MOUNTING
€ 8.00
9
0110708558
ref: 9
01500-08557
BOLT 8X55
€ 3.00
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11
4155147000
ref: 11
HOLDER,TOOL
€ 0.00
12
0980006800
ref: 12
09800-06801
TOOL SET
€ 52.00
13
5187634400
ref: 13
COVER,FRAME HEAD,RIGHT
€ 0.00
14
5188634400
ref: 14
COVER,FRAME HEAD,LEFT
€ 6.50
15
0214205205
ref: 15
02142-0520B
SCREW
€ 2.00
16
0214205458
ref: 16
02142-05453
SCREW, LOWER
€ 2.00
