MUFFLER
GS550L 1982 (Z) USA (E03)

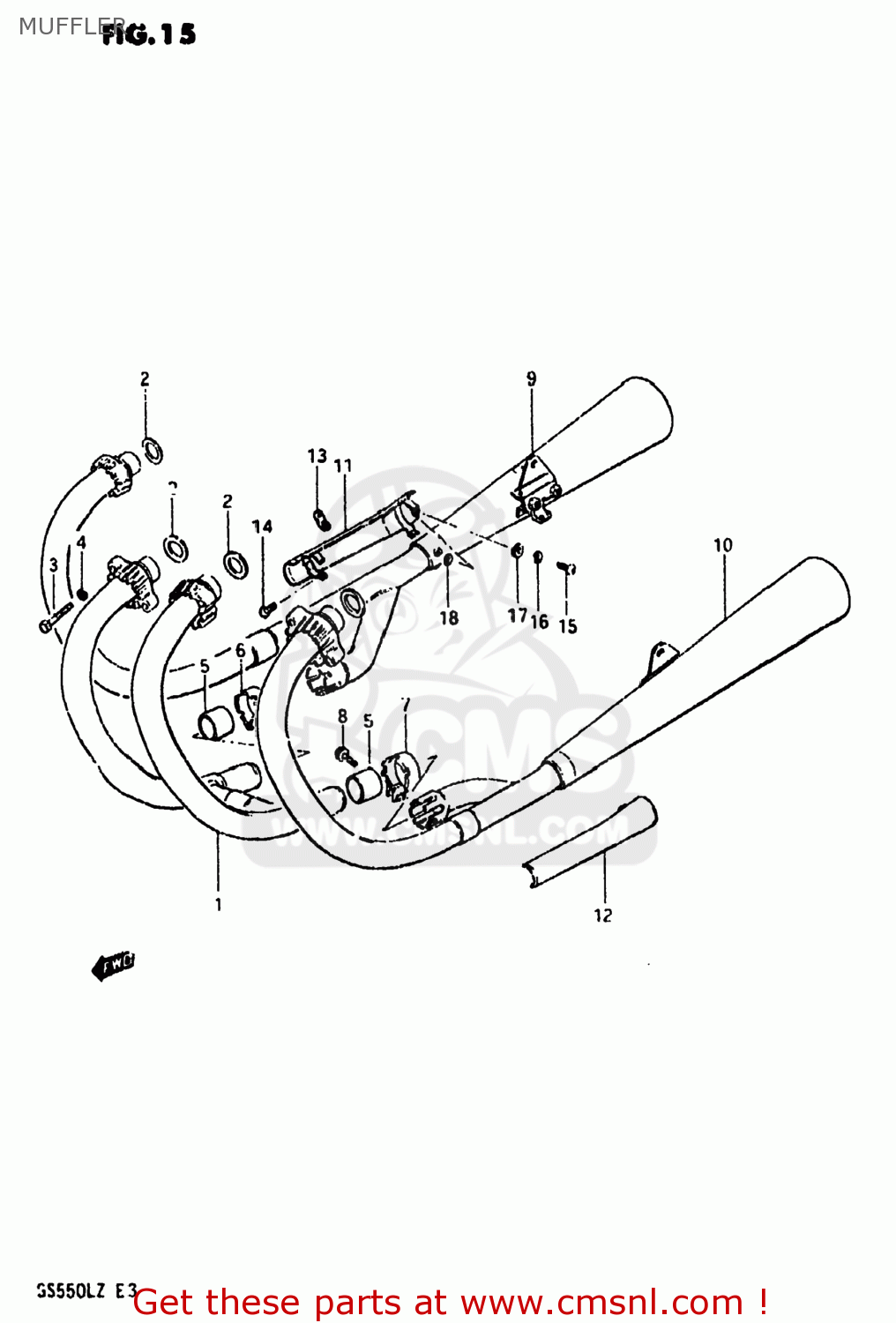

Muffler diagram GS550L 1982 (Z) USA (E03)
MUFFLER GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410047300
ref: 1
PIPE,EXHAUST,CENTER
€ 306.00
2
1418103310
ref: 2
14181-37D00
GASKET,EXHAUST PIPE (NAS)
€ 7.00
3
0110708358
ref: 3
01500-0835B
BOLT
€ 3.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
1477147010
ref: 5
14771-47020-H17
CONNECTOR,MUFFLER
€ 35.00
6
1445934200
ref: 6
CLAMP,MUFFLER CONNECTOR,R
€ 13.00
7
1446934200
ref: 7
CLAMP,MUFFLER CONNECTOR,L
€ 13.00
8
0151708258
ref: 8
01550-08257
BOLT
€ 2.50
9
1430147300
ref: 9
14301-47301-H01
MUFFLER ASSEMBLY
€ 405.50
10
1430247300
ref: 10
14302-47301-H01
MUFFLER ASSEMBLY
€ 385.00
11-1
1478034500
ref: 11-1
14701-34500
COVER,MUFFLER
€ 37.50
11-2
1470134500
ref: 11-2
COVER,MUFFLER,RIGHT
€ 37.50
12-1
1479034500
ref: 12-1
14702-34500
COVER,MUFFLER
€ 44.50
12-2
1470234500
ref: 12-2
COVER,MUFFLER,LEFT
€ 44.50
13
1478534200
ref: 13
CLAMP,MUFFLER COVER
€ 8.00
14
0211205208
ref: 14
02112-05207
SCREW 5X20
€ 3.00
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0916806005
ref: 18
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
