FRONT FORK (MODEL Z)
GS550L 1982 (Z) USA (E03)

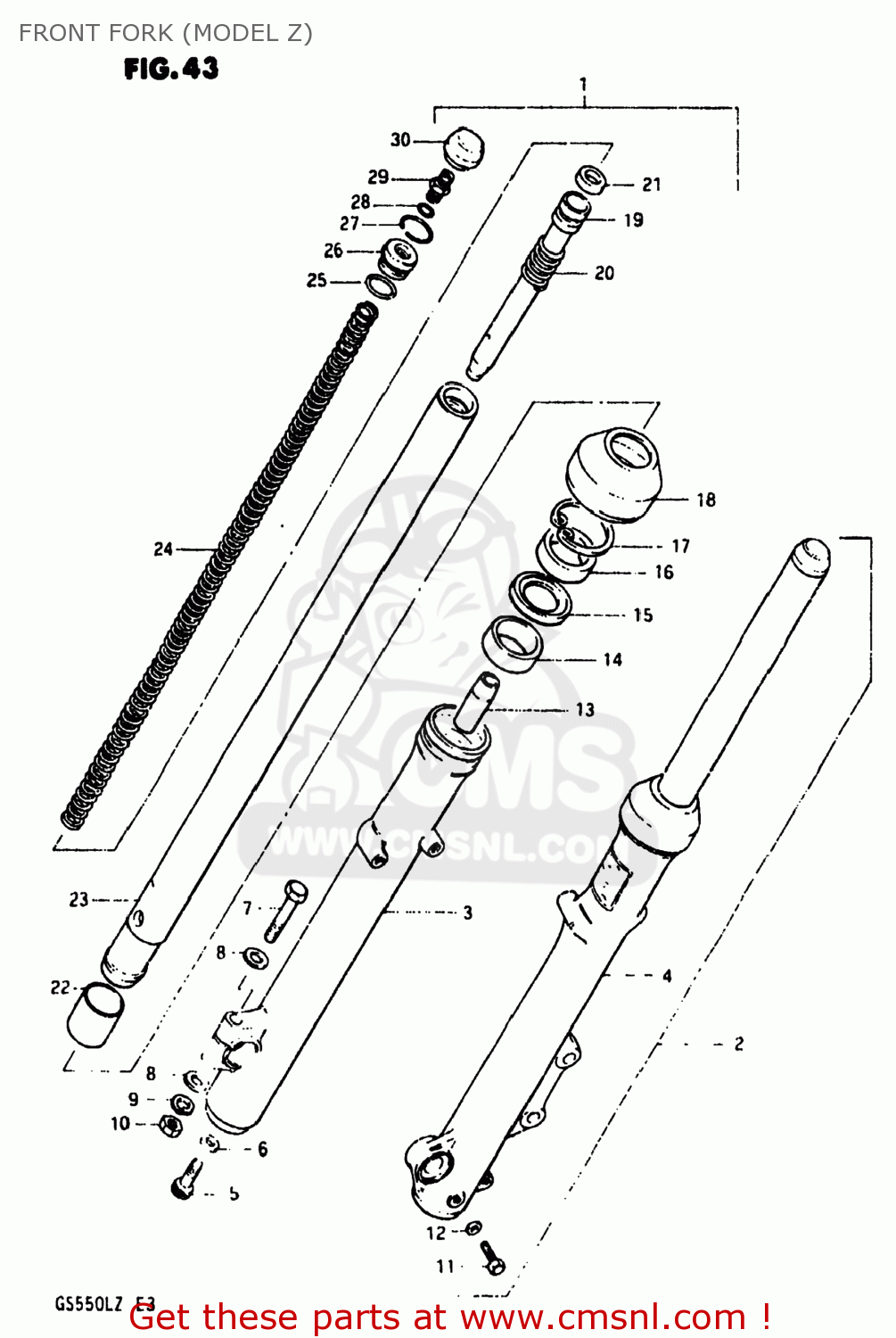

Front fork (model z) diagram GS550L 1982 (Z) USA (E03)
FRONT FORK (MODEL Z) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110334420
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 518.50
2
5110434420
ref: 2
DAMPER ASSEMBLY,FRONT FORK,LEFT
€ 518.50
3
5113034420
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 226.50
4
5114034420
ref: 4
TUBE,OUTER,LEFT
€ 107.00
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
51148-36011
GASKET (NAS)
€ 4.00
7
0110708508
ref: 7
01500-08507
BOLT 8X50
€ 3.00
8
0832221088
ref: 8
08322-01087
WASHER
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0831012088
ref: 10
08310-00087
NUT
€ 2.00
11
0110706088
ref: 11
09100-06157
BOLT
€ 2.50
12
5118331030
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 4.00
13
5119545030
ref: 13
PIECE,OIL LOCK
€ 16.00
14
5115245400
ref: 14
BUSH,GUIDE
€ 14.00
15
5116845031
ref: 15
51168-30B00
SPACER,SEAL
€ 5.00
16
5115334200
ref: 16
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
17
5115645440
ref: 17
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
18
5157134200
ref: 18
51571-20520
BOOT
€ 19.50
19
5114645230
ref: 19
CYLINDER,FRONT FORK
€ 23.50
20
5117745030
ref: 20
SPRING,FORK REBOUND
€ 4.00
21
5119631230
ref: 21
RING
€ 7.50
22
5112145400
ref: 22
PISTON
€ 22.00
23
5111047510
ref: 23
TUBE,FORK,INNER
€ 199.50
24
5117134420
ref: 24
SPRING,FRONT
€ 19.50
25
5111731030
ref: 25
51181-31030
O-RING
€ 3.50
26
5117234420
ref: 26
SEAT,SPRING
€ 6.00
27
5116947400
ref: 27
RING,STOPPER
€ 2.50
28
5111745440
ref: 28
09280-06005
O-RING
€ 2.50
29
5129345440
ref: 29
VALVE,AIR
€ 17.00
30
5118934420
ref: 30
CAP
€ 6.50
