REAR MASTER CYLINDER (MODEL X)
GS550L 1982 (Z) USA (E03)

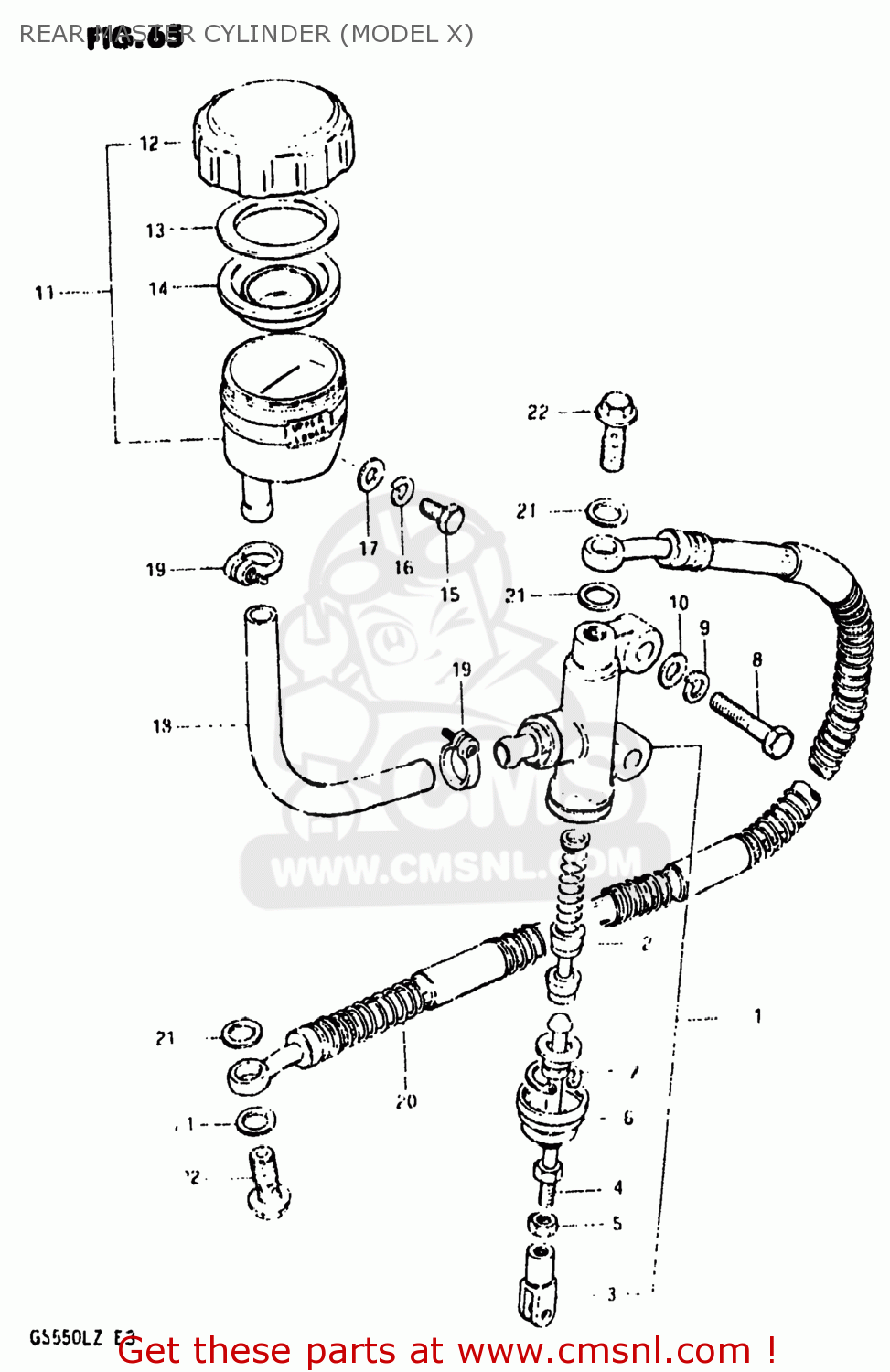

Rear master cylinder (model x) diagram GS550L 1982 (Z) USA (E03)
REAR MASTER CYLINDER (MODEL X) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960047001
ref: 1
69600-47011
CYLINDER ASSEMBLY,REAR MASTER
€ 182.00
2
6960045810
ref: 2
69600-45820
PISTON/CUP SET
€ 53.00
3
6969245001
ref: 3
69692-34300
YOKE
€ 11.00
4
6967045000
ref: 4
69670-45001
ROD,PUSH
€ 18.50
5
0831012088
ref: 5
08310-00087
NUT
€ 2.00
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0110708308
ref: 8
01500-08307
BOLT (8X30)
€ 2.50
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
6974034230
ref: 11
69740-31D00
TANK ASSEMBLY,RESERVOIR
€ 27.50
12
5966933603
ref: 12
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
6973134500
ref: 18
HOSE,RESERVOIR TANK
€ 0.00
19
6973534200
ref: 19
CLAMP
€ 4.50
20
6948034503
ref: 20
HOSE,REAR BRAKE
€ 76.50
21
0916110005
ref: 21
09161-10009
WASHER
€ 2.00
22
0936010007
ref: 22
09360-10017
BOLT,UNION
€ 6.50
