REAR WHEEL (MODEL X)
GS550L 1982 (Z) USA (E03)

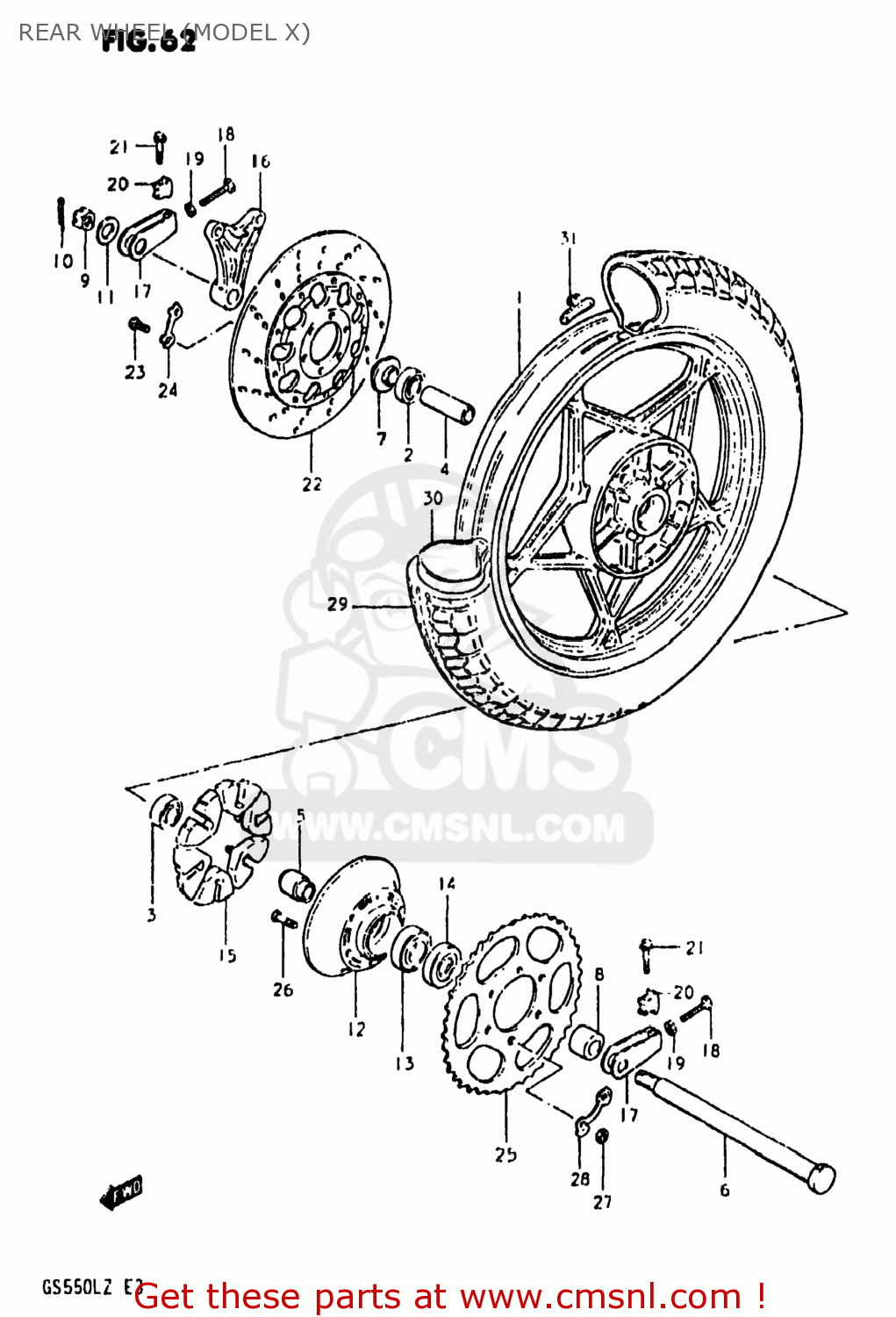

Rear wheel (model x) diagram GS550L 1982 (Z) USA (E03)
REAR WHEEL (MODEL X) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411149100291
ref: 1
WHEEL,REAR
€ 195.50
2
0813363037
ref: 2
BEARING
€ 28.50
3
0815363037
ref: 3
BEARING
€ 19.50
4
0918020062
ref: 4
SPACER(20.5X28X88)
€ 11.50
5
6473347000
ref: 5
RETAINER,REAR SPROCKET D
€ 16.50
6
6471147200
ref: 6
AXLE,REAR
€ 30.50
7
6474047001
ref: 7
64740-47002
SPACER,REAR AXLE
€ 12.50
8
0918017048
ref: 8
SPACER (17X33X21.1)
€ 7.50
9
0914116001
ref: 9
NUT
€ 6.50
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
€ 1.50
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
€ 2.00
12
6461147500
ref: 12
DRUM,REAR SPROCKET MOUNT
€ 61.00
13
0811363050
ref: 13
09262-25073
BEARING
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
16
6972147001
ref: 16
BRACKET,RR,CALIPER
€ 27.50
17
6141047200
ref: 17
ADJUSTER,CHAIN
€ 58.00
18
0910408018
ref: 18
09104-08034
BOLT 8X50
€ 3.00
19
0831012088
ref: 19
08310-00087
NUT
€ 2.00
20
6143331000
ref: 20
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
21
0151708508
ref: 21
01550-08507
BOLT
€ 3.50
22
5921018401
ref: 22
59210-18402
DISC,BRAKE
€ 208.50
23
0910008094
ref: 23
BOLT(8X30)
€ 2.50
24
0916908016
ref: 24
WASHER
€ 3.50
25
6451131741
ref: 25
SPROCKET,REAR (NT:49)
€ 113.50
26
0911910002
ref: 26
09105-10001
BOLT
€ 3.50
27
0914010026
ref: 27
09140-10026-XC0
NUT
€ 2.00
28
0916910007
ref: 28
WASHER
€ 7.50
29-1
6510047510
ref: 29-1
TIRE
€ 128.50
29-2
6510047550
ref: 29-2
TIRE
€ 84.00
30
6520049120
ref: 30
TUBE ASSEMBLY,WHEEL,INNER
€ 17.00
31-1
5541147001
ref: 31-1
BALANCER,WHEEL
€ 4.00
31-2
5541247001
ref: 31-2
BALANCER,WHEEL
€ 3.50
