GS550L 1982 (Z) USA (E03)

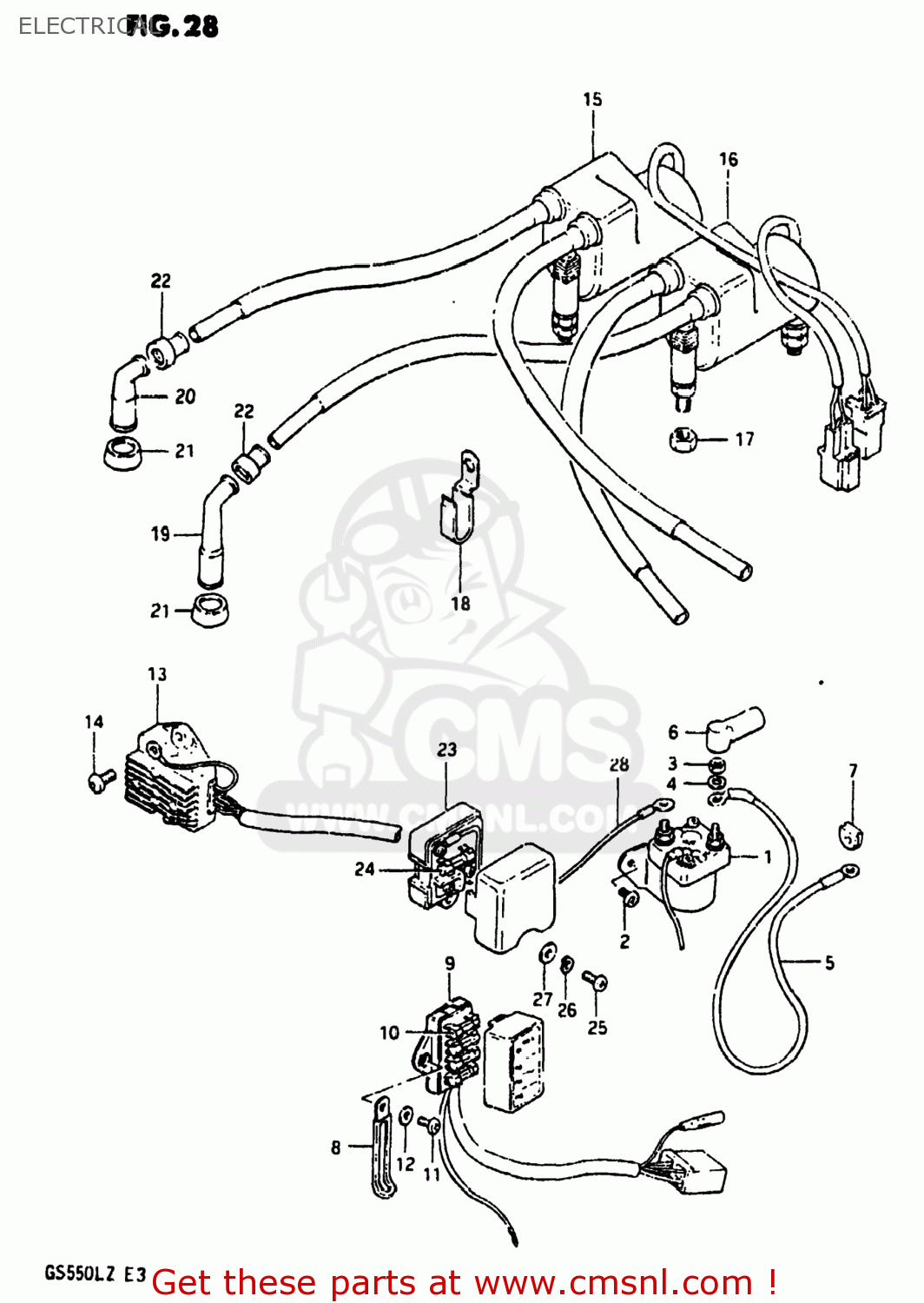

Electrical diagram GS550L 1982 (Z) USA (E03)
ELECTRICAL GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206088
ref: 2
02112-06087
SCREW
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385047020
ref: 5
33850-48B00
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3148247000
ref: 7
GROMMET,STARTER CABLE
€ 2.00
8
0940406414
ref: 8
09404-06433
CLAMP
€ 3.00
9
3674034500
ref: 9
36740-34X01
BOX ASSEMBLY,FUSE
€ 60.50
10-1
0948115001
ref: 10-1
FUSE(15A)
€ 3.00
10-2
0948110001
ref: 10-2
FUSE(10A)
€ 2.00
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
13
3280047020
ref: 13
32800-47121
RECTIFIER ASSEMBLY
€ 248.00
14
0211206168
ref: 14
02112-06167
SCREW
€ 2.50
15
3341047020
ref: 15
33410-47021
COIL ASSEMBLY,IGNITION
€ 584.00
16
3342047020
ref: 16
33410-47021
COIL ASSEMBLY,IGNITION
€ 584.00
17
0831011068
ref: 17
08310-00067
NUT
€ 2.50
18
0940306307
ref: 18
CLAMP
€ 4.50
19
3351043010
ref: 19
CAP,SPARK PLUG
€ 11.50
20
3351043010
ref: 20
CAP,SPARK PLUG
€ 11.50
21
3354169010
ref: 21
SEAL,SPARK PLUG
€ 5.00
22
3354298000
ref: 22
33542-38B00
SEAL,SPARK PLU
€ 4.50
23
3885047000
ref: 23
TERMINAL ASSEMBLY,POWER SO
€ 94.00
24
0948110001
ref: 24
FUSE(10A)
€ 2.00
25
0211206168
ref: 25
02112-06167
SCREW
€ 2.50
26
0832121068
ref: 26
08321-01067
LOCK WASHER
€ 2.50
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
3685147000
ref: 28
WIRE,POWER SOURCE LEAD
€ 8.50
