WIRING HARNESS
GS550L 1982 (Z) USA (E03)

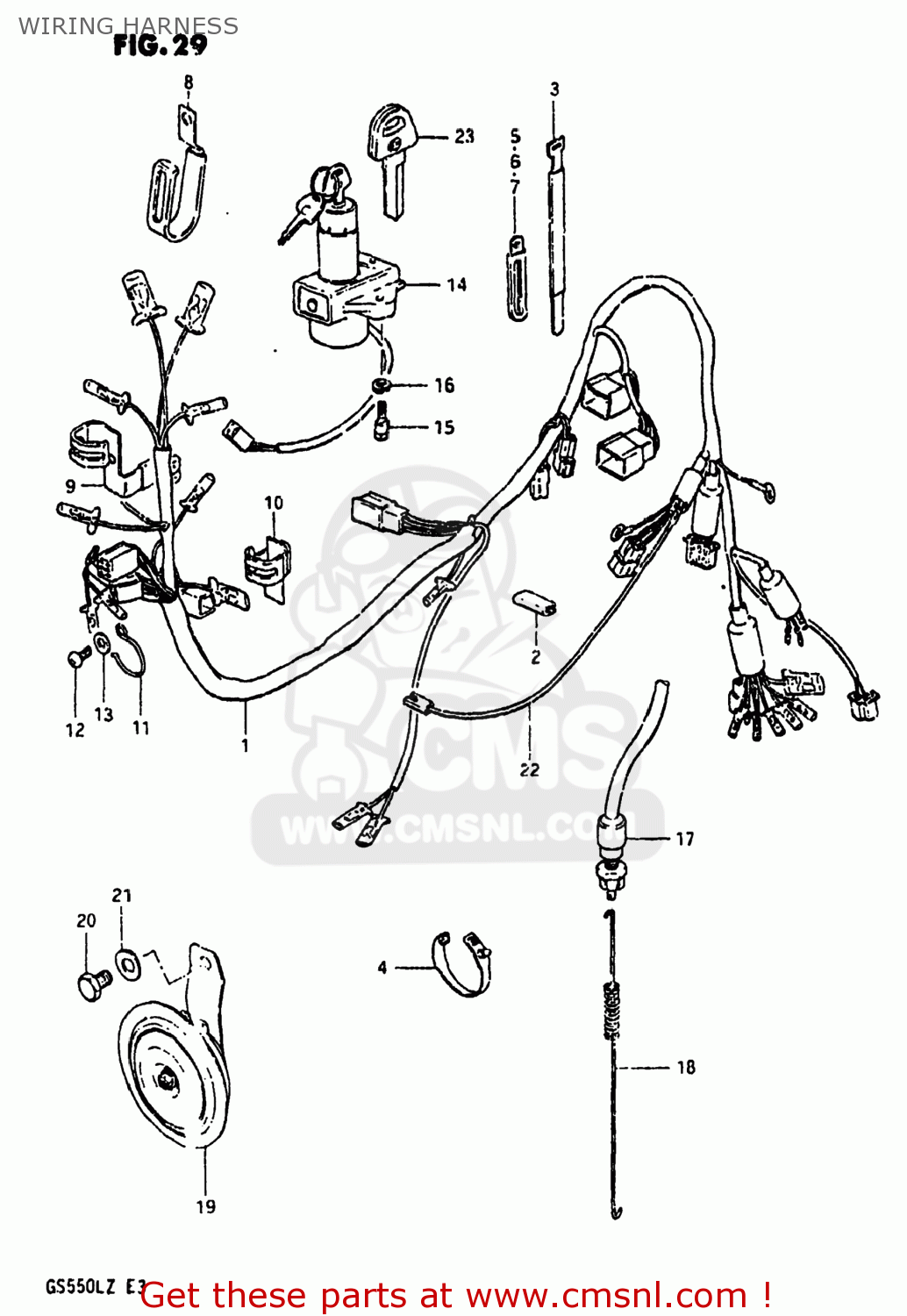

Wiring harness diagram GS550L 1982 (Z) USA (E03)
WIRING HARNESS GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661047500
ref: 1-1
HARNESS,WIRING
€ 93.00
1-2
3661047520
ref: 1-2
HARNESS,WIRING
€ 96.00
2
3661138000
ref: 2
PROTECTOR,WIRING HARNESS
€ 2.50
3
0940725301
ref: 3
CLAMP(L:250)
€ 4.50
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5
0940406415
ref: 5
09404-06433
CLAMP
€ 3.00
6
0940406414
ref: 6
09404-06433
CLAMP
€ 3.00
7
0940406412
ref: 7
09404-06432
CLAMP
€ 2.50
8
3665134400
ref: 8
CLAMP,WIRING HARNESS
€ 0.00
9
3665134410
ref: 9
CLAMP,WIRING HARNESS
€ 0.00
10
3665134420
ref: 10
CLAMP,WIRING HARNESS
€ 0.00
11
3661944000
ref: 11
36619-44002
GUIDE,WIRING HARNESS
€ 2.50
12
0211206128
ref: 12
02112-06127
SCREW 6X12
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
3710045301
ref: 14
SWITCH ASSY,IGNITION
€ 127.50
15
3715247010
ref: 15
07130-0616B
BOLT
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
3774004571
ref: 17
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
18-1
0944306018
ref: 18-1
09443-06018-XC0
SPRING
€ 4.50
18-2
0944306005
ref: 18-2
SPRING
€ 6.00
19-1
3850034220
ref: 19-1
38500-34221
HORN ASSEMBLY
€ 0.00
19-2
3850034230
ref: 19-2
HORN ASSEMBLY
€ 41.00
20
0110708128
ref: 20
01500-08127
BOLT 8X12
€ 2.50
21
0832211088
ref: 21
08322-01087
WASHER
€ 2.00
22
3685345000
ref: 22
36853-45001
WIRE
€ 9.50
23
3714647010
ref: 23
KEY,BLANK
€ 15.00
