STAND
GS550L 1982 (Z) USA (E03)

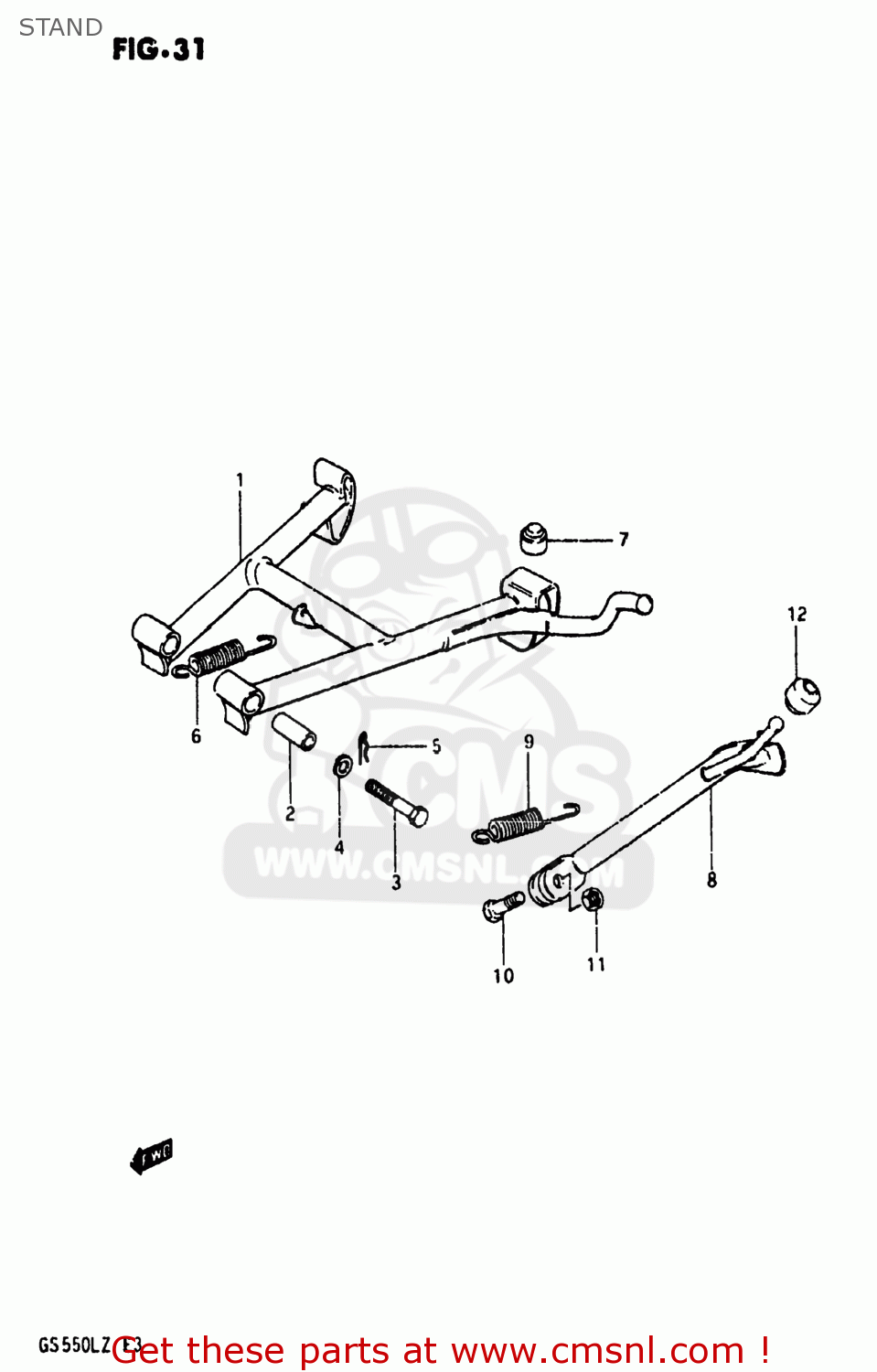

Stand diagram GS550L 1982 (Z) USA (E03)
STAND GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210034200
ref: 1
STAND,CENTER
€ 76.50
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944318003
ref: 6
09443-18006-XC0
SPRING
€ 5.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231047500
ref: 8
STAND,SIDE
€ 35.00
9
0944317005
ref: 9
09443-17008-XC0
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
