CLUTCH
GS550L 1982 (Z) USA (E03)

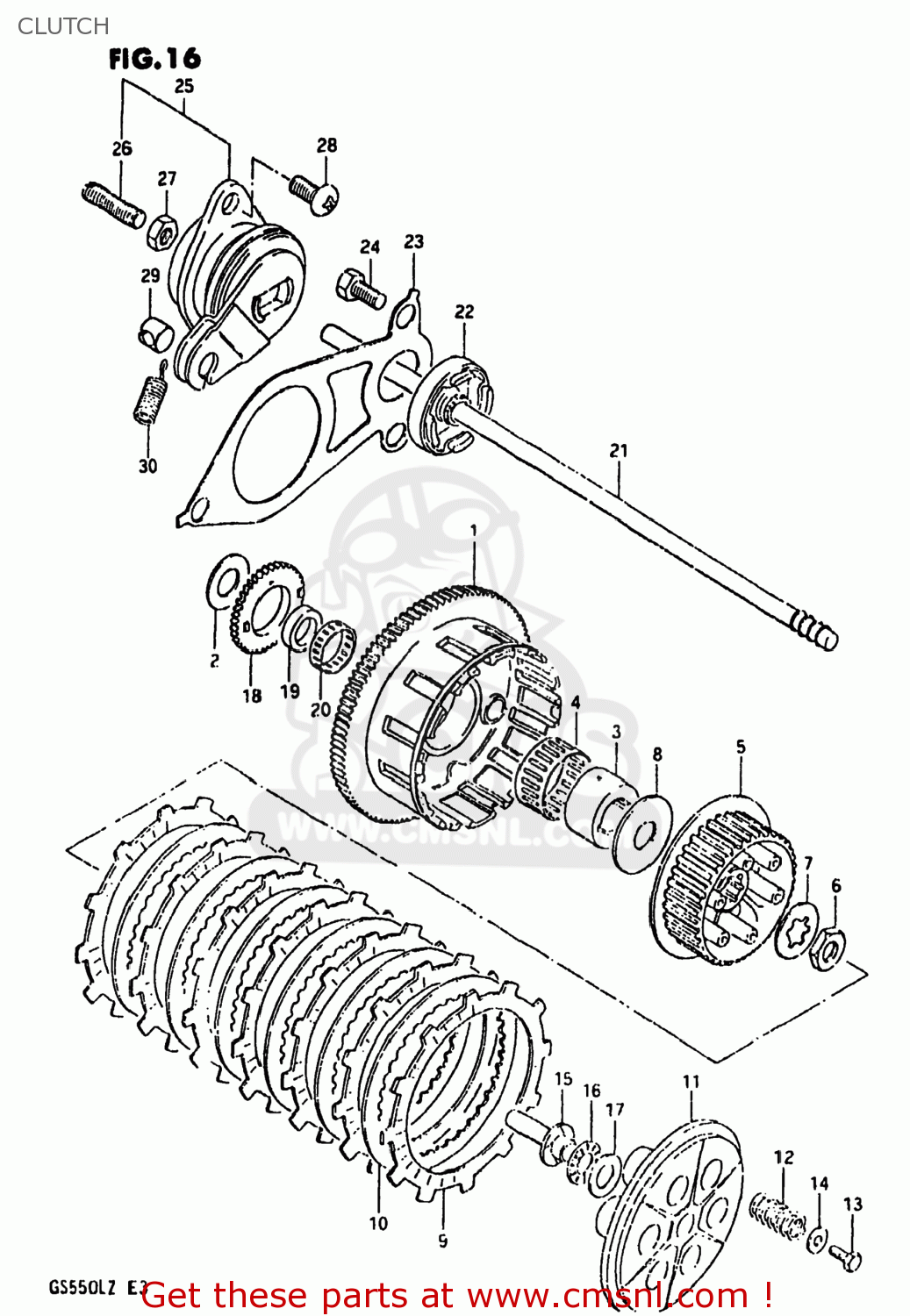

Clutch diagram GS550L 1982 (Z) USA (E03)
CLUTCH GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120047010
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE NT:87
€ 244.50
2
0916025023
ref: 2
09160-25055
WASHER
€ 9.50
3
2125145001
ref: 3
21251-49200
SPACER,PRIMARY DRIVEN
€ 65.50
4
0926351001
ref: 4
09263-51002
BEARING
€ 37.00
5
2141147000
ref: 5
HUB,CLUTCH SLEEVE
€ 80.50
6
0914024004
ref: 6
09140-24007
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
0916025022
ref: 8
WASHER(25X66X3.5)
€ 13.50
9
2144145000
ref: 9
21441-45001
PLATE,CLUTCH DRIVE (NAS)
€ 20.00
10
2145145000
ref: 10
21451-28C31
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
11
2146216501
ref: 11
21462-14301
DISC,CLUTCH PRESSURE
€ 51.00
12
0944019004
ref: 12
SPRING
€ 3.00
13
0110706168
ref: 13
01500-06167
BOLT, UPPER
€ 3.00
14
0916006020
ref: 14
09160-06066
WASHER
€ 2.00
15
2312144100
ref: 15
PIECE,CLUTCH PUSH
€ 21.50
16
0926315003
ref: 16
BEARING(15X28X2)
€ 7.00
17
0916015015
ref: 17
09160-15045
WASHER
€ 4.00
18
1632145002
ref: 18
GEAR,ENG OIL PUMP DRIVE(NT:38)
€ 151.00
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
€ 24.50
21
2310044101
ref: 21
ROD,CLUTCH PUSH
€ 18.50
22
0928306001
ref: 22
09285-06011
OIL SEAL
€ 9.50
23
2311747000
ref: 23
23117-44000
PLATE,CLUTCH PUSH ROD
€ 17.00
24
0110706128
ref: 24
01500-06127
BOLT
€ 2.00
25
2320030001
ref: 25
23200-30002
SCREW ASSEMBLY,CLUTCH RELEASE
€ 80.50
26
0913406001
ref: 26
09134-06010
SCREW
€ 3.00
27
0831022068
ref: 27
08310-00067
NUT 6MM
€ 2.50
28
0211206128
ref: 28
02112-06127
SCREW 6X12
€ 2.00
29
2322207000
ref: 29
PIECE,RELEASE ARM END
€ 5.00
30
0944308001
ref: 30
SPRING
€ 3.00
