FUEL TANK (MODEL X)
GS550L 1982 (Z) USA (E03)

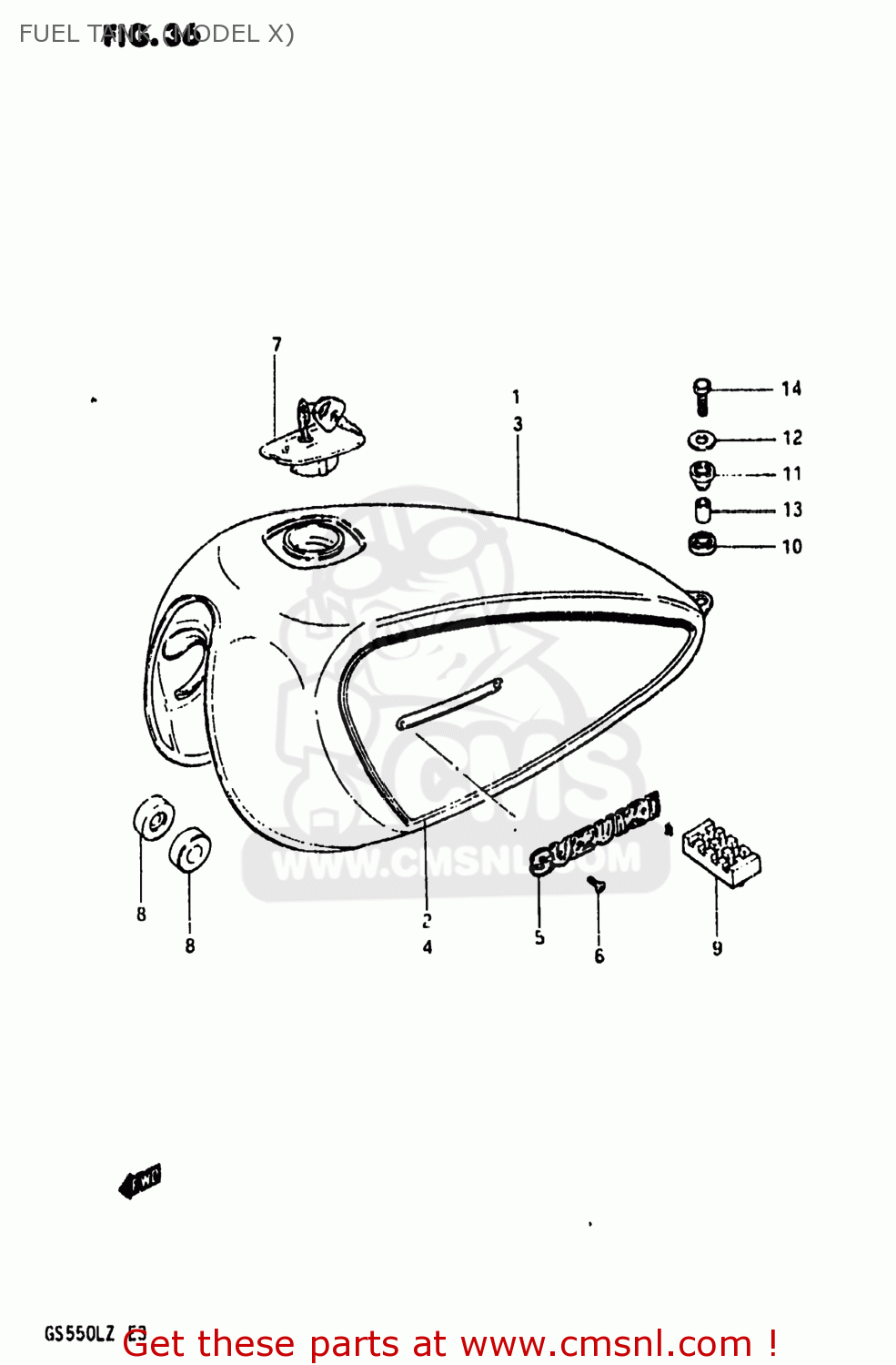

Fuel tank (model x) diagram GS550L 1982 (Z) USA (E03)
FUEL TANK (MODEL X) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410034400019
ref: 1
44110-34400-13L
TANK ASSEMBLY,FUEL
€ 576.50
2
6811034400764
ref: 2
TAPE SET,FUEL TANK
€ 39.50
3
441003440010U
ref: 3
44110-34400-13L
TANK ASSEMBLY,FUEL
€ 576.50
4
6811034400764
ref: 4
TAPE SET,FUEL TANK
€ 39.50
5
6811111400
ref: 5
EMBLEM,FUEL TANK
€ 24.50
6
0213203065
ref: 6
02122-0306B
SCREW 3X6
€ 2.00
7
4420049702
ref: 7
44200-49810
CAP SET,FUEL TANK
€ 121.00
8
0932910007
ref: 8
CUSHION
€ 3.00
9
4454134500
ref: 9
CUSHION,FUEL TANK CTR
€ 13.00
10
0932014013
ref: 10
CUSHION
€ 3.00
11
0932010020
ref: 11
CUSHION
€ 4.00
12
0916006004
ref: 12
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
13
0918006072
ref: 13
09180-06271
SPACER
€ 2.00
14
0110706308
ref: 14
01500-06307
BOLT
€ 2.50
