SPEEDOMETER - TACHOMETER (MODEL Z)
GS550L 1982 (Z) USA (E03)

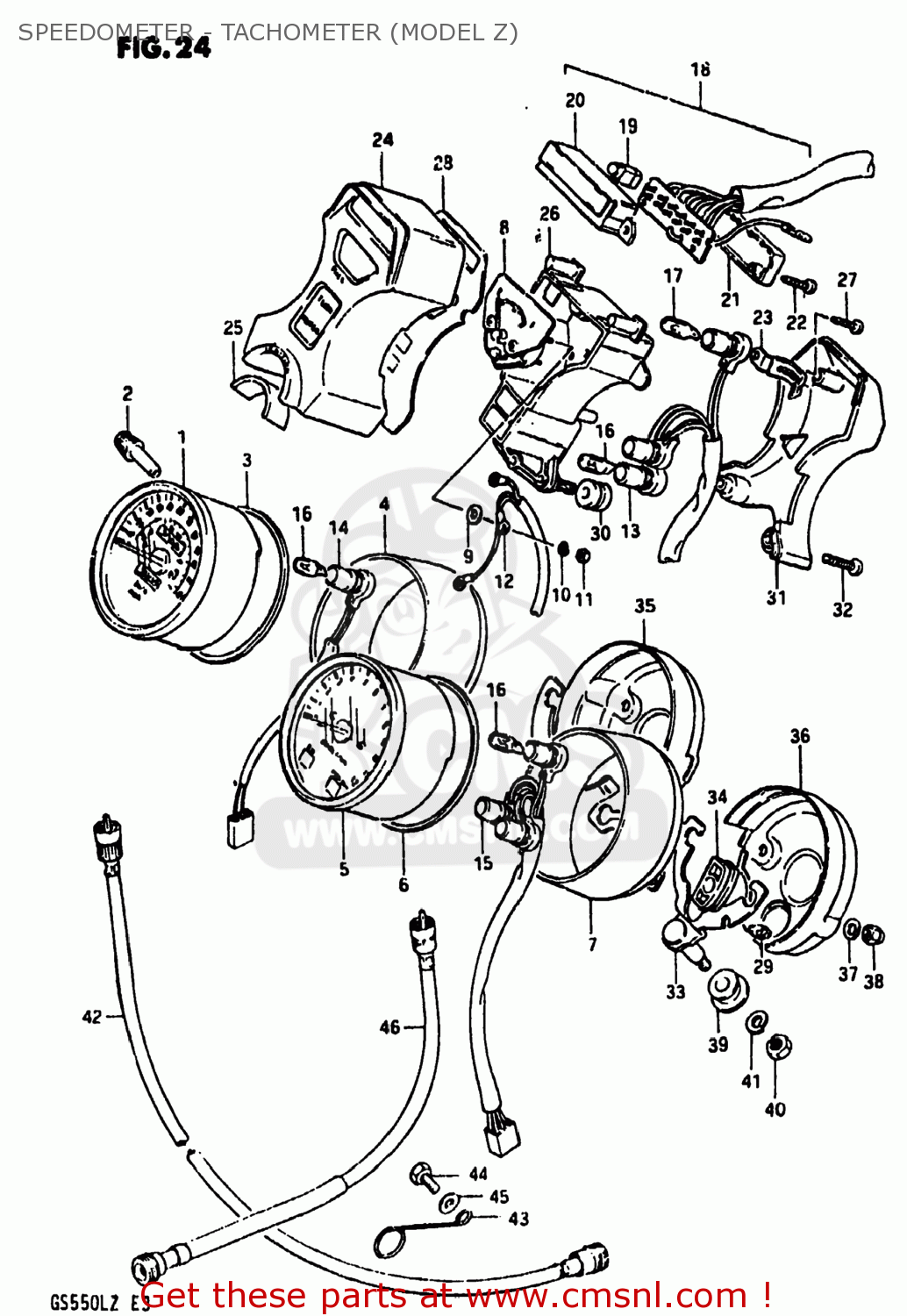

Speedometer - tachometer (model z) diagram GS550L 1982 (Z) USA (E03)
SPEEDOMETER - TACHOMETER (MODEL Z) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411047460
ref: 1
METER,SPEEDOMETER
€ 158.50
2
3498045020
ref: 2
KNOB
€ 4.50
3
3418933220
ref: 3
34189-45300
CUSHION,SPEEDOMETER
€ 10.00
4
3415133220
ref: 4
COVER,SPEEDOMETER
€ 15.00
5
3421047460
ref: 5
34210-45360
TACHOMETER
€ 392.00
6
3418933220
ref: 6
34189-45300
CUSHION,SPEEDOMETER
€ 10.00
7
3425133220
ref: 7
COVER,TACHOMETER
€ 15.50
8
3432033220
ref: 8
METER,FUEL
€ 90.50
9
3438433220
ref: 9
WASHER,FUEL METER
€ 2.00
10
0832121038
ref: 10
09162-03001
LOCK WASHER
€ 1.50
11
0831011038
ref: 11
08310-0003B
NUT 3MM
€ 2.00
12
3437845360
ref: 12
SOCKET,FUEL METER
€ 18.50
13
3632545630
ref: 13
SOCKET
€ 19.00
14
3417345360
ref: 14
SOCKET,SPEEDOMETER
€ 0.00
15
3427345360
ref: 15
SOCKET,TACHOMETER
€ 30.00
16
0947112028
ref: 16
BULB(12V3.4W,T10)
€ 3.50
17
0947112077
ref: 17
BULB(12V1.7W,T10,WB121)
€ 1.00
18
3645047450
ref: 18
INDICATOR ASSEMBLY,GEAR POSITION
€ 151.00
19
0947112071
ref: 19
BULB(14V1.12W)
€ 5.00
20
3645245100
ref: 20
CASE,GEAR INDICATOR
€ 14.50
21
3645445100
ref: 21
COVER,LWR
€ 7.00
22
3645645100
ref: 22
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
23
3649433220
ref: 23
CLAMP,CORD
€ 3.00
24
3638133220
ref: 24
CASE,PILOT BOX
€ 82.00
25
3499347000
ref: 25
SEAL,IGNITION SWITCH
€ 3.00
26
3638233220
ref: 26
CASE,PILOT BOX,INNER
€ 39.00
27
3645633220
ref: 27
35625-01A00
SCREW,INDICATOR
€ 1.50
28
3638633220
ref: 28
PLATE,PILOT BOX
€ 18.50
29
3419144310
ref: 29
CUSHION
€ 3.00
30
3638445300
ref: 30
CUSHION,PILOT BOX
€ 3.50
31
3638333220
ref: 31
COVER,PILOT BOX,UNDER
€ 25.00
32
0211204168
ref: 32
02112-0416A
SCREW
€ 1.00
33
3495045360
ref: 33
BRACKET,COMBINATION METER
€ 44.50
34
3418944310
ref: 34
34189-44311
CUSHION,METER
€ 2.50
35
3419333220
ref: 35
34193-33221
COVER,METER,UNDER
€ 37.50
36
3429333220
ref: 36
34293-33221
PLATE,TACHOMETER UNDER
€ 39.50
37
0832221058
ref: 37
08322-01057
WASHER
€ 2.50
38
0831311057
ref: 38
08313-1005A
NUT
€ 1.50
39
3495631001
ref: 39
CUSHION,METER BRACKET
€ 4.50
40
0831012088
ref: 40
08310-00087
NUT
€ 2.00
41
0832121088
ref: 41
08321-01087
LOCK WASHER
€ 2.00
42
3491034400
ref: 42
34910-45421
CABLE ASSEMBLY,SPEEDOMETER
€ 19.00
43
3493845100
ref: 43
CLAMP,SPEEDOMETER CABLE
€ 14.50
44
0110706168
ref: 44
01500-06167
BOLT, UPPER
€ 3.00
45
0832221068
ref: 45
08322-01067
WASHER
€ 2.00
46
3494047032
ref: 46
34940-47033
CABLE ASSEMBLY,TACHOMETER
€ 20.50
