FRAME COVER (MODEL X)
GS550L 1982 (Z) USA (E03)

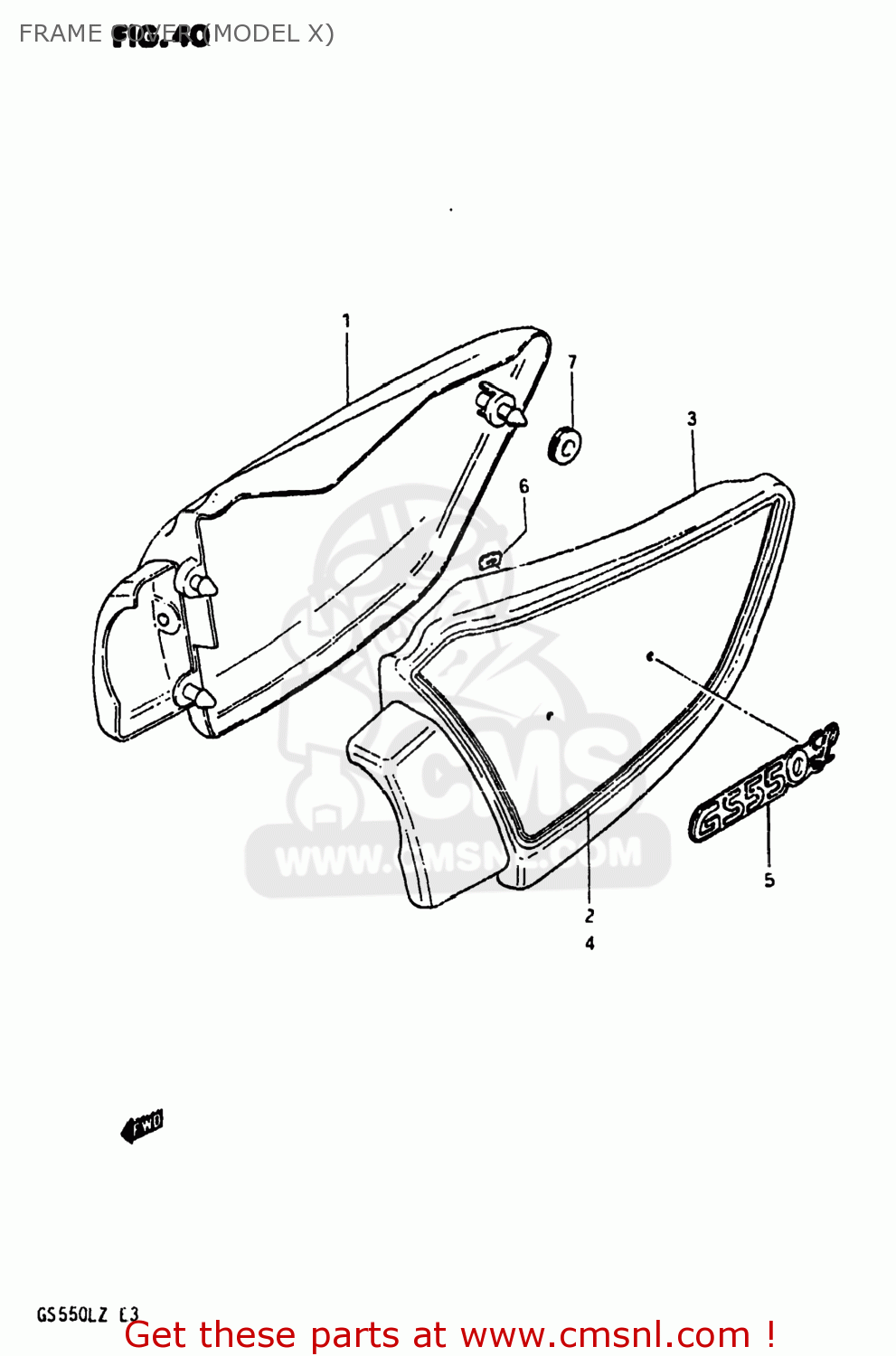

Frame cover (model x) diagram GS550L 1982 (Z) USA (E03)
FRAME COVER (MODEL X) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4710047810019
ref: 1-1
47110-47500
COVER,FRAME,RIGHT
€ 48.00
1-2
471004781010U
ref: 1-2
47110-47500
COVER,FRAME,RIGHT
€ 48.00
2
6813047500764
ref: 2
TAPE SET,FRAME COVER
€ 0.00
3-1
4720047810019
ref: 3-1
47210-47500
COVER ASSEMBLY,FRAME,LEFT
€ 66.00
3-2
472004781010U
ref: 3-2
47210-47500
COVER ASSEMBLY,FRAME,LEFT
€ 66.00
4
6814047500764
ref: 4
TAPE SET,FRAME COVER
€ 15.00
5
6813147500
ref: 5
EMBLEM,FRAME COVER
€ 32.50
6
0914803002
ref: 6
NUT
€ 3.00
7
0932008018
ref: 7
CUSHION
€ 4.00
