FRONT MASTER CYLINDER (MODEL X)
GS550L 1982 (Z) USA (E03)

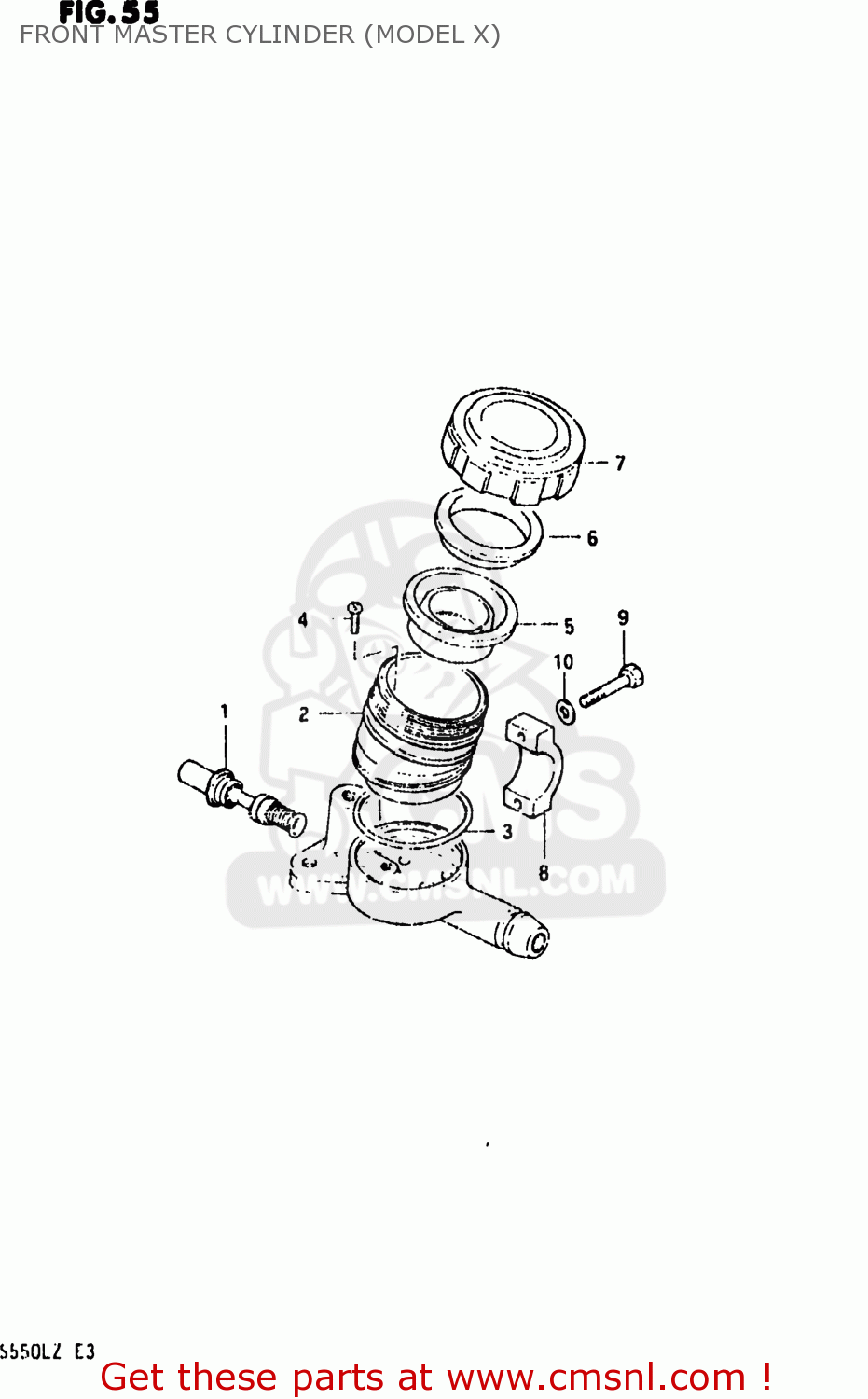

Front master cylinder (model x) diagram GS550L 1982 (Z) USA (E03)
FRONT MASTER CYLINDER (MODEL X) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5960047080
ref: 0
CYLINDER ASSEMBLY,MASTER
€ 129.00
1
5960033810
ref: 1
PISTON & CUP SET
€ 44.50
2
5968747050
ref: 2
RESERVOIR
€ 22.00
3
5968633620
ref: 3
O RING
€ 6.00
4
5968833620
ref: 4
SCREW,MASTER CYLINDER
€ 2.00
5
5966733620
ref: 5
DIAPHRAGM
€ 25.00
6
5966833620
ref: 6
PLATE
€ 6.00
7
5966933630
ref: 7
CAP,MASTER CYLINDER,REAR
€ 22.50
8
5967133620
ref: 8
HOLDER,MASTER CYLINDER
€ 5.50
9
0110706258
ref: 9
01500-06257
BOLT
€ 2.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
