REAR FENDER

GS550L 1982 (Z) USA (E03)

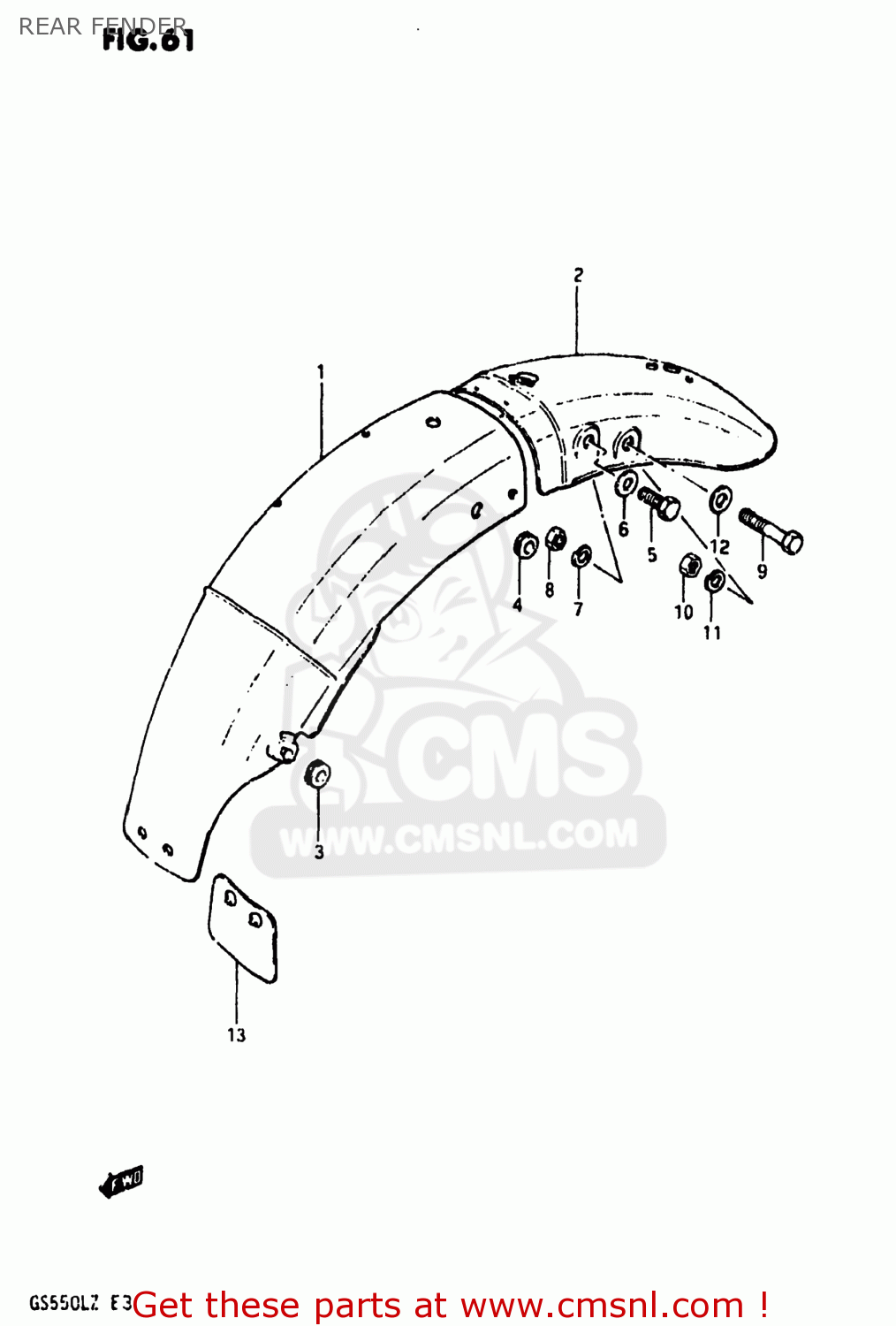

Rear fender diagram GS550L 1982 (Z) USA (E03)

REAR FENDER GS550L 1982 (Z) USA (E03)

REAR FENDER GS550L 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311247400
ref: 1

FENDER,REAR

€ 0.00

2

6311047231
ref: 2

FENDER,REAR

€ 138.50

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0932005006
ref: 4
09320-06504

CUSHION

€ 4.00

5

0110708168
ref: 5
01500-0816B

BOLT

€ 2.00

6

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

0831012088
ref: 8
08310-00087

NUT

€ 2.00

9

0120408657
ref: 9

BOLT

€ 3.00

10

0831022088
ref: 10
08310-00087

NUT 8MM

€ 2.00

11

0832121088
ref: 11
08321-01087

LOCK WASHER

€ 2.00

12

0832211088
ref: 12
08322-01087

WASHER

€ 2.00

13

6341131900
ref: 13

GUIDE,RR FENDER MUD

€ 8.00
