CYLINDER HEAD COVER (E.NO.234047~)
GS550L 1982 (Z) USA (E03)

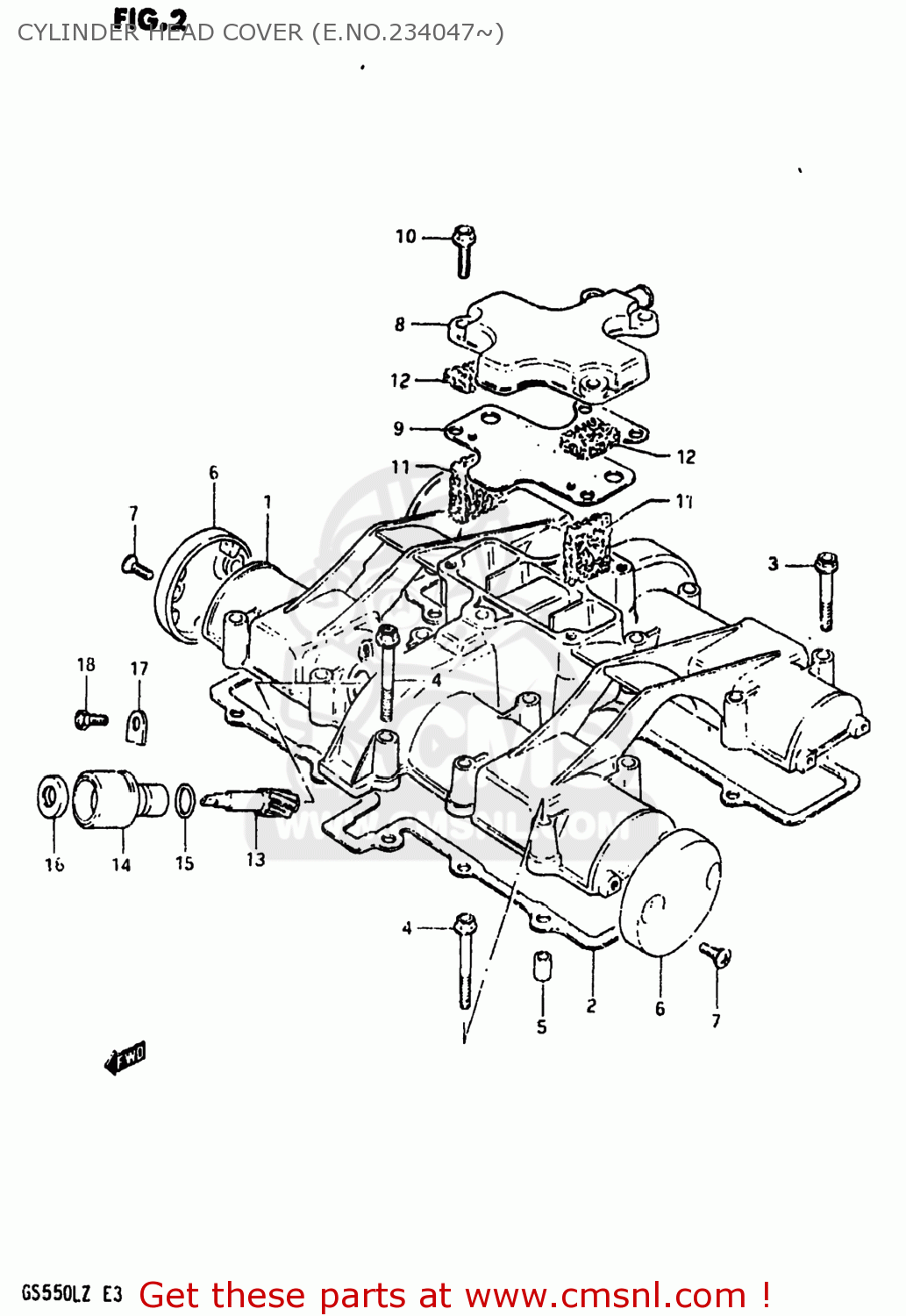

Cylinder head cover (e.no.234047~) diagram GS550L 1982 (Z) USA (E03)
CYLINDER HEAD COVER (E.NO.234047~) GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117147020
ref: 1
COVER,CYLINDER HEAD
€ 189.50
2
1117347020
ref: 2
11173-47031
GASKET,CYLINDER HEAD COVER (MCA)
€ 51.50
3
0151706408
ref: 3
01550-06407
BOLT
€ 2.50
4
0151706458
ref: 4
01550-06457
BOLT,UNDER
€ 2.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1117449000
ref: 6
CAP,CYLINDER HEAD COVER
€ 38.00
7
0912705013
ref: 7
SCREW(5X12)
€ 2.50
8
1117647012
ref: 8
11176-47042
COVER,BREATHER
€ 32.50
9
1117747001
ref: 9
11177-47001-H17
GASKET (MCA)
€ 19.50
10
0151706208
ref: 10
01550-06207
BOLT,REAR
€ 2.50
11
1118645000
ref: 11
11186-45001
COVER,BREATHER
€ 5.50
12
1118745000
ref: 12
11187-45001
SEPARATOR,OIL BREATHER
€ 6.50
13
2643147002
ref: 13
26431-47003
GEAR,TACHOMETER DRIVEN
€ 29.00
14
2644145000
ref: 14
26441-49000
SLEEVE,TACHOMETER DRIVE
€ 18.00
15
2645145000A
ref: 15
SEAL,TACHOMETER DRIVEN
€ 4.50
16
0928905002
ref: 16
SEAL,OIL(5X12X8)
€ 11.00
17
2644933000
ref: 17
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
18
0912805101
ref: 18
SCREW(5X12)
€ 1.50
