CRANKCASE COVER
GS550L 1982 (Z) USA (E03)

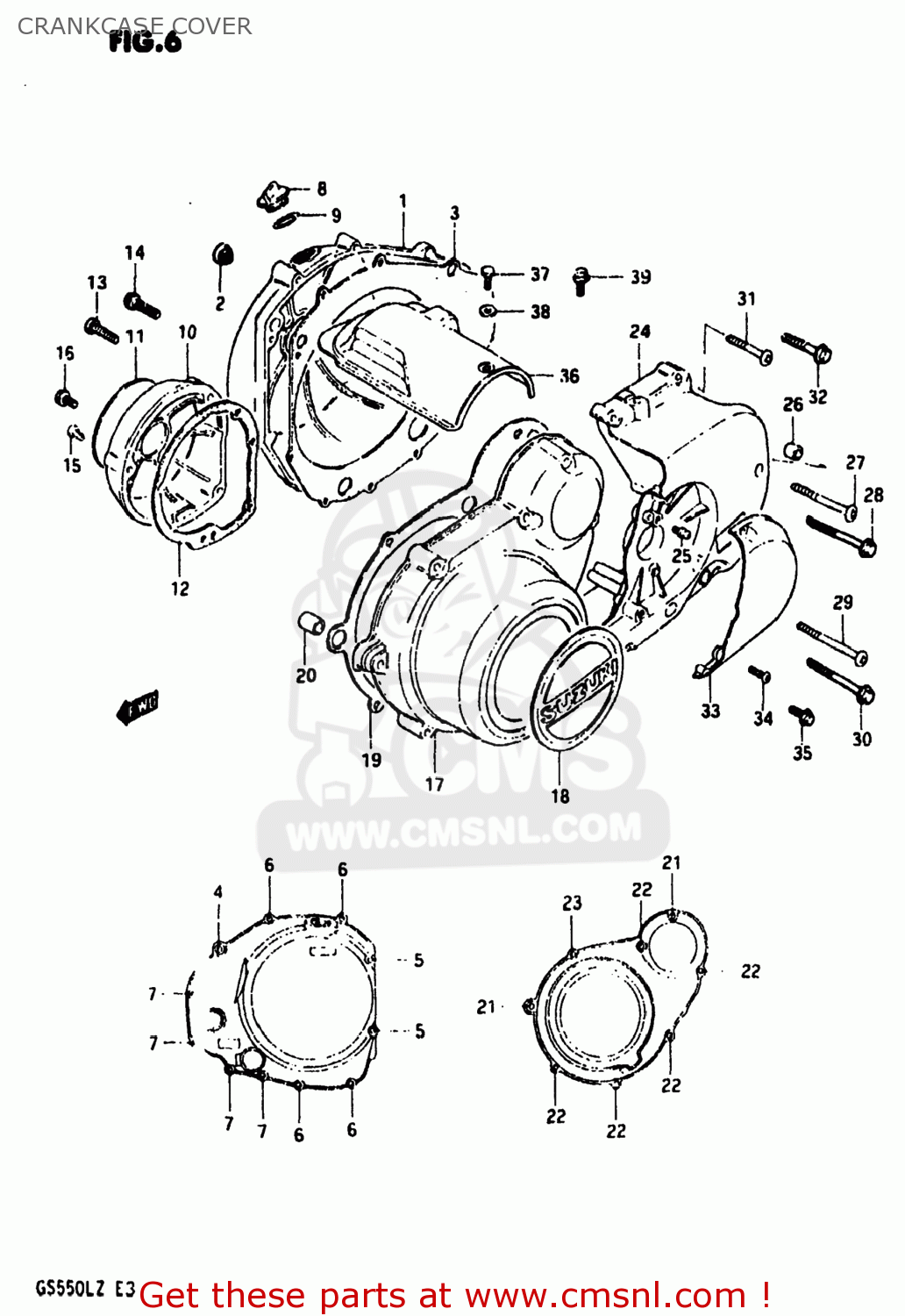

Crankcase cover diagram GS550L 1982 (Z) USA (E03)
CRANKCASE COVER GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134047010
ref: 1-1
11340-47011
COVER,CLUTCH
€ 132.50
1-2
1134047011
ref: 1-2
COVER,CLUTCH
€ 132.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148247000
ref: 3
11482-47000-H17
GASKET,CLUTCH COVER (MCA)
€ 17.00
4-1
0211206358
ref: 4-1
02112-06357
SCREW (6X35)
€ 2.50
4-2
0154706358
ref: 4-2
01547-06357
BOLT (6X35)
€ 2.50
5-1
0211206408
ref: 5-1
02112-06407
SCREW
€ 2.00
5-2
0154706408
ref: 5-2
01547-06407
BOLT (6X40)
€ 2.50
6-1
0211206258
ref: 6-1
02112-06257
SCREW
€ 2.00
6-2
0154706258
ref: 6-2
01547-06257
BOLT
€ 2.50
7-1
0211206208
ref: 7-1
02112-06207
SCREW
€ 2.00
7-2
0154706208
ref: 7-2
01547-06207
BOLT (6X20)
€ 2.50
8
0925930001
ref: 8
09200-30810
CAP
€ 8.50
9
0928032005
ref: 9
O RING(D:2.2,ID:32)
€ 2.00
10-1
1138147001
ref: 10-1
11381-47002
COVER,CONTACT BREAKER
€ 58.50
10-2
1138147002
ref: 10-2
COVER,CONTACT BREAKER
€ 58.50
11
6823547200
ref: 11
EMBLEM,CONTACT BREAKER COVER
€ 41.50
12
1149147000
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
€ 3.00
13
0211205308
ref: 13
02112-0530A
SCREW
€ 1.50
14
0154405308
ref: 14
01547-05307
BOLT (5*30)
€ 2.00
15
0211205168
ref: 15
02112-05167
SCREW
€ 2.50
16
0154405168
ref: 16
01547-05167
BOLT 5X16
€ 2.00
17-1
1135147000
ref: 17-1
11351-47001
COVER
€ 174.50
17-2
1135147001
ref: 17-2
COVER,MAGNETO
€ 174.50
18
6823345200
ref: 18
EMBLEM,MAGNETO COVER
€ 20.50
19
1148347000
ref: 19
11483-47000-H17
GASKET,MAGNETO COVER (MCA)
€ 16.50
20
0920613001
ref: 20
04211-13189
PIN
€ 2.50
21-1
0211206458
ref: 21-1
02112-06457
SCREW (6X45)
€ 2.00
21-2
0154706458
ref: 21-2
01547-06457
BOLT
€ 2.50
22-1
0211206408
ref: 22-1
02112-06407
SCREW
€ 2.00
22-2
0154706408
ref: 22-2
01547-06407
BOLT (6X40)
€ 2.50
23-1
0211206358
ref: 23-1
02112-06357
SCREW (6X35)
€ 2.50
23-2
0154706358
ref: 23-2
01547-06357
BOLT (6X35)
€ 2.50
24-1
1130047821
ref: 24-1
11300-47822
CRANKCASE SET
€ 104.50
24-2
1130047822
ref: 24-2
COVER SET,ENGINE SPROCKET
€ 104.50
25
0835111009
ref: 25
NIPPLE
€ 32.00
26
0421109129
ref: 26
PIN
€ 2.00
27
0211206908
ref: 27
02112-06907
SCREW
€ 3.00
28
0154706908
ref: 28
01547-0690B
BOLT
€ 3.00
29
0211206808
ref: 29
02112-06807
SCREW 6X80
€ 3.00
30
0154706808
ref: 30
01547-0680B
BOLT
€ 3.50
31
0211206308
ref: 31
02112-06307
SCREW 6X30
€ 2.50
32
0154706308
ref: 32
01547-06307
BOLT (6X30)
€ 2.50
33-1
1138747000
ref: 33-1
11387-47001
CAP,CLUTCH RELEASE ADJUST
€ 33.50
33-2
1138747001
ref: 33-2
CAP,CLUTCH RELEASE ADJUST
€ 33.50
34
0211205168
ref: 34
02112-05167
SCREW
€ 2.50
35
0154405168
ref: 35
01547-05167
BOLT 5X16
€ 2.00
36
1138247001
ref: 36
COVER,STARTER MOTOR
€ 19.00
37
0110405108
ref: 37
01500-0510B
BOLT
€ 1.50
38
0832221058
ref: 38
08322-01057
WASHER
€ 2.50
39
0154405088
ref: 39
01547-05087
BOLT (5*8)
€ 2.00
