BATTERY

GSX1100EX 1983 (D) (E02)

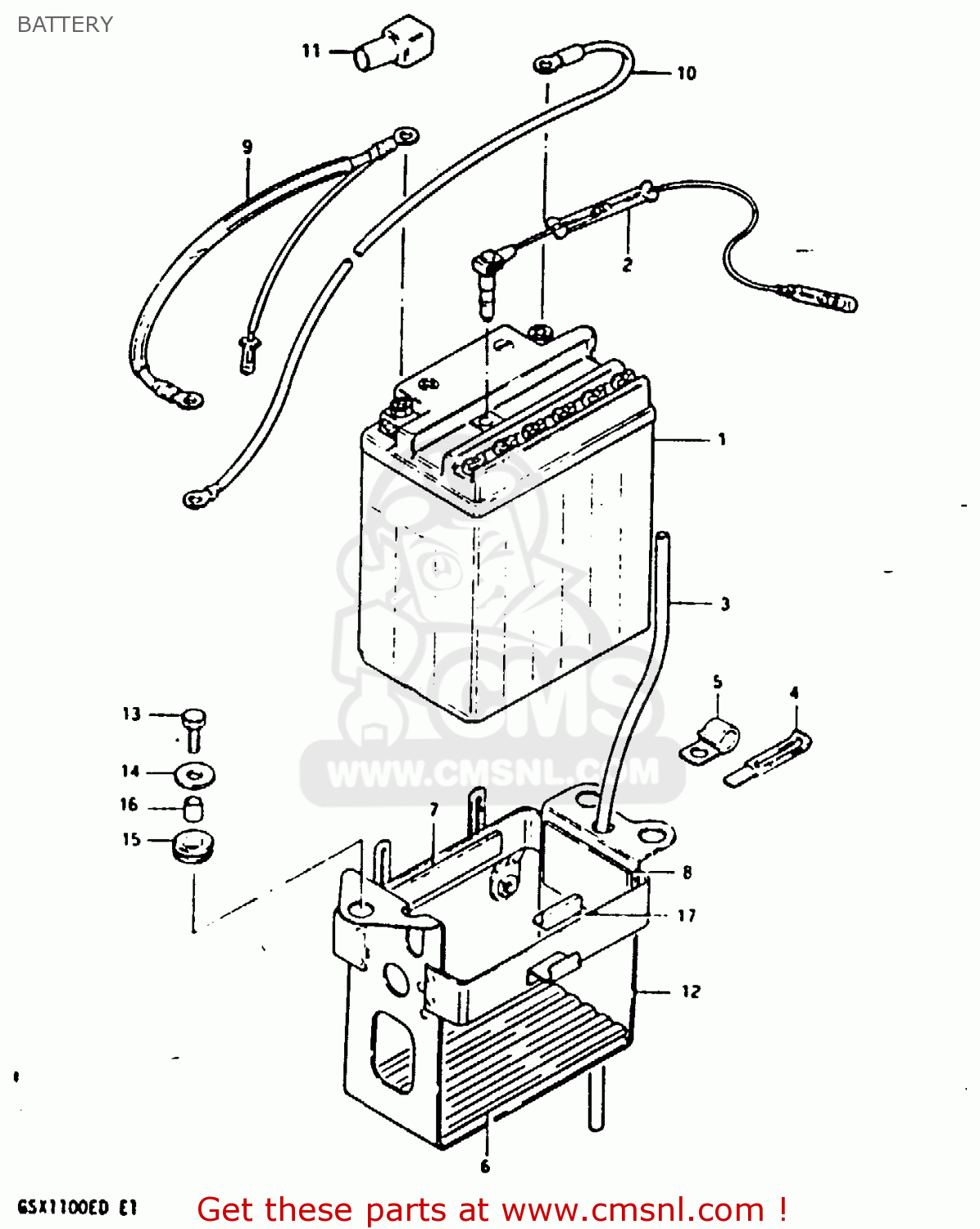

Battery diagram GSX1100EX 1983 (D) (E02)

BATTERY GSX1100EX 1983 (D) (E02)

BATTERY GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

3361049230
ref: 1

BATTERY ASSEMBLY (12V)

€ 129.00

2

3361749230
ref: 2

SENSOR,BATTERY LEVEL

€ 40.00

3

3368049000
ref: 3

HOSE,BATTERY EXHAUST

€ 7.00

4

0940406401
ref: 4

CLAMP L:35

€ 2.50

5

0940309303
ref: 5

CLAMP

€ 5.50

6

3365131000
ref: 6

PROTECTOR,BATTERY

€ 29.00

7

3365249000
ref: 7

PROTECTOR(20X90)X4

€ 2.00

8

3365137000
ref: 8
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

9

3382049000
ref: 9

WIRE,BATTERY PLUS

€ 16.00

10

3385003201
ref: 10

LEAD WIRE,BATTERY(-)

€ 8.50

11

3362445000
ref: 11

CAP,TERMINAL

€ 5.50

12

4154049500
ref: 12

HOLDER,BATTERY

€ 49.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14

WASHER

€ 2.00

15

0932008007
ref: 15

CUSHION

€ 4.00

16

0918006038
ref: 16

SPACER(6.1X9X7.5)

€ 2.00

17

4711702400
ref: 17

CUSHION,FRAME COVER

€ 2.00
