GENERATOR (GSX1100Z/EZ/D/ED/EXD/EXD)
GSX1100EX 1983 (D) (E02)

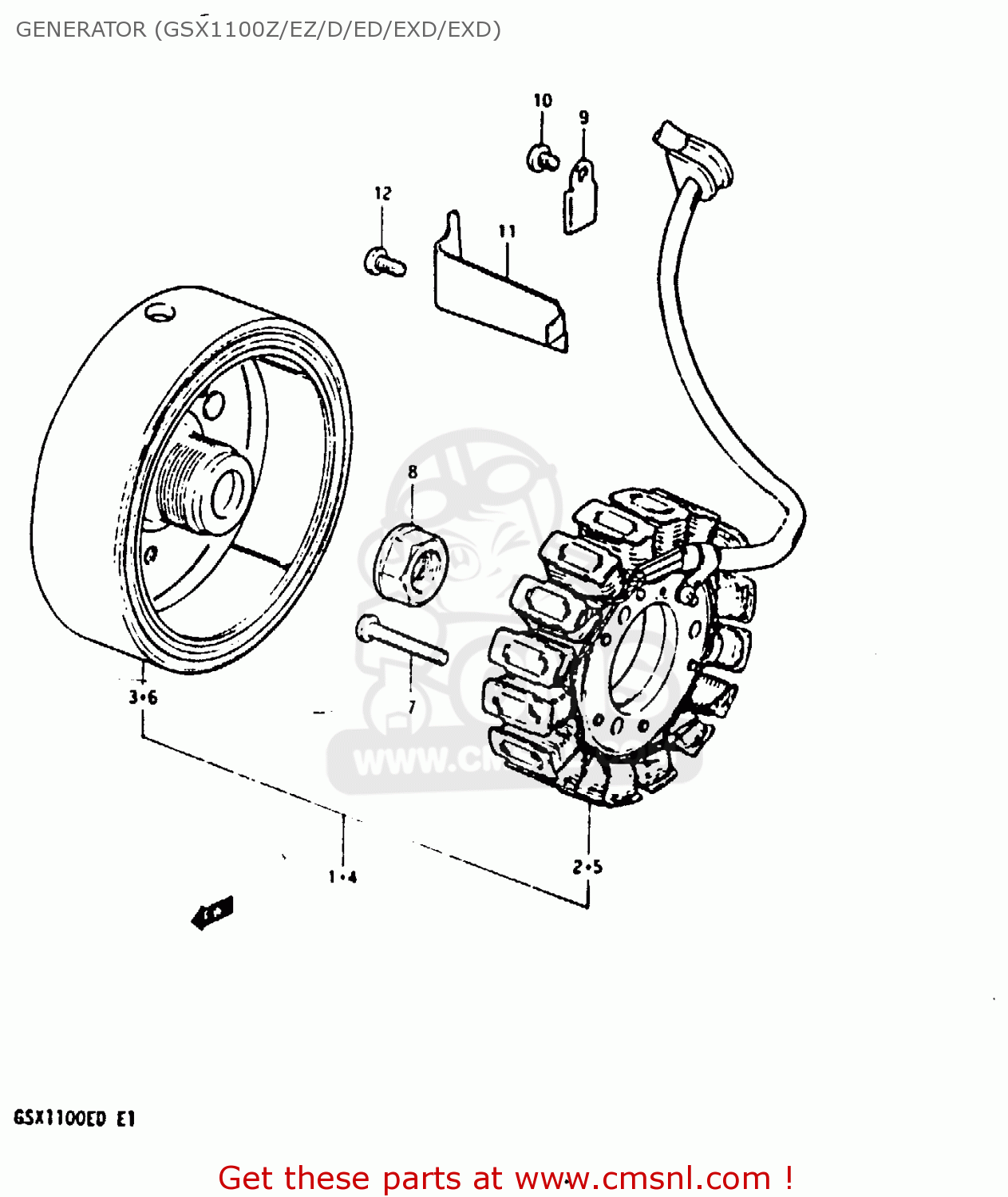

Generator (gsx1100z/ez/d/ed/exd/exd) diagram GSX1100EX 1983 (D) (E02)
GENERATOR (GSX1100Z/EZ/D/ED/EXD/EXD) GSX1100EX 1983 (D) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
3140049310
ref: 1
MODEL Z
GENERATOR ASSEMBLY
€ 481.50
2
3140149310
ref: 2
MODEL Z
STATOR ASSEMBLY
€ 481.50
3
3140249310
ref: 3
MODEL Z
ROTOR ASSY
€ 415.00
4
3140049320
ref: 4
MODEL D
GENERATOR ASSEMBLY
€ 405.50
5
3140149411
ref: 5
MODEL D
STATOR ASSEMBLY
€ 405.50
6
3140209300
ref: 6
MODEL D
ROTOR ASSEMBLY
€ 403.50
7
0211206308
ref: 7
SCREW 6X30
€ 2.50
8
3179249200
ref: 8
NUT,GENERATOR ROTOR
€ 10.00
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 1.50
10-1
0211205068
ref: 10-1
MODEL Z
SCREW
€ 4.00
10-2
0211205088
ref: 10-2
MODEL D
SCREW
€ 2.00
11
3149845000
ref: 11
CLAMP,GENERATOR LEAD WIRE
€ 2.00
12
0211206108
ref: 12
SCREW
€ 1.50
