SPEEDOMETER - TACHOMETER (GSX1100ESD)

GSX1100EX 1983 (D) (E02)

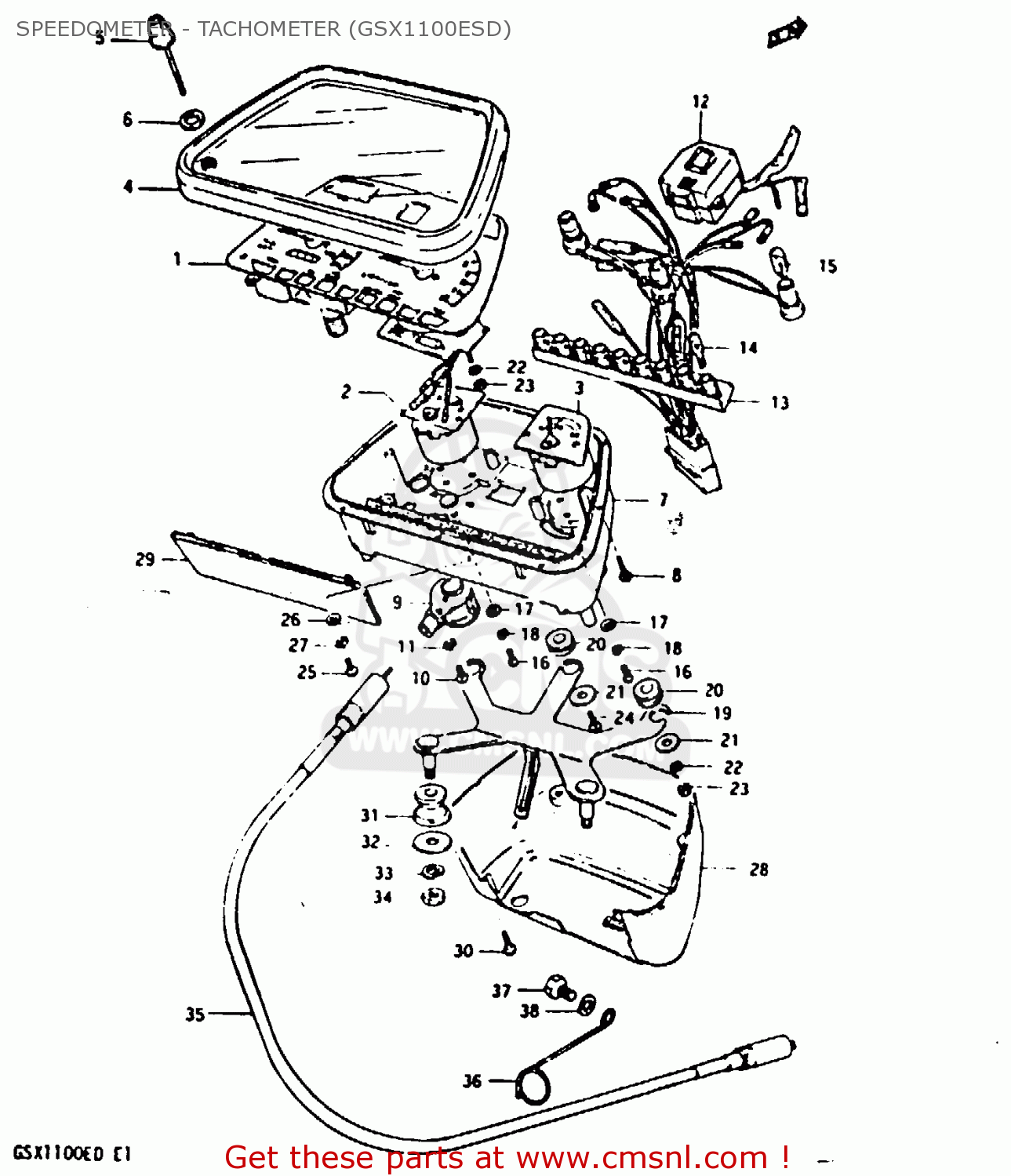

Speedometer - tachometer (gsx1100esd) diagram GSX1100EX 1983 (D) (E02)

SPEEDOMETER - TACHOMETER (GSX1100ESD) GSX1100EX 1983 (D) (E02)
SPEEDOMETER - TACHOMETER (GSX1100ESD) GSX1100EX 1983 (D) (E02)
SPEEDOMETER - TACHOMETER (GSX1100ESD) GSX1100EX 1983 (D) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
3412049920
ref: 1-1
SPEEDO & TACHOMETER (MILE/KILO)
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3432049910
ref: 2
METER,FUEL
3432049910
€ 119.50
3-1
3473049920
ref: 3-1
FOR MILE
METER,OIL TEMPERATURE
€ 0.00
3-2
NOTUSED
ref: 3-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
3415049910
ref: 4
HOOD,METER
3415049910
€ 83.00
5
3412449910
ref: 5
KNOB,TRIP METER
3412449910
€ 10.00
6
3499649910
ref: 6
SEAL,TRIP KNOB
3499649910
€ 4.00
7
3411149910
ref: 7
CASE,METER,INNER
3411149910
€ 60.50
8
0314103106
ref: 8
SCREW
0314103106
€ 1.50
9
3413149300
ref: 9
GEAR BOX,SPEEDOMETER
3413149300
€ 197.50
10
0211204108
ref: 10
SCREW 4X10
€ 2.00
11
0832121048
ref: 11
LOCK WASHER
0832121048
€ 2.00
12
3645049910
ref: 12
INDICATOR ASSEMBLY,GEAR POSITION
€ 220.00
13-1
3417049910
ref: 13-1
SOCKET UNIT,METER
€ 108.50
13-2
NOTUSED
ref: 13-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13-3
NOTUSED
ref: 13-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
0947112085
ref: 14
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
15
0947112082
ref: 15
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
16
0211203128
ref: 16
SCREW 3X12
€ 2.50
17
0832221038
ref: 17
WASHER
0832221038
€ 2.00
18
0832121038
ref: 18
LOCK WASHER
€ 1.50
19
3495049910
ref: 19
BRACKET,METER
3495049910
€ 35.50
20
3495528010
ref: 20
CUSHION
3495528010
€ 4.00
21
3418149300
ref: 21
WASHER,COMBINATION METER
€ 1.50
22
0832131048
ref: 22
WASHER
€ 2.00
23
0831022048
ref: 23
NUT 4MM
€ 2.00
24
0314104166
ref: 24
SCREW
€ 2.00
25
0211203108
ref: 25
SCREW
0211203108
€ 1.50
26
0832221038
ref: 26
WASHER
0832221038
€ 2.00
27
0832121038
ref: 27
LOCK WASHER
€ 1.50
28
3419349910
ref: 28
COVER,METER LWR
3419349910
€ 77.50
29
3419749910
ref: 29
PLATE,COVER
3419749910
€ 20.50
30
0314104165
ref: 30
SCREW
0314104165
€ 2.00
31
3495631001
ref: 31
CUSHION,METER BRACKET
3495631001
€ 4.50
32
0916008057
ref: 32
WASHER (8.5X20X1.6)
0916008057
€ 2.00
33
0832121085
ref: 33
LOCK WASHER
€ 2.50
34
0831011085
ref: 34
NUT
€ 1.50
35
3491009300
ref: 35
CABLE ASSEMBLY,SPEEDOMETER
3491009300
€ 34.00
36
3493845100
ref: 36
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
37
0110706168
ref: 37
BOLT, UPPER
€ 3.00
38
0832221068
ref: 38
WASHER
0832221068
€ 2.00
