GSX1100EX 1983 (D) (E02)

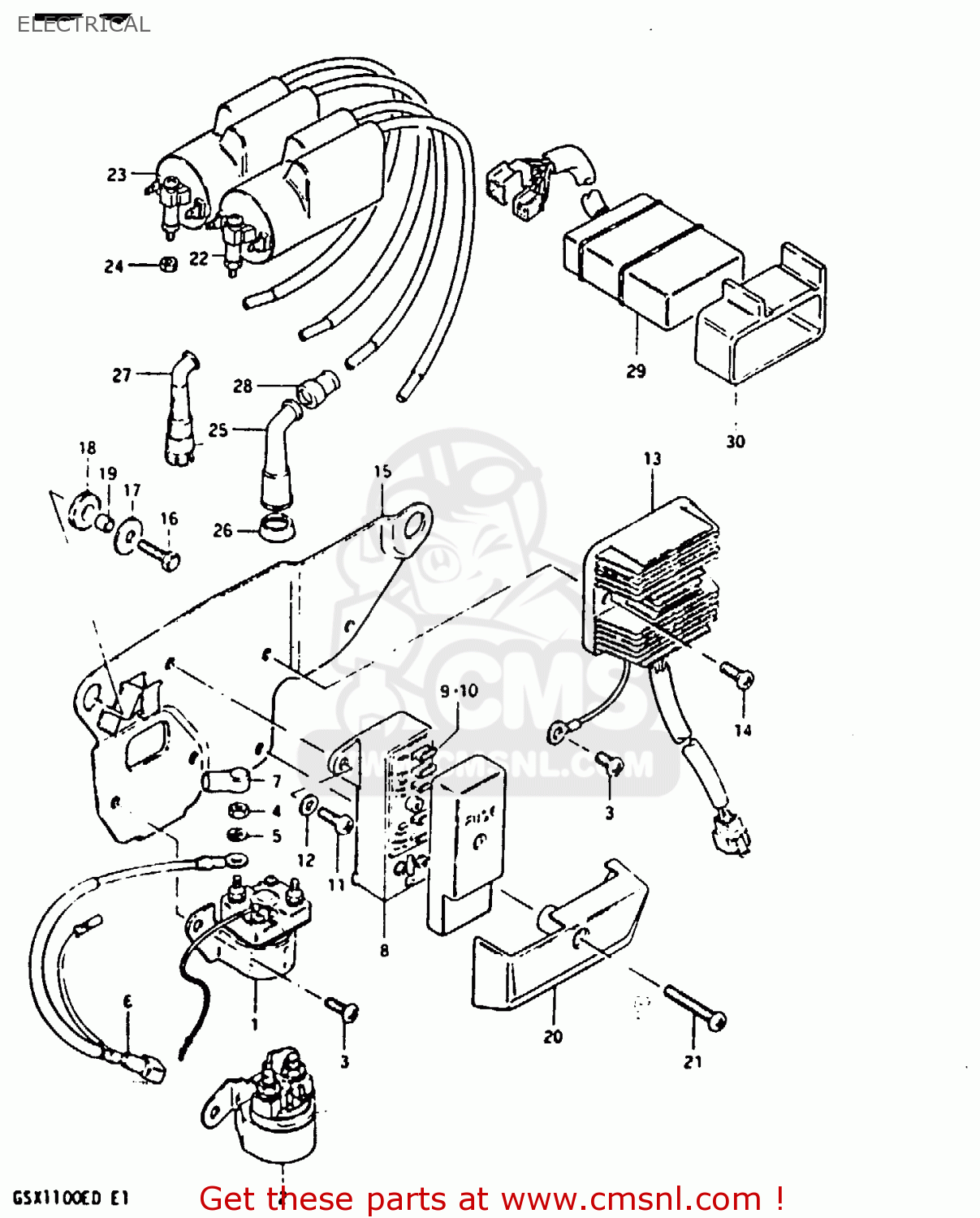

Electrical diagram GSX1100EX 1983 (D) (E02)
ELECTRICAL GSX1100EX 1983 (D) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
3180033400
ref: 2
GSX1100ESD
RELAY ASSEMBLY,STARTING MOTOR
€ 89.00
3
0211206108
ref: 3
SCREW
€ 1.50
4
0831022068
ref: 4
NUT 6MM
€ 2.50
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6-1
3385044110
ref: 6-1
MODEL Z
CORD,BATTERY MINUS
€ 8.50
6-2
3385049002
ref: 6-2
MODEL D
WIRE,STARTER MOTOR LEAD
€ 8.50
7
3186135100
ref: 7
CAP,STARTER RELAY
€ 4.50
8
3674049400
ref: 8
BOX ASSEMBLY,FUSE
€ 69.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0948115101
ref: 10
FUSE(15A)
€ 1.50
11
0211206168
ref: 11
SCREW
€ 2.50
12
0832221068
ref: 12
WASHER
€ 2.00
13
3280049430
ref: 13
RECTIFIER ASSEMBLY
€ 380.50
14
0211206128
ref: 14
SCREW 6X12
€ 2.00
15-1
4741049310
ref: 15-1
HOLDER COMP,ELECTRONIC PARTS
€ 10.00
15-2
NOTUSED
ref: 15-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0916006063
ref: 17
WASHER (6.5X22X1.6)
€ 2.00
18
0932008013
ref: 18
CUSHION
€ 4.00
19
0918007005
ref: 19
SPACER (7X9X7)
€ 2.50
20
4741949301
ref: 20
COVER,ELECTRIC PARTS HOLDER
€ 5.50
21
0211206358
ref: 21
SCREW (6X35)
€ 2.50
22
3341049210
ref: 22
COIL ASSEMBLY,IGNITION
€ 182.00
23
3342049210
ref: 23
COIL ASSEMBLY,IGNITION
€ 182.00
24
0831011068
ref: 24
NUT
€ 2.50
25
3351045010
ref: 25
CAP ASSY,SPARK PLUG
€ 23.00
26
3354132410
ref: 26
SEAL,SPARK PLUG
€ 7.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
3354298000
ref: 28
SEAL,SPARK PLU
€ 4.50
29
3886049500
ref: 29
RELAY,LAMP OUTAGE WARNING
€ 115.00
30
3886149500
ref: 30
STAY,LAMP OUTAGE INDICATOR
€ 7.00
