FRONT DAMPER (GSX1100ESD)
GSX1100EX 1983 (D) (E02)

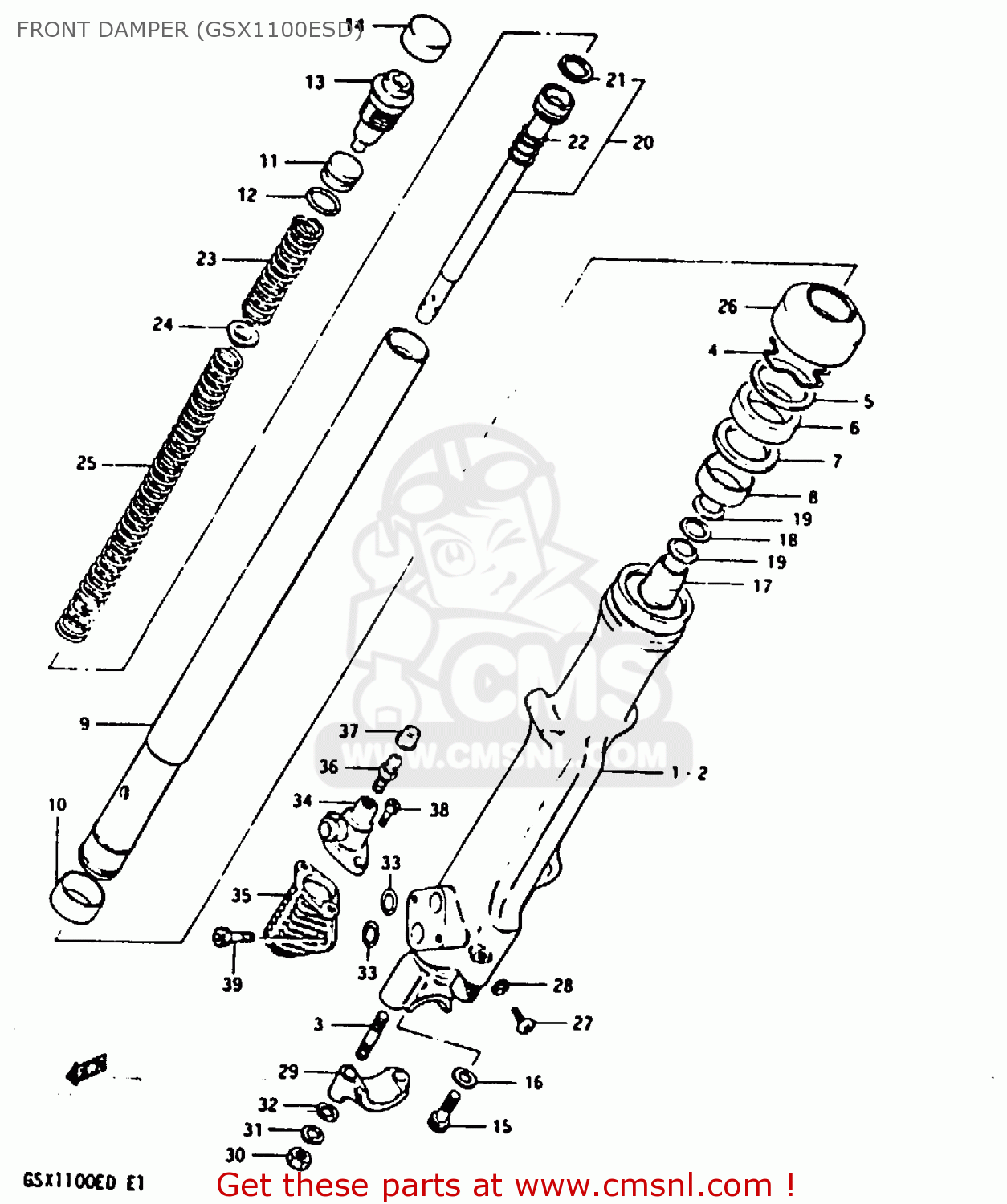

Front damper (gsx1100esd) diagram GSX1100EX 1983 (D) (E02)
FRONT DAMPER (GSX1100ESD) GSX1100EX 1983 (D) (E02)
×
prices are in EUR
ref
part #
description
quantity
0
5110349511
ref: 0
DUMPER ASSY, RH
€ 0.00
0
5110449511
ref: 0
DUMPER ASSY, LH
€ 562.50
1
511304955015T
ref: 1
OUTER TUBE, RH
€ 258.50
2
511404955015T
ref: 2
OUTER TUBE, LH
€ 0.00
3
0141108308
ref: 3
STUD 8X30
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
€ 7.00
6
5115349001
ref: 6
OIL SEAL,FRONT FORK
€ 16.50
7
5115849500
ref: 7
WASHER
€ 4.00
8
5116749500
ref: 8
METAL,SLIDE
€ 10.50
9
5111049560
ref: 9
INNER TUBE
€ 257.00
10
5112149500
ref: 10
METAL,FRONT FORK PISTON
€ 17.50
11
5117245110
ref: 11
PISTON,FREE
€ 10.50
12
5111745110
ref: 12
O-RING
€ 4.00
13
5135149200
ref: 13
CAP
€ 59.00
14
5118949300
ref: 14
CAP,RUBBER
€ 9.00
15
5114716510
ref: 15
BOLT,FORK CYLINDER(10X25)
€ 3.50
16
5114841310
ref: 16
GASKET (NAS)
€ 2.50
17
5119545420
ref: 17
PIECE,OIL LOCK
€ 15.50
18
5112345420
ref: 18
WASHER
€ 3.50
19
5112545420
ref: 19
SPRING,LEAF
€ 3.50
20
5114649510
ref: 20
CYLINDER
€ 103.00
21
5119649000
ref: 21
RING,PISTON
€ 9.00
22
5117749200
ref: 22
SPRING,FORK REBOUND
€ 7.00
23
5118449540
ref: 23
SPRING
€ 3.50
24
5117216510
ref: 24
GUIDE,FRONT FORK SPRING
€ 0.00
25
5117149540
ref: 25
SPRING
€ 31.00
26
5117349002
ref: 26
SEAL,DUST
€ 13.00
27
0211204088
ref: 27
SCREW
€ 1.50
28
5118303010
ref: 28
GASKET,DRAIN,PLUG (NAS)
€ 3.00
29
5113249500291
ref: 29
HOLDER,AXLE
€ 24.50
30
0831011085
ref: 30
NUT
€ 1.50
31
0832121085
ref: 31
LOCK WASHER
€ 2.50
32
0832221085
ref: 32
WASHER
€ 1.50
33
5179944130
ref: 33
O RING
€ 5.00
34
5179011330
ref: 34
PLANGER SET,MODULATOR
€ 122.00
35
5177045920
ref: 35
VALVE SET,MODULATOR
€ 94.50
36
5177844130
ref: 36
BREATHER,AIR
€ 12.50
37
5177944130
ref: 37
CAP,BREADER
€ 6.00
38
5175311330
ref: 38
BOLT, MODULATOR (5X12)
€ 2.50
39
5179644130
ref: 39
BOLT,FRONT FORK
€ 3.00
