RIGHT HANDLE SWITCH (MODEL D)

GSX1100EX 1983 (D) (E02)

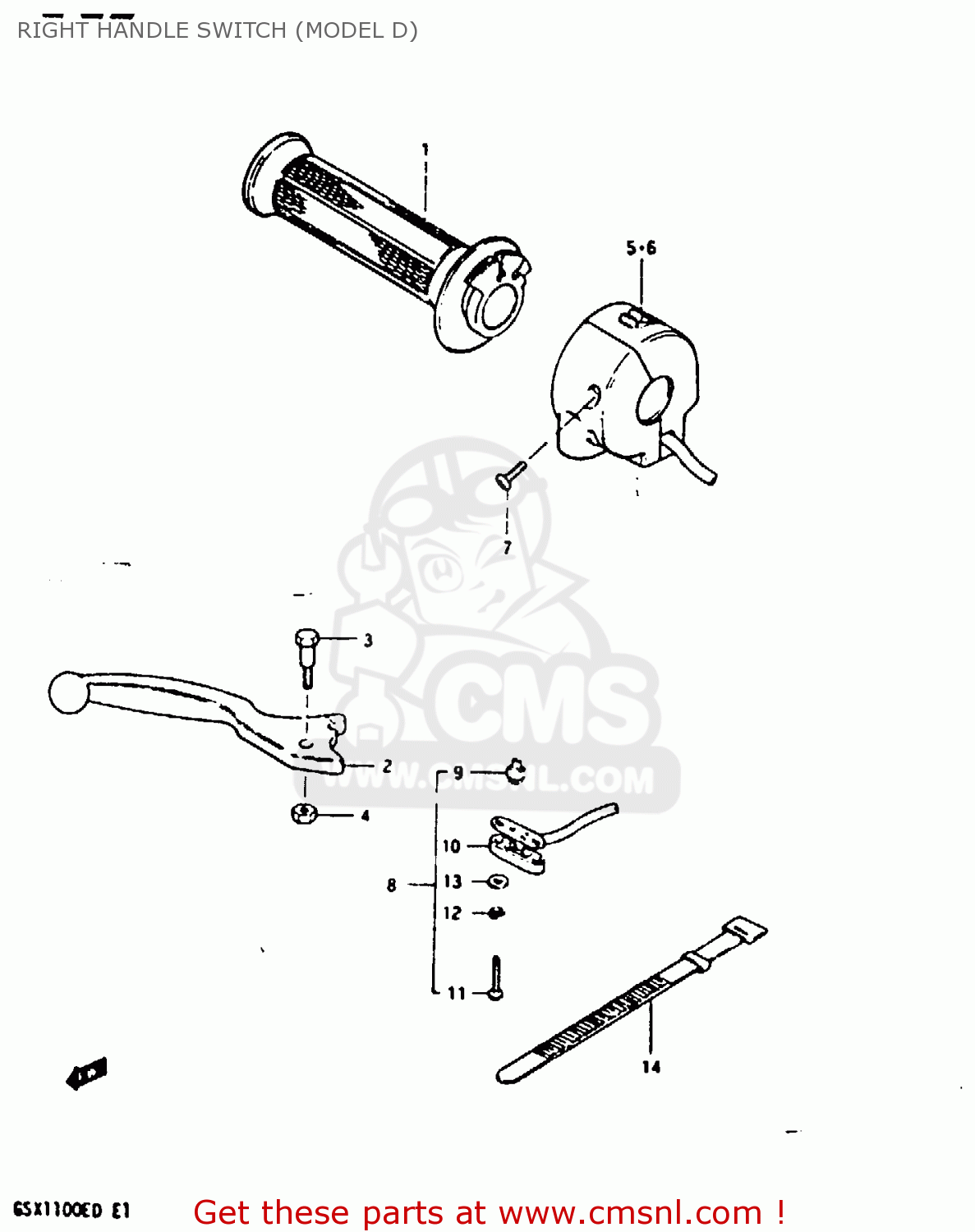

Right handle switch (model d) diagram GSX1100EX 1983 (D) (E02)

RIGHT HANDLE SWITCH (MODEL D) GSX1100EX 1983 (D) (E02)
RIGHT HANDLE SWITCH (MODEL D) GSX1100EX 1983 (D) (E02)
RIGHT HANDLE SWITCH (MODEL D) GSX1100EX 1983 (D) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
5711049500
ref: 1-1
GRIP,THROTTLE
5711049500
€ 26.00
1-2
5711049510
ref: 1-2
GRIP,THROTTLE
5711049510
€ 33.00
2
5742049101
ref: 2
LEVER,BRAKE
5742049101
€ 36.50
3
5743118621
ref: 3
BOLT
5743118621
€ 8.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5-1
3720049511
ref: 5-1
SWITCH ASSY, HANDLE RH (FLAT)
€ 130.00
5-2
3720049541
ref: 5-2
SWITCH ASSY,HANDLE,R
3720049541
€ 130.00
6-1
NOTUSED
ref: 6-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6-2
3720049541
ref: 6-2
GSX1100ESD
SWITCH ASSY,HANDLE,R
3720049541
€ 130.00
6-3
NOTUSED
ref: 6-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
3759149210
ref: 7
SCREW
€ 2.50
8
5746049300
ref: 8
SWITCH ASSEMBLY
5746049300
€ 40.00
9
5746518601
ref: 9
CONTACT,SWITCH
5746518601
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
11
0912503105
ref: 11
SCREW
0912503105
€ 2.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
0832221038
€ 2.00
14
0940712402
ref: 14
CLAMP(L:120)
0940712402
€ 3.00
