GSX1100EX 1983 (D) (E02)

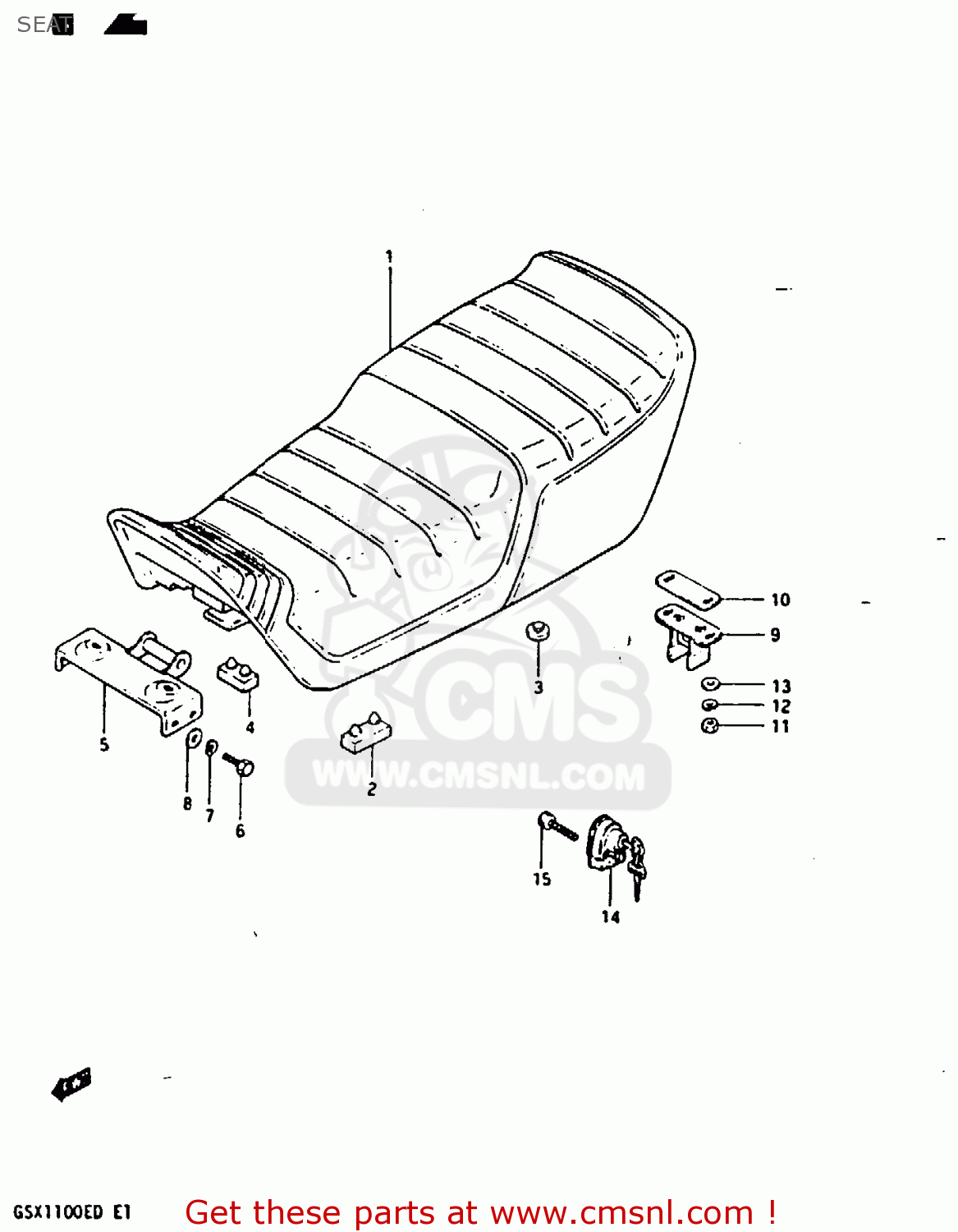

Seat diagram GSX1100EX 1983 (D) (E02)
SEAT GSX1100EX 1983 (D) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004950050C
ref: 1-1
MODEL Z
SEAT ASSY (BLACK)
€ 524.50
1-2
451004950150C
ref: 1-2
MODEL D
SEAT ASSY (BLACK)
€ 524.50
1-3
451004950248H
ref: 1-3
GSX1100ESD
SEAT ASSY (BLACK)
€ 271.50
2
0932108009
ref: 2
CUSHION
€ 4.00
3
0932110007
ref: 3
CUSHION
€ 4.50
4
0932108010
ref: 4
CUSHION
€ 4.00
5
4527049500
ref: 5
PLATE,SEAT HOOK
€ 12.50
6
0110405108
ref: 6
BOLT
€ 1.50
7
0832121058
ref: 7
LOCK WASHER
€ 2.00
8
0832221058
ref: 8
WASHER
€ 2.50
9
4521044101
ref: 9
STRIKER,SEAT LOCK
€ 32.50
10
4521744100
ref: 10
SHIM,SEAT LOCK STRIKER
€ 4.50
11
0831022068
ref: 11
NUT 6MM
€ 2.50
12
0832121068
ref: 12
LOCK WASHER
€ 2.50
13
0832221068
ref: 13
WASHER
€ 2.00
14
9570034210
ref: 14
LOCK ASSY,HELMET
€ 59.00
15
0910605008
ref: 15
BOLT 5X25
€ 2.00
