REAR MASTER CYLINDER

GSX1100EX 1983 (D) (E02)

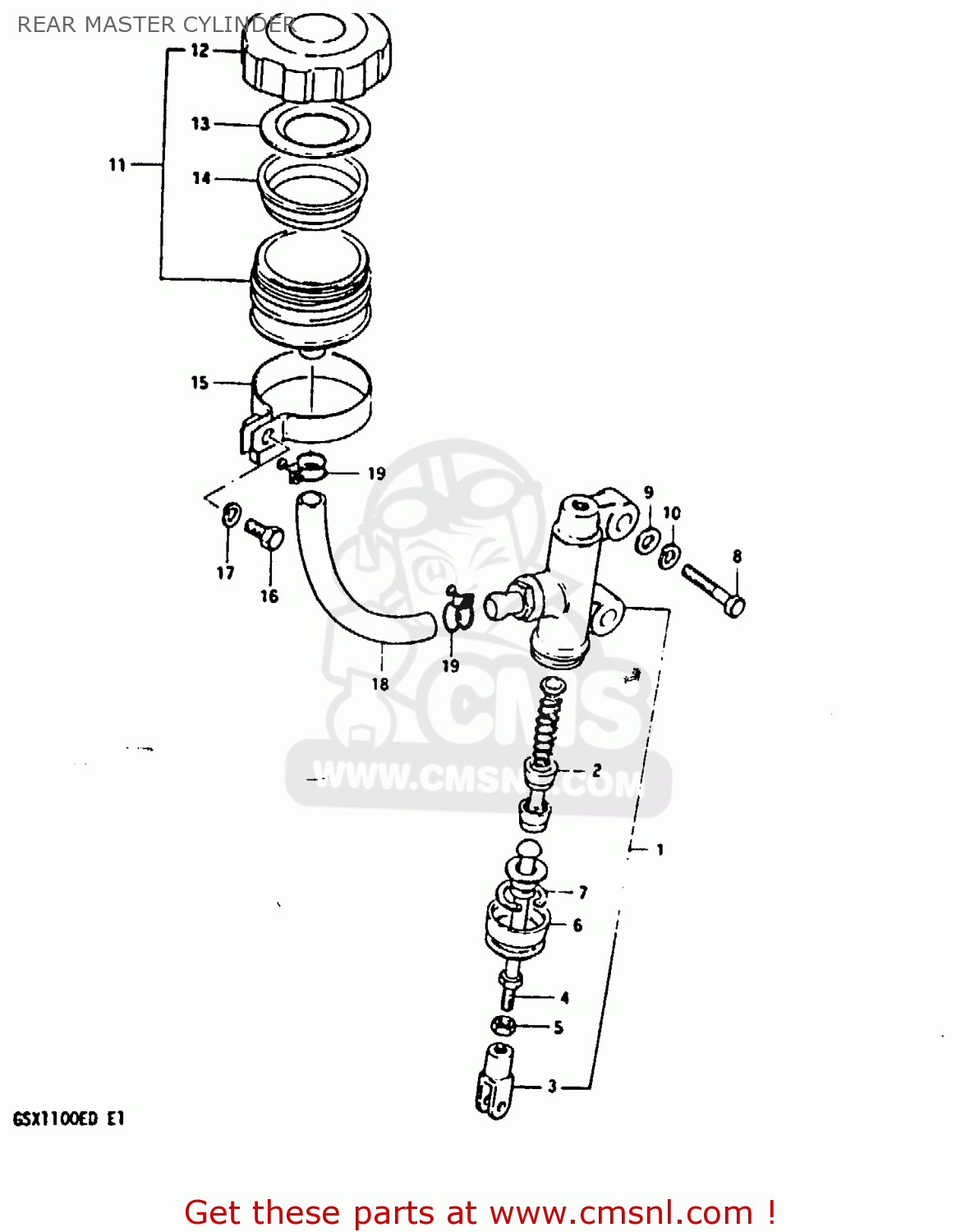

Rear master cylinder diagram GSX1100EX 1983 (D) (E02)

REAR MASTER CYLINDER GSX1100EX 1983 (D) (E02)

REAR MASTER CYLINDER GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

6960047003
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

3

6969234300
ref: 3

YOKE

€ 11.00

4

6967045001
ref: 4

ROD,PUSH

€ 18.50

5

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966918605
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15-1

0940251601
ref: 15-1
MODEL Z

CLAMP

€ 6.50

15-2

0940251602
ref: 15-2
MODEL D

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973149500
ref: 18

HOSE,RESERVOIR TANK

€ 0.00

19

0940016302
ref: 19

CLAMP

€ 4.50
