LEFT HANDLE SWITCH (MODEL Z)

GSX1100EX 1983 (D) (E02)

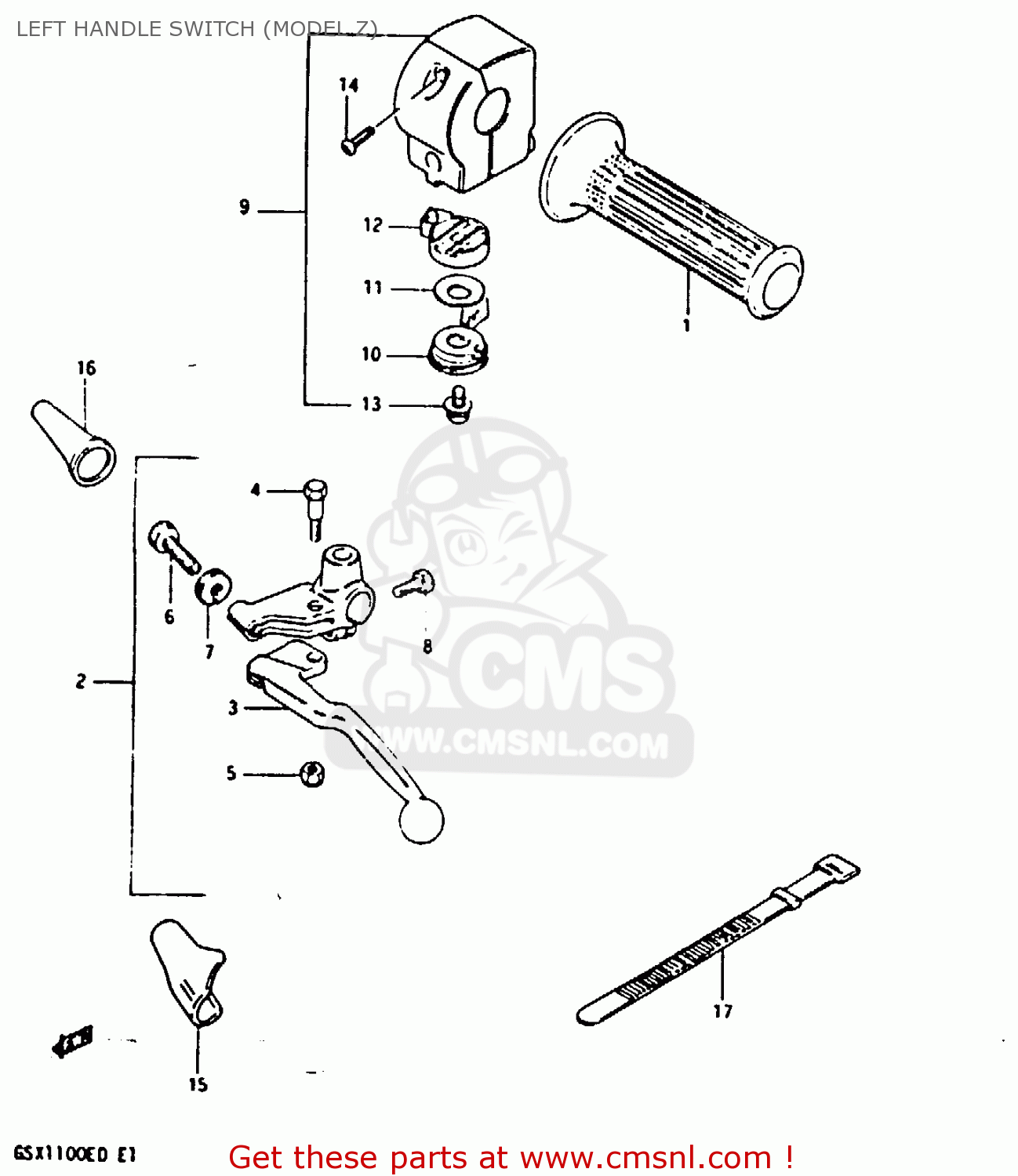

Left handle switch (model z) diagram GSX1100EX 1983 (D) (E02)

LEFT HANDLE SWITCH (MODEL Z) GSX1100EX 1983 (D) (E02)

LEFT HANDLE SWITCH (MODEL Z) GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1-1

5721144100
ref: 1-1

GRIP,LEFT

€ 9.00

1-2

5721145030
ref: 1-2

GRIP,LEFT

€ 18.50

2

5750049102
ref: 2

LEVER ASSEMBLY

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743111011
ref: 4

BOLT,LEVER

€ 6.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

5745118621
ref: 8

BOLT

€ 3.00

9-1

3740049511
ref: 9-1
FLAT TYPE

SWITCH ASSY, HANDLE LH

€ 165.00

9-2

3740049551
ref: 9-2
NEUTRAL TYPE

SWITCH ASSY, HANDLE LH

€ 165.00

9-3

NOTUSED
ref: 9-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9-4

NOTUSED
ref: 9-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

5872127503
ref: 10

LEVER,STARTER

€ 8.00

11

5872203010
ref: 11

WASHER,ADJUSTER

€ 3.00

12

3757249440
ref: 12

BODY,CHOCK

€ 15.50

13

3757449440
ref: 13

SCREW,CHOKE LE

€ 2.50

14

0211205168
ref: 14

SCREW

€ 2.50

15

5766131000
ref: 15

COVER,CLUTCH LEVER

€ 5.50

16

5827331000
ref: 16

BOOT,CLUTCH CABLE

€ 2.50

17

0940712402
ref: 17

CLAMP(L:120)

€ 3.00
