HEADLAMP (GSX1100ESD)

GSX1100EX 1983 (D) (E02)

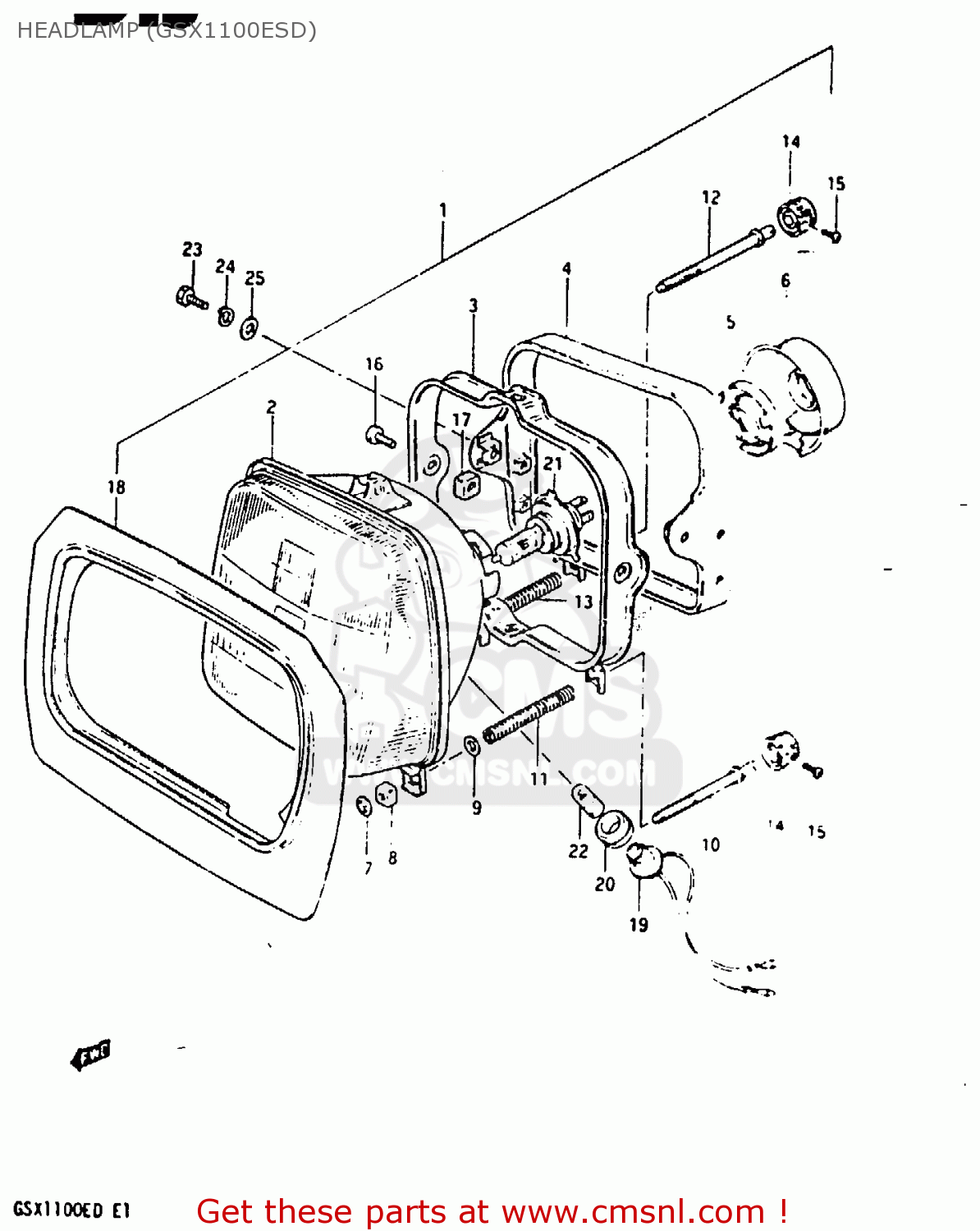

Headlamp (gsx1100esd) diagram GSX1100EX 1983 (D) (E02)

HEADLAMP (GSX1100ESD) GSX1100EX 1983 (D) (E02)
HEADLAMP (GSX1100ESD) GSX1100EX 1983 (D) (E02)
HEADLAMP (GSX1100ESD) GSX1100EX 1983 (D) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
3510049520999
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
NOTUSED
ref: 2-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-2
3512149520
ref: 2-2
E2
UNIT
3512149520
€ 150.00
2-3
NOTUSED
ref: 2-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
3513049500
ref: 3
RING,MOUNTING
3513049500
€ 30.00
4
3514149500
ref: 4
HOUSING,LAMP UNIT
€ 31.00
5
3513649200
ref: 5
HOLDER
3513649200
€ 8.50
6
3517349200
ref: 6
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
7
3515249330
ref: 7
NUT,HEADLAMP ADJUSTER
€ 2.00
8
3515249500
ref: 8
NUT,HEADLAMP ADJUSTER
3515249500
€ 2.50
9
3515749320
ref: 9
WASHER
€ 2.00
10
3515149500
ref: 10
SCREW,HEADLAMP ADJUST
€ 16.50
11
3515449500
ref: 11
SPRING
3515449500
€ 4.50
12
3515149320
ref: 12
SCREW,ADJUSTING
3515149320
€ 16.50
13
3515449320
ref: 13
SPRING
3515449320
€ 3.00
14
3516149320
ref: 14
KNOB,ADJUSTER
3516149320
€ 6.00
15
0211203108
ref: 15
SCREW
0211203108
€ 1.50
16
0211205128
ref: 16
SCREW
€ 2.50
17
3513545900
ref: 17
NUT
3513545900
€ 2.50
18
3512949500
ref: 18
SHADE
3512949500
€ 21.00
19
3611830691
ref: 19
E2, E4, E15, E16, E1
SOCKET
3611830691
€ 12.00
20
3611622630
ref: 20
E2, E4, E15, E16, E1
JOINT,RUBBER
3611622630
€ 5.00
21-1
0947112060
ref: 21-1
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
21-2
NOTUSED
ref: 21-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
0947112063
ref: 22
E2, E4, E15, E16, E1
BULB(12V4W)
0947112063
€ 6.00
23
0110706208
ref: 23
BOLT
0110706208
€ 2.00
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
0832221068
ref: 25
WASHER
0832221068
€ 2.00
