REAR WHEEL (GSX1100EZ)

GSX1100EX 1983 (D) (E02)

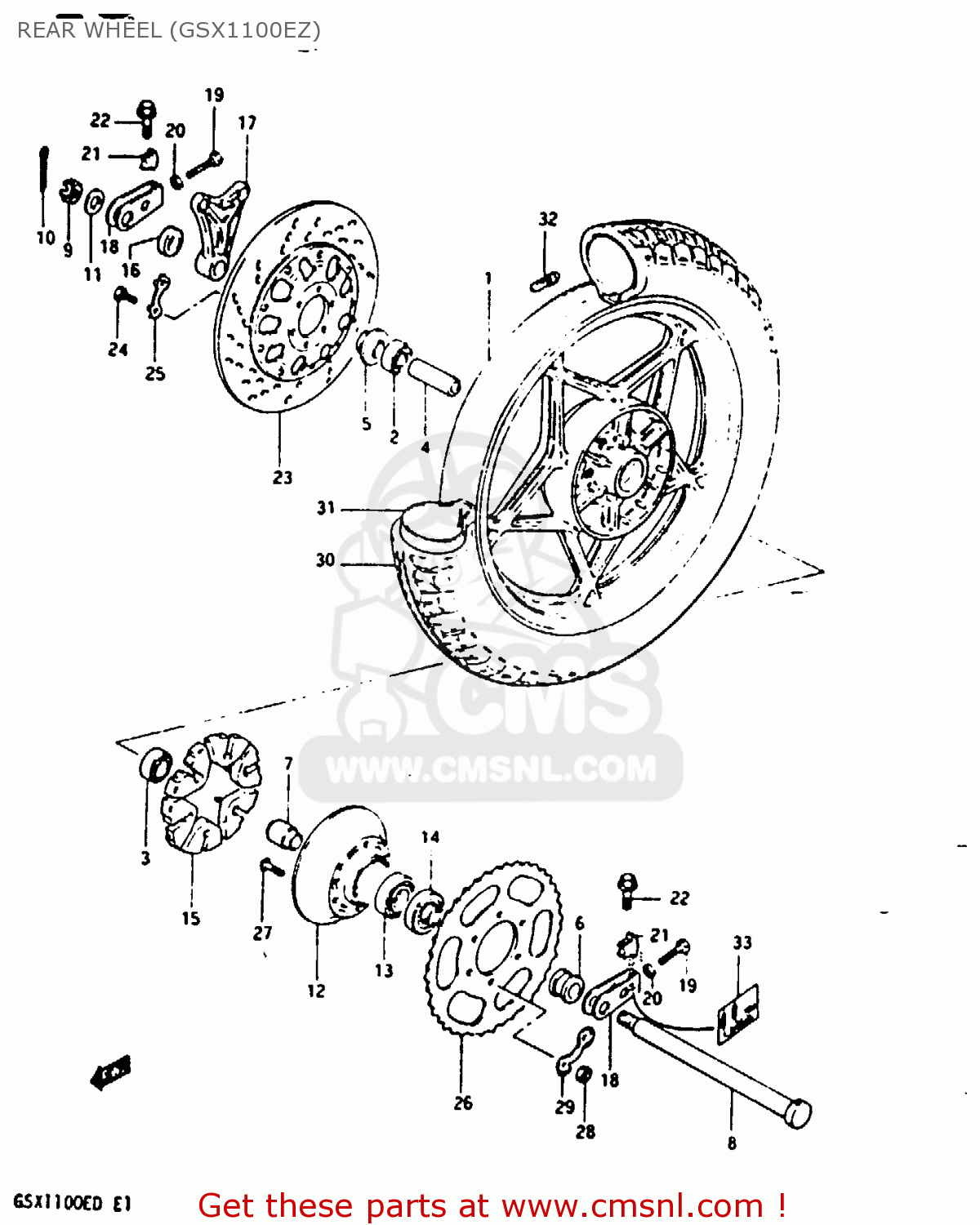

Rear wheel (gsx1100ez) diagram GSX1100EX 1983 (D) (E02)

REAR WHEEL (GSX1100EZ) GSX1100EX 1983 (D) (E02)

REAR WHEEL (GSX1100EZ) GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

641114900112U
ref: 1

CASTING WHEEL,REAR 2.50-

€ 627.00

2

0813362047
ref: 2

BEARING WHEEL REAR(20X47X14)

€ 22.50

3

0815362047
ref: 3

BEARING, LH

€ 21.00

4

0918020062
ref: 4

SPACER(20.5X28X88)

€ 11.50

5

6474045001
ref: 5

SPACER,REAR AXLE

€ 15.00

6

0918020054
ref: 6

SPACER(20X33X28.3)

€ 13.00

7

6473331000
ref: 7

SPACER,REAR HUB BEARING

€ 20.00

8

6471149000
ref: 8

AXLE,REAR

€ 59.00

9

0831431188
ref: 9

NUT 18MM

€ 5.00

10

0411140308
ref: 10

PIN,COTTER

€ 1.50

11

0916019008
ref: 11

WASHER(19X34X4)

€ 3.00

12

6461131001
ref: 12

DRUM,REAR SPROCKET MOUNT

€ 140.00

13

0811363050
ref: 13

BEARING

€ 21.50

14

0928533001
ref: 14

SEAL,OIL(33X62X7)

€ 20.00

15

6465131000
ref: 15

ABSORBER,REAR HUB SHOCK

€ 9.50

16

0918020060
ref: 16

SPACER(20X38X12)

€ 6.50

17

6972147011
ref: 17

BRACKET,RR,CALIPER

€ 29.00

18

6141045201
ref: 18

ADJUSTER,CHAIN

€ 50.00

19

0910408018
ref: 19

BOLT 8X50

€ 3.00

20

0831012088
ref: 20

NUT

€ 2.00

21

6143331000
ref: 21

SUPPORTER,CHAIN ADJUST

€ 22.50

22

0151708608
ref: 22

BOLT

€ 3.50

23

5921018450
ref: 23

DISC,RR BRAKE

€ 446.00

24

0910008094
ref: 24

BOLT(8X30)

€ 2.50

25

0916908016
ref: 25

WASHER

€ 3.50

26

6451149001
ref: 26

SPROCKET,REAR

€ 114.00

27

0911910002
ref: 27

BOLT

€ 3.50

28

0914010026
ref: 28

NUT

€ 2.00

29

0916910007
ref: 29

WASHER

€ 7.50

30

6510049510
ref: 30
IRC

TIRE

€ 258.00

31

6520049010
ref: 31

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

32-1

5541149300
ref: 32-1

BALANCER,WHEEL

€ 7.00

32-2

5541249300
ref: 32-2

BALANCER,WHEEL (30G)

€ 4.00

33

6837749000
ref: 33

LABEL,CHAIN WEAR INDICATOR

€ 3.50
