SPEEDOMETER - TACHOMETER (GSX1100Z/EZ/D/ED/XD/EXD)

GSX1100EX 1983 (D) (E02)

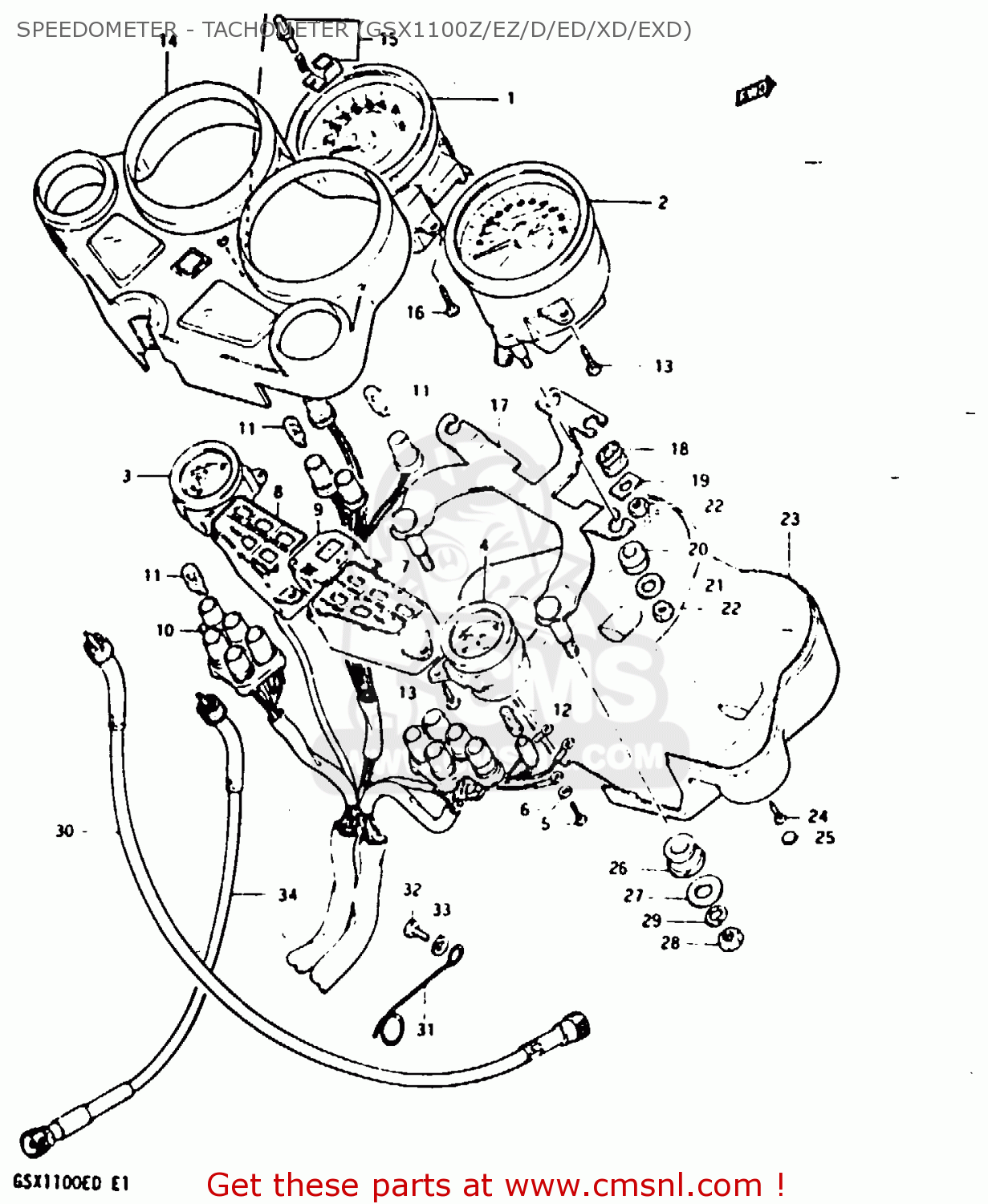

Speedometer - tachometer (gsx1100z/ez/d/ed/xd/exd) diagram GSX1100EX 1983 (D) (E02)

SPEEDOMETER - TACHOMETER (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100EX 1983 (D) (E02)
SPEEDOMETER - TACHOMETER (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100EX 1983 (D) (E02)
SPEEDOMETER - TACHOMETER (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100EX 1983 (D) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
3411049530
ref: 1-1
SPEEDOMETER (MILE/KILO)
€ 216.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3421049500
ref: 2
METER,TACHOMETER
€ 333.50
3
3432045720
ref: 3
METER,FUEL
3432045720
€ 81.50
4-1
3473045750
ref: 4-1
MODEL Z
METER,OIL TEMPERATURE
€ 68.00
4-2
3473045751
ref: 4-2
MODEL D
METER,OIL TEMPERATURE
€ 68.00
4-3
NOTUSED
ref: 4-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-4
NOTUSED
ref: 4-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
0211203068
ref: 5
SCREW
0211203068
€ 2.00
6
0832221038
ref: 6
WASHER
0832221038
€ 2.00
7
3633049500
ref: 7
CASE,PILOT LAMP
3633049500
€ 34.50
8-1
3636049500
ref: 8-1
CASE,PILOT LAMP
€ 35.50
8-2
NOTUSED
ref: 8-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
3645049500
ref: 9
INDICATOR ASSEMBLY,GEAR POSITION
3645049500
€ 202.50
10-1
3417049500
ref: 10-1
SOCKET,COMBINATION METER
€ 109.50
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10-3
NOTUSED
ref: 10-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
0947112082
ref: 11
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
12
0947112023
ref: 12
BULB(12V2W,STANLEY,A1272J)
0947112023
€ 8.50
13
0321104208
ref: 13
SCREW
0321104208
€ 1.50
14
3415045720
ref: 14
HOOD,METER
3415045720
€ 105.00
15
3412445720
ref: 15
KNOB,TRIP METER
3412445720
€ 8.50
16
0913204005
ref: 16
FROM 03211-04168
SCREW
€ 2.00
17
3495045720
ref: 17
BRACKET,COMBINATION METER
3495045720
€ 41.00
18
3499545720
ref: 18
CUSHION,METER
€ 3.00
19
3418245720
ref: 19
WASHER,METER
€ 3.50
20
3499645720
ref: 20
CUSHION,METER
€ 5.00
21
3418130520
ref: 21
WASHER,METER
3418130520
€ 1.50
22
0831022058
ref: 22
NUT
€ 2.50
23
3419345720
ref: 23
COVER,METER,UNDER
3419345720
€ 62.00
24
0311104128
ref: 24
SCREW
€ 1.50
25
3419845720
ref: 25
CAP,METER LOWER CASE
3419845720
€ 3.50
26
3495631001
ref: 26
CUSHION,METER BRACKET
3495631001
€ 4.50
27
0916008002
ref: 27
WASHER (8.5X29X1.6)
0916008002
€ 2.00
28
0831012088
ref: 28
NUT
0831012088
€ 2.00
29
0832121088
ref: 29
LOCK WASHER
0832121088
€ 2.00
30
3491045123
ref: 30
CABLE ASSY,SPEEDOMETER
3491045123
€ 24.00
31
3493845100
ref: 31
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
32
0110706168
ref: 32
BOLT, UPPER
€ 3.00
33
0832221068
ref: 33
WASHER
0832221068
€ 2.00
34
3494044111
ref: 34
CABLE ASSEMBLY,TACHOMETER
3494044111
€ 49.00
