FRONT BRAKE HOSE (GSX1100Z/D/XD)

GSX1100EX 1983 (D) (E02)

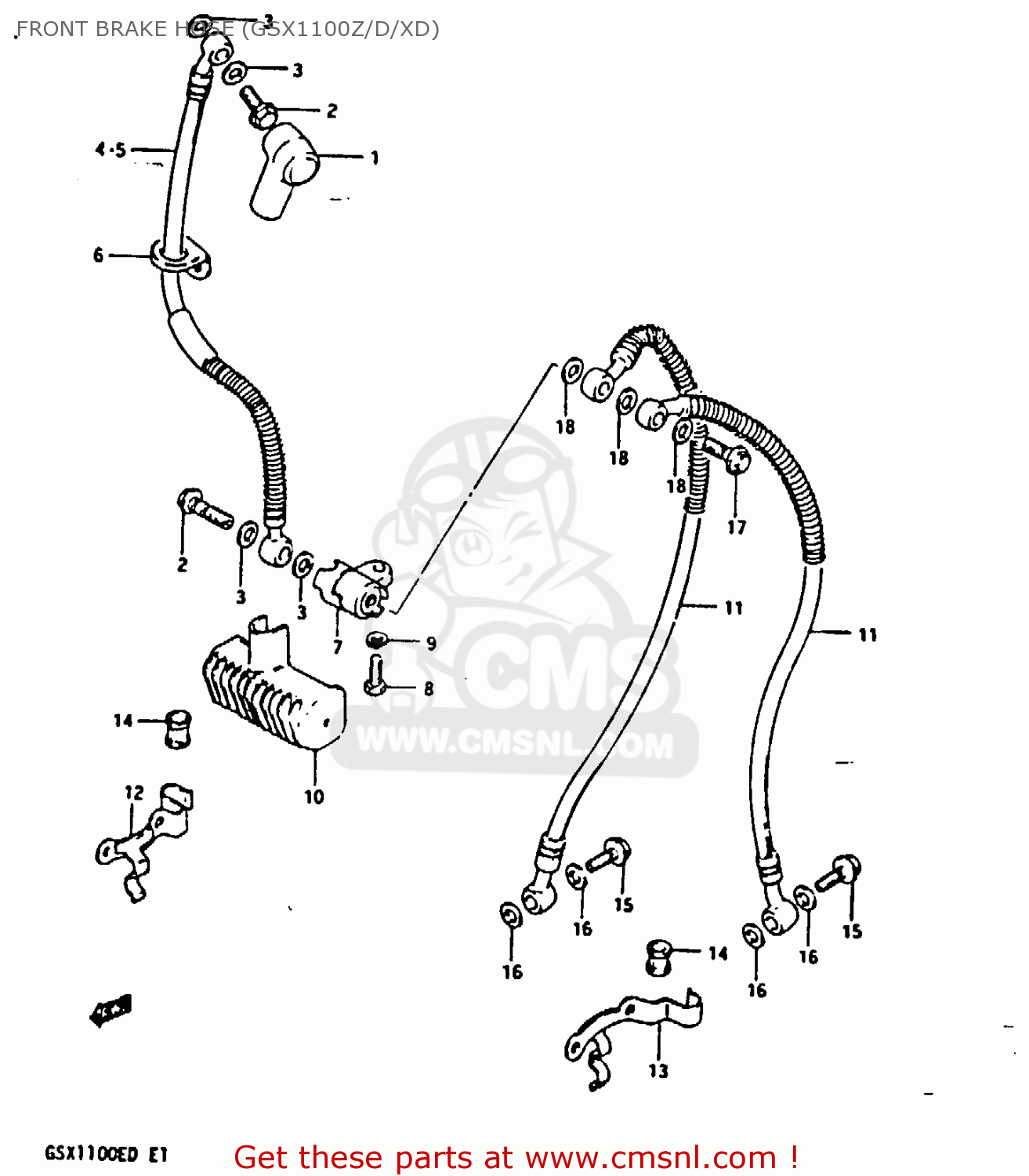

Front brake hose (gsx1100z/d/xd) diagram GSX1100EX 1983 (D) (E02)

FRONT BRAKE HOSE (GSX1100Z/D/XD) GSX1100EX 1983 (D) (E02)

FRONT BRAKE HOSE (GSX1100Z/D/XD) GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2-1

0936010007
ref: 2-1
MODEL Z

BOLT,UNION

€ 6.50

2-2

0936010009
ref: 2-2
MODEL D

BOLT UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4

5948049531
ref: 4

HOSE,FRONT BRAKE

€ 49.50

5

5948049520
ref: 5

HOSE,FRONT BRAKE

€ 31.50

6

5924331010
ref: 6

GUIDE,BRAKE HOSE NO.1

€ 3.00

7

5949149500
ref: 7

JOINT,BRAKE HOSE

€ 0.00

8

0110706208
ref: 8

BOLT

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

5949534300
ref: 10

COVER,BRAKE HOSE JOINT

€ 17.00

11

5924045000
ref: 11

HOSE,FRONT BRAKE

€ 66.50

12

5926845900
ref: 12

CLAMP, HOSE RH

€ 10.00

13

5927145900
ref: 13

CLAMP,FRONT BRAKE HOSE

€ 9.50

14

5924449000
ref: 14

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

15-1

0936010007
ref: 15-1
MODEL Z

BOLT,UNION

€ 6.50

15-2

0936010009
ref: 15-2
MODEL D

BOLT UNION

€ 6.50

16

0916110005
ref: 16

WASHER

€ 2.00

17

0936010008
ref: 17

BOLT,UNION

€ 7.00

18

0916110005
ref: 18

WASHER

€ 2.00
