CYLINDER HEAD
GSX1100EX 1983 (D) (E02)

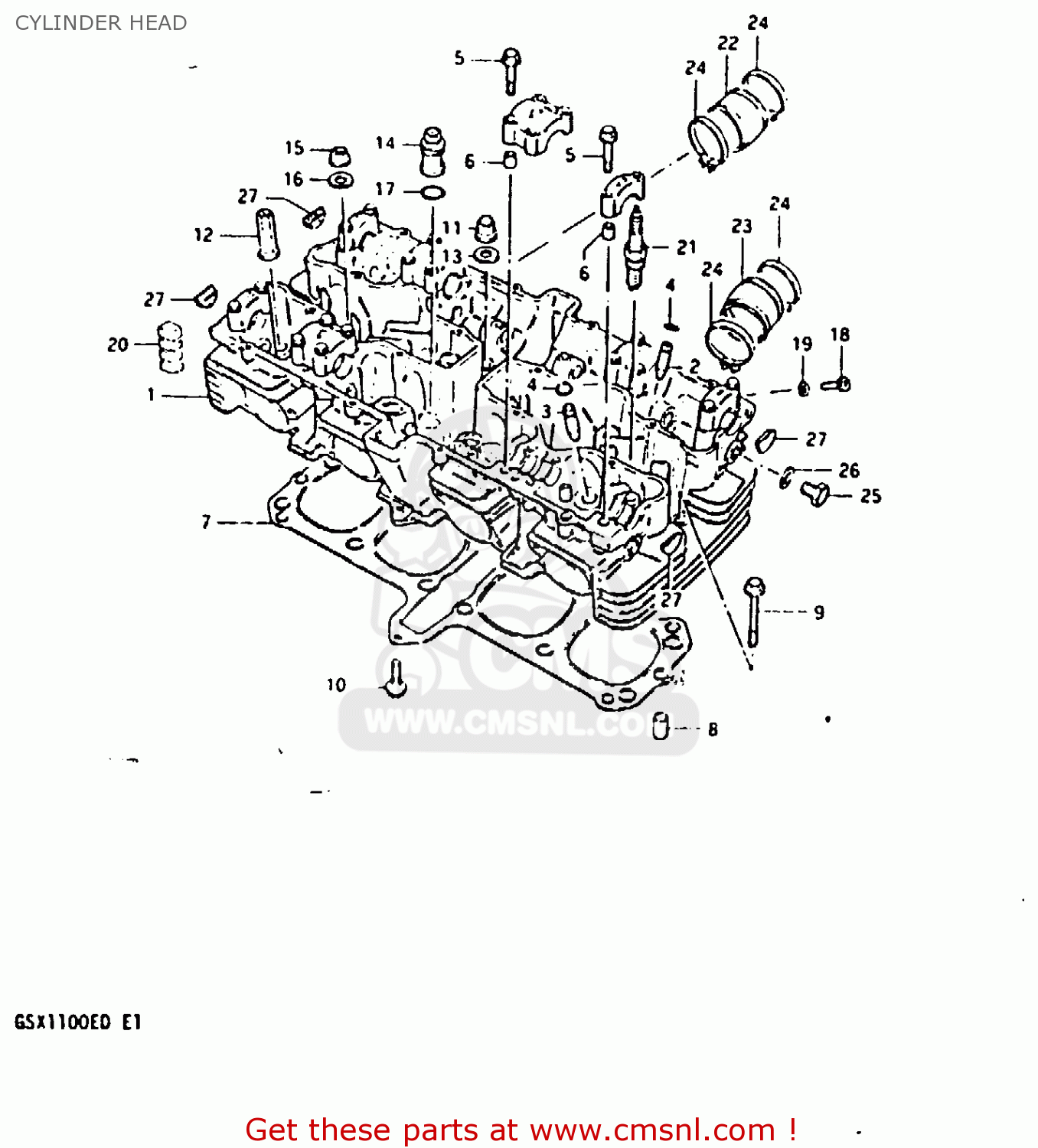

Cylinder head diagram GSX1100EX 1983 (D) (E02)
CYLINDER HEAD GSX1100EX 1983 (D) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110049250
ref: 1-1
MODEL Z
HEAD ASSY,CYLINDER
€ 1,678.00
1-2
1110049260
ref: 1-2
MODEL D
HEAD ASSY,CYLINDER
€ 1,624.50
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
€ 19.50
3
1111549290
ref: 3
GUIDE,INTAKE VALVE
€ 19.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7-1
1114149202
ref: 7-1
MODEL Z
GASKET,CYLINDER HEAD (NAS)
€ 120.50
7-2
NOTUSED
ref: 7-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-3
1114149202
ref: 7-3
MODEL D:E2, E4, E15,
GASKET,CYLINDER HEAD (NAS)
€ 120.50
8
0421111189
ref: 8
PIN
€ 2.00
9-1
0151706558
ref: 9-1
MODEL Z
BOLT
€ 2.50
9-2
0151706555
ref: 9-2
MODEL D
BOLT 6X55
€ 2.00
10-1
0151706308
ref: 10-1
MODEL Z
BOLT
€ 2.00
10-2
0151706305
ref: 10-2
MODEL D
BOLT 6X30
€ 2.50
11
0915910026
ref: 11
NUT
€ 6.00
12
0915910029
ref: 12
NUT
€ 59.50
13
0916810017
ref: 13
GASKET(10.5X22X2) (NAS)
€ 3.50
14
1114549200
ref: 14
NUT,CYLINDER HEAD SEAL
€ 12.50
15
0831616108
ref: 15
NUT
€ 2.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
€ 2.50
17
0928017002
ref: 17
O RING(D:2.4,ID:16.8)
€ 3.50
18
0910605006
ref: 18
BOLT
€ 2.00
19
0916805010
ref: 19
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
20
1125148000
ref: 20
PAD,CYLINDER
€ 6.50
21-1
NOTUSED
ref: 21-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21-2
NOTUSED
ref: 21-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21-3
0948200149
ref: 21-3
E2, E4, E6, E15, E16
SPARK PLUG DR8ES-L
€ 3.50
21-4
0948200223
ref: 21-4
E2, E4, E6, E15, E16
PLUG,SPARK(X24ESR-U)
€ 3.50
22
1311149200
ref: 22
PIPE,INTAKE,R
€ 20.00
23
1312149200
ref: 23
PIPE,INTAKE,L
€ 20.00
24
0940252306
ref: 24
CLAMP
€ 6.00
25
0924714012
ref: 25
PLUG (14X12)
€ 3.50
26
0916814004
ref: 26
GASKET(14X19.2X2) (NAS)
€ 2.50
27
0924123002
ref: 27
PLUG
€ 8.50
