MUFFLER (MODEL Z)

GSX1100EX 1983 (D) (E02)

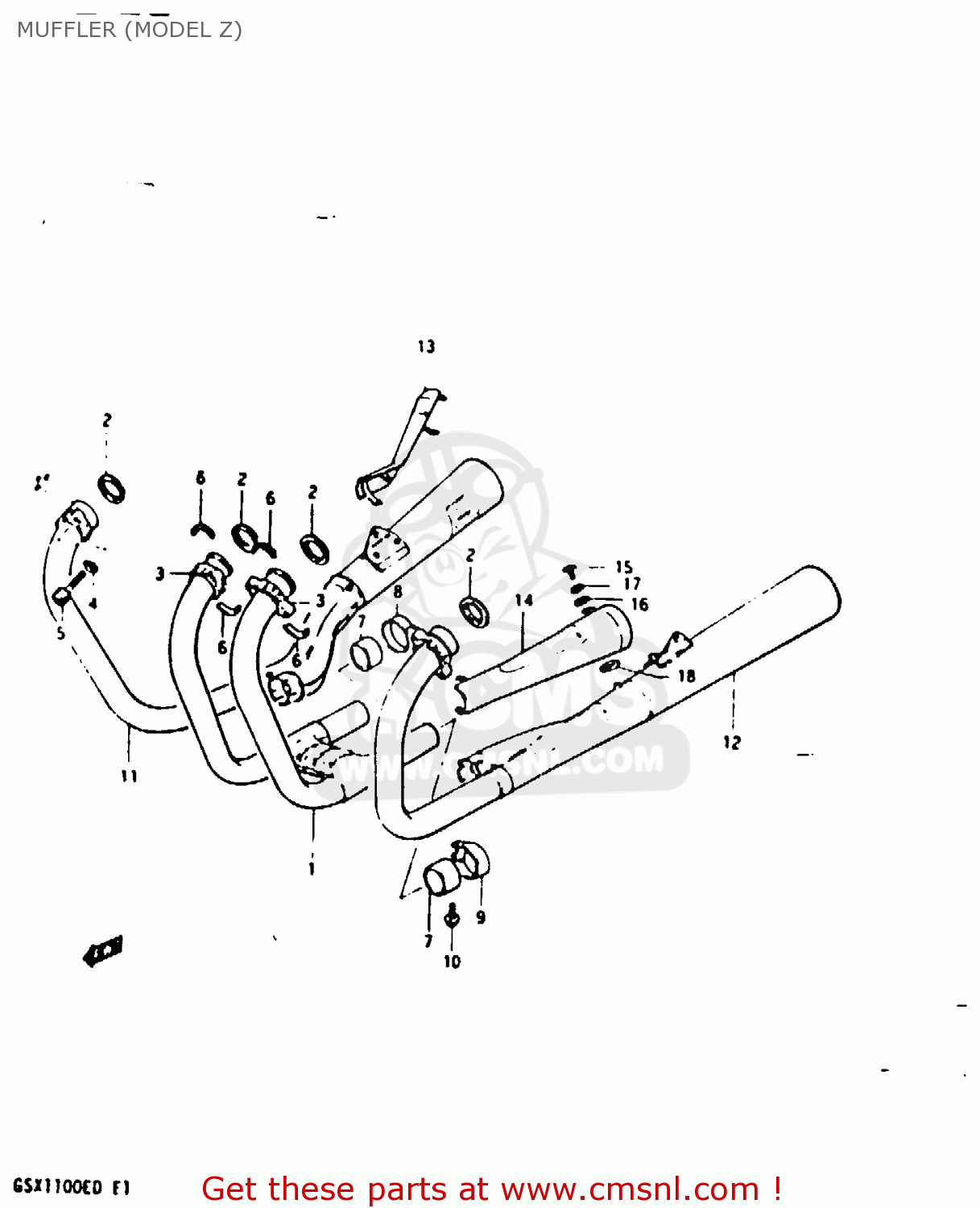

Muffler (model z) diagram GSX1100EX 1983 (D) (E02)

MUFFLER (MODEL Z) GSX1100EX 1983 (D) (E02)

MUFFLER (MODEL Z) GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

1410049200
ref: 1

PIPE,EXHAUST,CENTER

€ 240.50

2

1418111020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3-1

1418249010A
ref: 3-1

CLAMP,EXHAUST PIPE

€ 49.00

3-2

1418249011
ref: 3-2

CLAMP(H:21)

€ 49.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5-1

0910608018
ref: 5-1

BOLT

€ 3.00

5-2

0910608021
ref: 5-2

BOLT

€ 3.50

6

1415549000A
ref: 6

PLATE,EXHAUST P

€ 9.50

7

1477149001
ref: 7

CONNECTOR,MUFFLER

€ 26.00

8

1445949000
ref: 8

CLAMP,MUFFLER CONNECTOR,R

€ 25.50

9

1446949000
ref: 9

CLAMP,MUFFLER CONNECTOR,L

€ 25.50

10

0151708258
ref: 10

BOLT

€ 2.50

11-1

1430149201
ref: 11-1

MUFFLER ASSEMBLY,RIGHT

€ 123.00

11-2

1430149202
ref: 11-2

MUFFLER ASSEMBLY

€ 118.00

11-3

NOTUSED
ref: 11-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-4

NOTUSED
ref: 11-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-1

1430249201
ref: 12-1

MUFFLER ASSEMBLY

€ 469.50

12-2

1430249202
ref: 12-2

MUFFLER ASSEMBLY

€ 469.50

12-3

NOTUSED
ref: 12-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-4

NOTUSED
ref: 12-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

1478049202
ref: 13

COVER,MUFFLER

€ 74.50

14

1479049202
ref: 14

COVER,MUFFLER

€ 60.00

15

0211205108
ref: 15

SCREW

€ 2.00

16

0832221058
ref: 16

WASHER

€ 2.50

17

0832121058
ref: 17

LOCK WASHER

€ 2.00

18

0916806005
ref: 18

GASKET 6.2X12X1.5 (MCA)

€ 2.00
