STEERING STEM (GSX1100ED/EXD)

GSX1100EX 1983 (D) (E02)

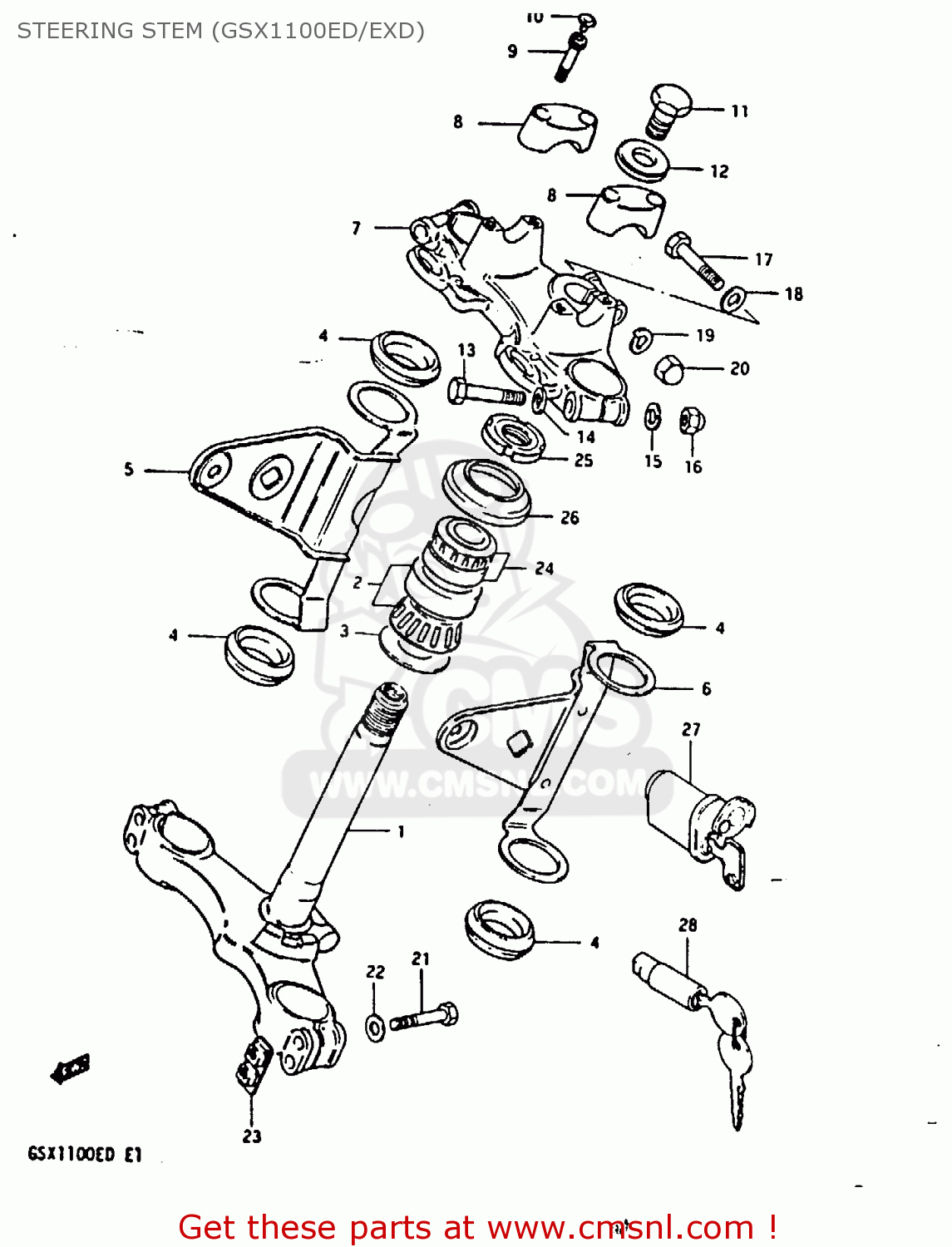

Steering stem (gsx1100ed/exd) diagram GSX1100EX 1983 (D) (E02)

STEERING STEM (GSX1100ED/EXD) GSX1100EX 1983 (D) (E02)

STEERING STEM (GSX1100ED/EXD) GSX1100EX 1983 (D) (E02)

prices are in EUR

ref

part #

description

quantity

1

5141049520291
ref: 1

STEM,STEERING

€ 140.00

2

0926530005
ref: 2

BEARING

€ 49.50

3

0821130402
ref: 3

WASHER,THRUST

€ 4.00

4

5155349000
ref: 4

CUSHION,HEADLAMP BRACKET

€ 4.50

5

5153049510291
ref: 5

BRACKET, HEAD LAMP RH

€ 51.00

6

5154049510291
ref: 6

BRACKET, HEAD LAMP LH

€ 0.00

7

5131149500291
ref: 7

HEAD,STEERING STEM

€ 198.50

8

5621149500291
ref: 8

HOLDER,HANDLEBAR

€ 26.00

9

0910608013
ref: 9

BOLT

€ 3.00

10

0925006004
ref: 10

CAP(OD:14.5)

€ 1.50

11

5135349300A
ref: 11

NUT,STEM HEAD

€ 11.50

12

5135649300A
ref: 12

WASHER,STEERING STEM B

€ 4.00

13

0110710558
ref: 13

BOLT 10X55

€ 3.50

14

0832221108
ref: 14

WASHER

€ 2.50

15

0832121108
ref: 15

LOCK WASHER

€ 2.00

16

0831311108
ref: 16

NUT, LOWER LH

€ 2.50

17

0110708508
ref: 17

BOLT 8X50

€ 3.00

18

0832221088
ref: 18

WASHER

€ 2.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0831311088
ref: 20

NUT

€ 2.50

21

0110708558
ref: 21

BOLT 8X55

€ 3.00

22

0832221088
ref: 22

WASHER

€ 2.00

23

5145849000
ref: 23

NUT,FR FORK INNER TUBE

€ 5.00

24

0926525008
ref: 24

TAPER,ROLLER BEARING

€ 48.50

25

5163134200
ref: 25

NUT,STEERING STEM

€ 23.00

26

5164340502
ref: 26

DUST SEAL,STEERING UPR

€ 8.00

27

NOTUSED
ref: 27

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

28

NOTUSED
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
