FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD)

GSX1100EX 1983 (D) (E02)

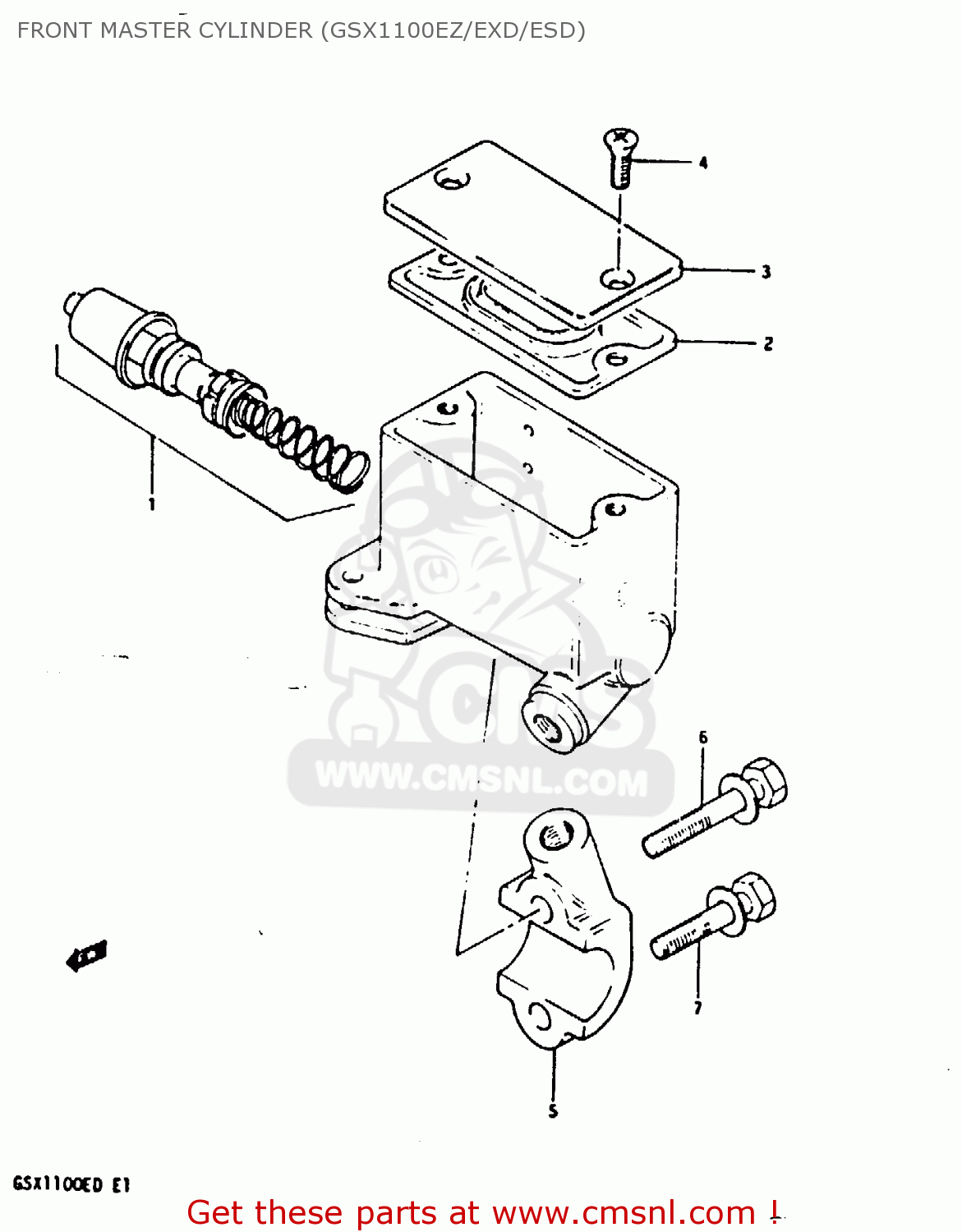

Front master cylinder (gsx1100ez/exd/esd) diagram GSX1100EX 1983 (D) (E02)

FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) GSX1100EX 1983 (D) (E02)
FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) GSX1100EX 1983 (D) (E02)
FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) GSX1100EX 1983 (D) (E02)
prices are in EUR
ref
part #
description
quantity
0
5960034210
ref: 0
CYLINDER ASSY, MASTER
€ 148.50
1
5960049830
ref: 1
PISTON & CUP SET
5960049830
€ 46.50
2
5966749300
ref: 2
DIAPHRAGM,MASTER CYLINDER
5966749300
€ 15.50
3
5966949300
ref: 3
CAP
5966949300
€ 23.50
4
5969149300
ref: 4
SCREW,RESERVOIR CAP
€ 6.50
5
5967149000
ref: 5
HOLDER
5967149000
€ 22.50
6
5969449001
ref: 6
BOLT,MASTER CYLINDER H
5969449001
€ 3.00
7
5969349001
ref: 7
BOLT,MASTER CYLINDER H
5969349001
€ 4.00
