CLUTCH HOSE

GSX1300BK BKING 2008 (K8) USA (E03)

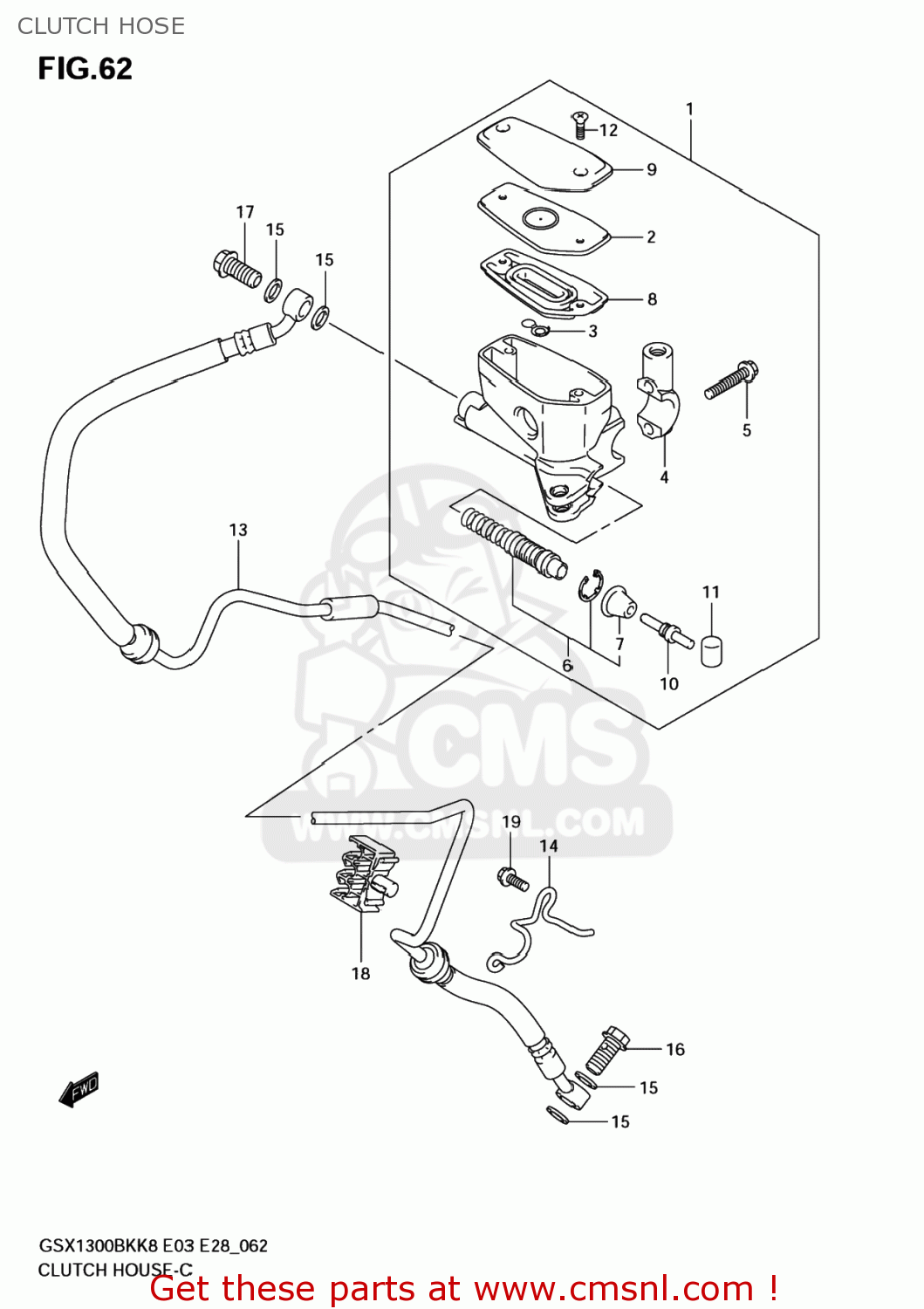

Clutch hose diagram GSX1300BK BKING 2008 (K8) USA (E03)

CLUTCH HOSE GSX1300BK BKING 2008 (K8) USA (E03)

CLUTCH HOSE GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5980023H00
ref: 1

CYLINDER ASSY,CLUTCH MASTER

€ 322.00

2

5743823H00
ref: 2

PLATE

€ 6.00

3

5966432F00
ref: 3

PROTECTOR

€ 7.50

4

5967132F00
ref: 4

HOLDER

€ 17.00

5

5967502FA0
ref: 5

BOLT(6X22)

€ 3.00

6

5980023810
ref: 6

PISTON & CUP SET

€ 39.00

7

5986623H00
ref: 7

BOOT

€ 5.50

8

5986723H00
ref: 8

DIAPHRAGM

€ 9.00

9

5986923H00
ref: 9

CAP

€ 12.50

10

5987123H00
ref: 10

ROD,PUSH

€ 7.50

11

5989208A00
ref: 11

BUSH

€ 5.50

12

6968949300
ref: 12

SCREW

€ 1.50

13

5991023H00
ref: 13

HOSE,CLUTCH

€ 214.00

14

5992123H00
ref: 14

CLAMP,CLUTCH HOSE

€ 7.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

0936010062
ref: 16

BOLT UNION

€ 5.00

17

0936010062
ref: 17

BOLT UNION

€ 5.00

18

0940307337
ref: 18

CLAMP

€ 3.00

19

015500812A
ref: 19

BOLT

€ 2.50
