STARTER CLUTCH

GSX1300BK BKING 2008 (K8) USA (E03)

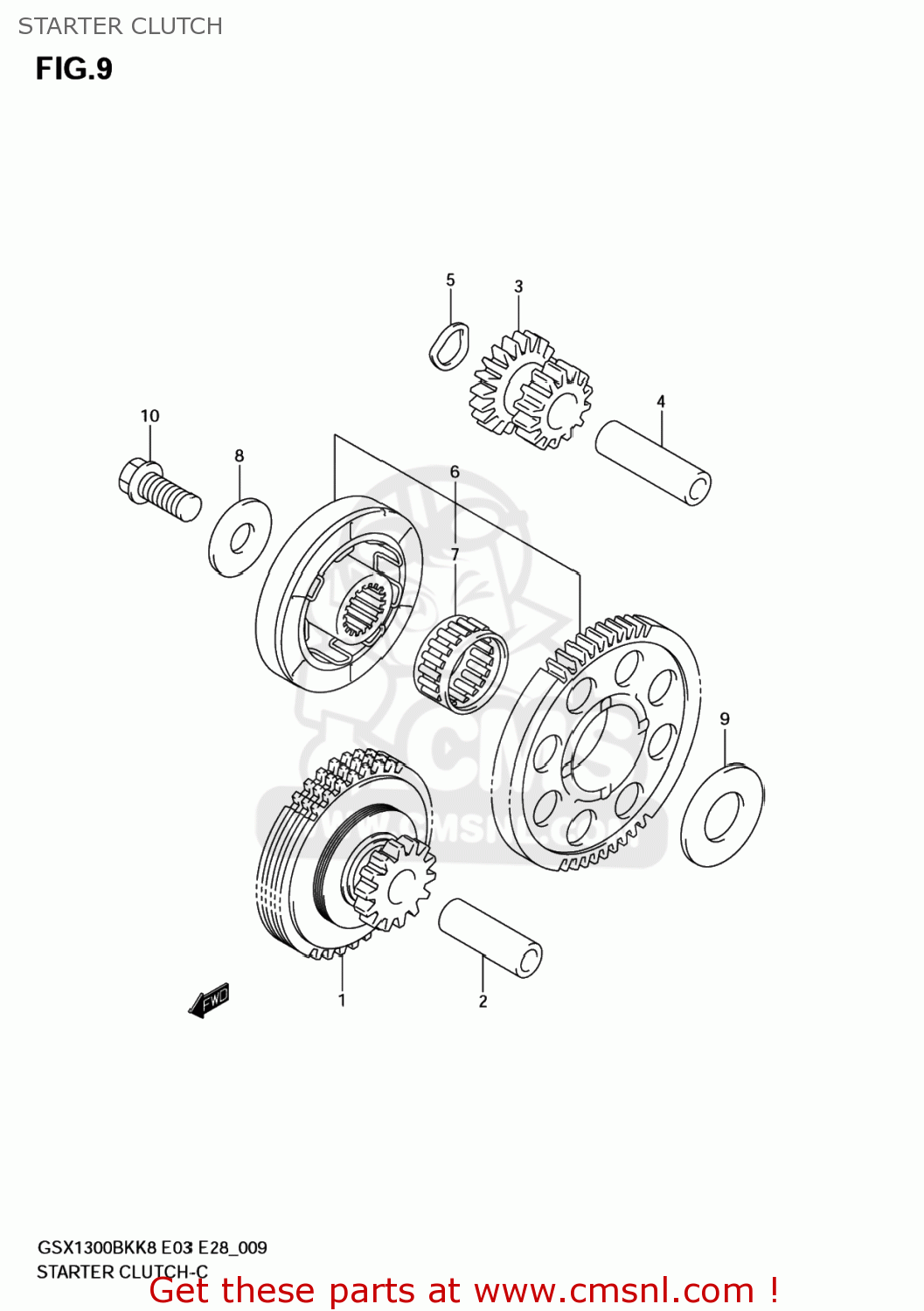

Starter clutch diagram GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1260024F00
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 180.00

1260024F00
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 180.00

1261524F00
ref: 2

PIN,STARTER IDLE GEAR NO.1

€ 8.00

1261224F00
ref: 3

GEAR,STARTER IDLE NO.2

€ 49.50

1261224F00
ref: 3

GEAR,STARTER IDLE NO.2

€ 49.50

1215105200
ref: 4

PIN ,PISTON

€ 6.50

0916414008
ref: 5

WASHER

€ 2.50

1260024861
ref: 6

CLUTCH SET,STARTER

€ 332.00

0926328031
ref: 7

BEARING(28X34X16.8)

€ 27.00

0821110285
ref: 8

WASHER

€ 2.50

0821120403
ref: 9

WASHER

€ 3.50

0910310189
ref: 10

BOLT(10X23)

€ 4.50
