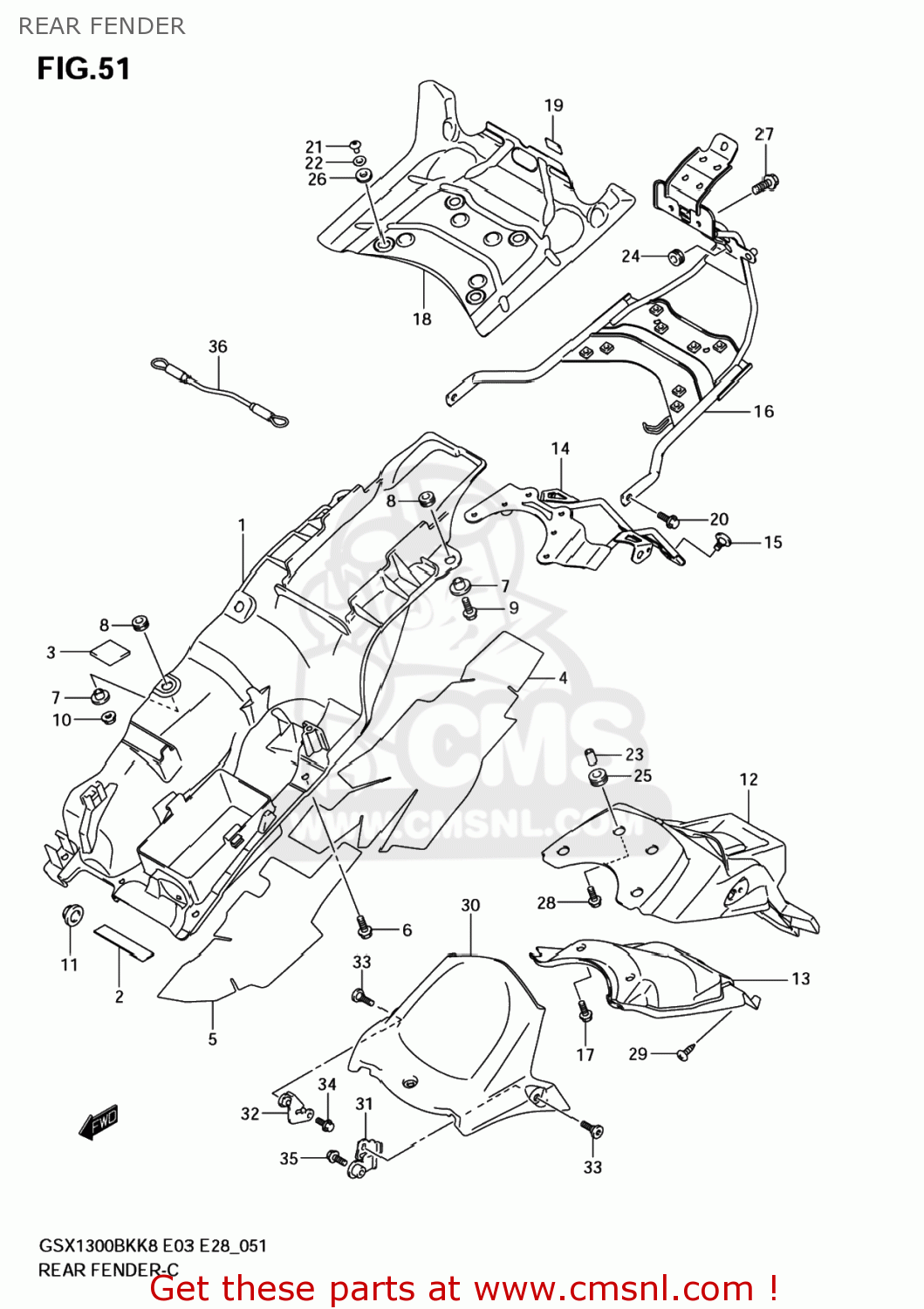

REAR FENDER

ref

part #

description

quantity

1

6311123H00
ref: 1

FENDER,RR FR

€ 129.50

2

3365238A10
ref: 2
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

3

4488544AA0
ref: 3

CUSHION

€ 3.00

4

6315123H00
ref: 4

SHIELD,RR FENDER NO.1

€ 66.00

5

6315223H00
ref: 5

SHIELD,RR FENDER NO.2

€ 44.50

6

0911106066
ref: 6

BOLT(6X16)

€ 2.50

7

0918006319
ref: 7

SPACER(6.5X10X11.6)

€ 3.50

8

0932008070
ref: 8

CUSHION

€ 8.50

9

015500620A
ref: 9

BOLT

€ 2.50

10

083161006A
ref: 10

NUT

€ 2.50

11

0932110018
ref: 11

CUSHION

€ 5.00

12

6311223H00
ref: 12

FENDER,RR RR

€ 83.50

13

6311423H00
ref: 13

COVER,RR FENDER RR

€ 35.50

14

6313023H00
ref: 14

BRACKET COMP,R

€ 649.00

15

0913906144
ref: 15

SCREW(6X12)

€ 3.00

16

6314023H00
ref: 16

BRACE,RR FENDER

€ 537.50

17

6316143E00
ref: 17

BOLT

€ 3.00

18

6326123H00
ref: 18

HEATSHIELD,RR FENDER

€ 138.50

19

6326223H00
ref: 19

CUSHION,HEAT SHIELD RR

€ 3.50

20

0910608140
ref: 20

BOLT(8X16)

€ 6.00

21

0913906062
ref: 21

SCREW(6X12)

€ 3.00

22

0916906040
ref: 22

WASHER

€ 2.00

23

0918006095
ref: 23

SPACER(6X12X10)

€ 4.50

24

0932008066
ref: 24

CUSHION

€ 7.50

25

6311523H00
ref: 25

CUSHION,RR FENDER RR

€ 26.00

26

0932008082
ref: 26

CUSHION

€ 7.50

27

015500612A
ref: 27

BOLT

€ 2.50

28

0910306282
ref: 28

BOLT(6X25)

€ 1.50

29

035410516A
ref: 29

SCREW

€ 1.50

30

6311323H00
ref: 30
63113-23H01

FENDER,REAR LO

€ 75.50

31

6312023H00
ref: 31

BRACKET,RR FENDER LWR,L

€ 16.00

32

6315023H00
ref: 32

BRACKET,RR FENDER LWR,R

€ 9.00

33

0913906144
ref: 33

SCREW(6X12)

€ 3.00

34

015500612A
ref: 34

BOLT

€ 2.50

35

015500620A
ref: 35

BOLT

€ 2.50

36

9574010G00
ref: 36

CABLE,HELMET LOCK

€ 24.00
