FRAME
GSX1300BK BKING 2008 (K8) USA (E03)

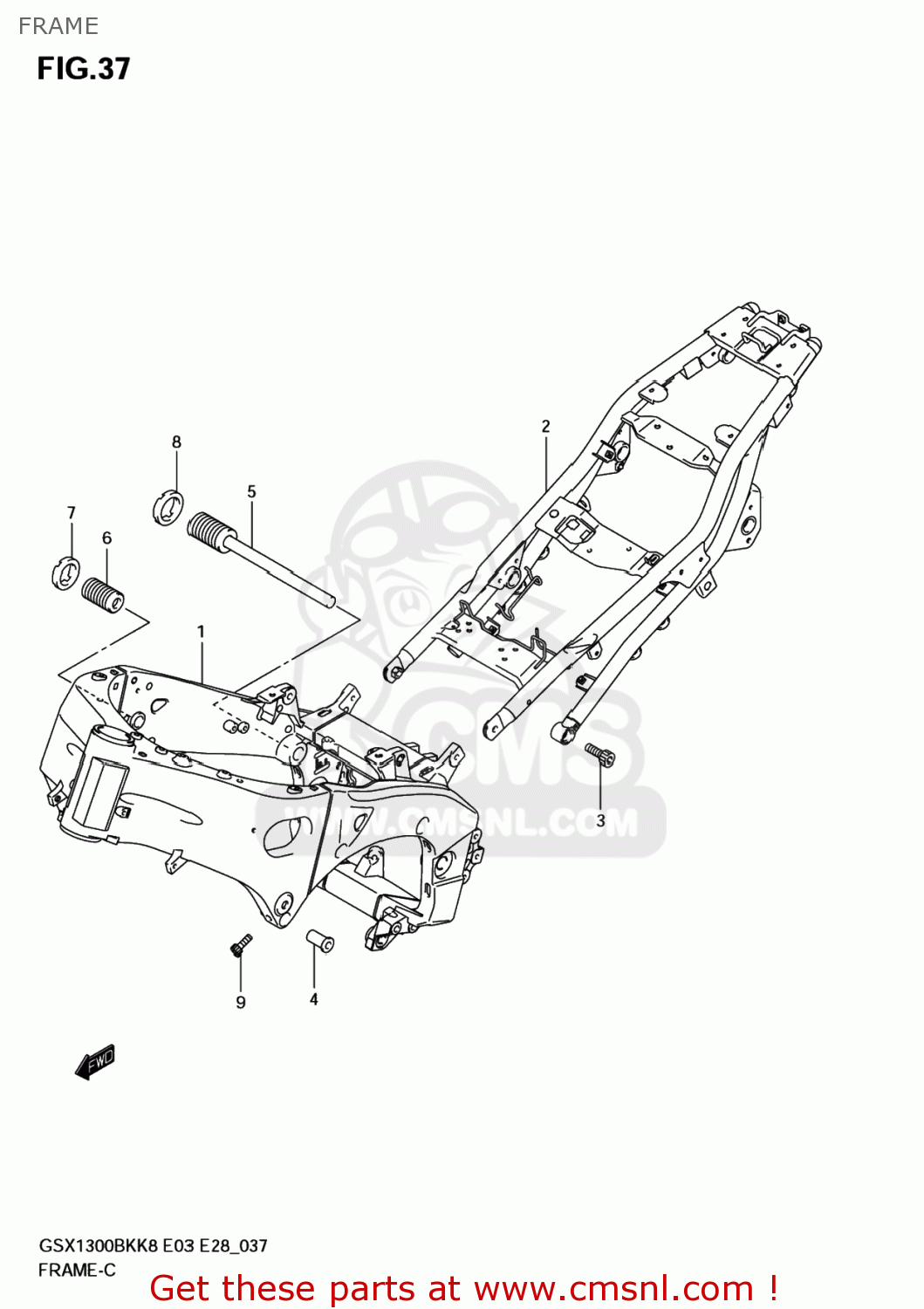

Frame diagram GSX1300BK BKING 2008 (K8) USA (E03)
FRAME GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110023H01YAP
ref: 1
41100-23H02-YAP
FRAME
€ 2,212.00
2
4120023H00
ref: 2
RAIL,SEAT
€ 965.50
3
0910610074
ref: 3
BOLT(10X35)
€ 5.50
4
4191133E10
ref: 4
SPACER,ENGINE MTG
€ 16.50
5
4192115H00
ref: 5
BOLT,CRANK CASE ADJUST
€ 24.00
6
4192115H10
ref: 6
BOLT,CRANK CAS
€ 20.50
7
4192218G00
ref: 7
NUT,ADJUST BOLT
€ 23.50
8
4192219F00
ref: 8
41922-19F20
NUT,CRANKCASE ADJUST
€ 12.00
9
0910608105
ref: 9
BOLT(8X30)
€ 3.00
