CYLINDER

GSX1300BK BKING 2008 (K8) USA (E03)

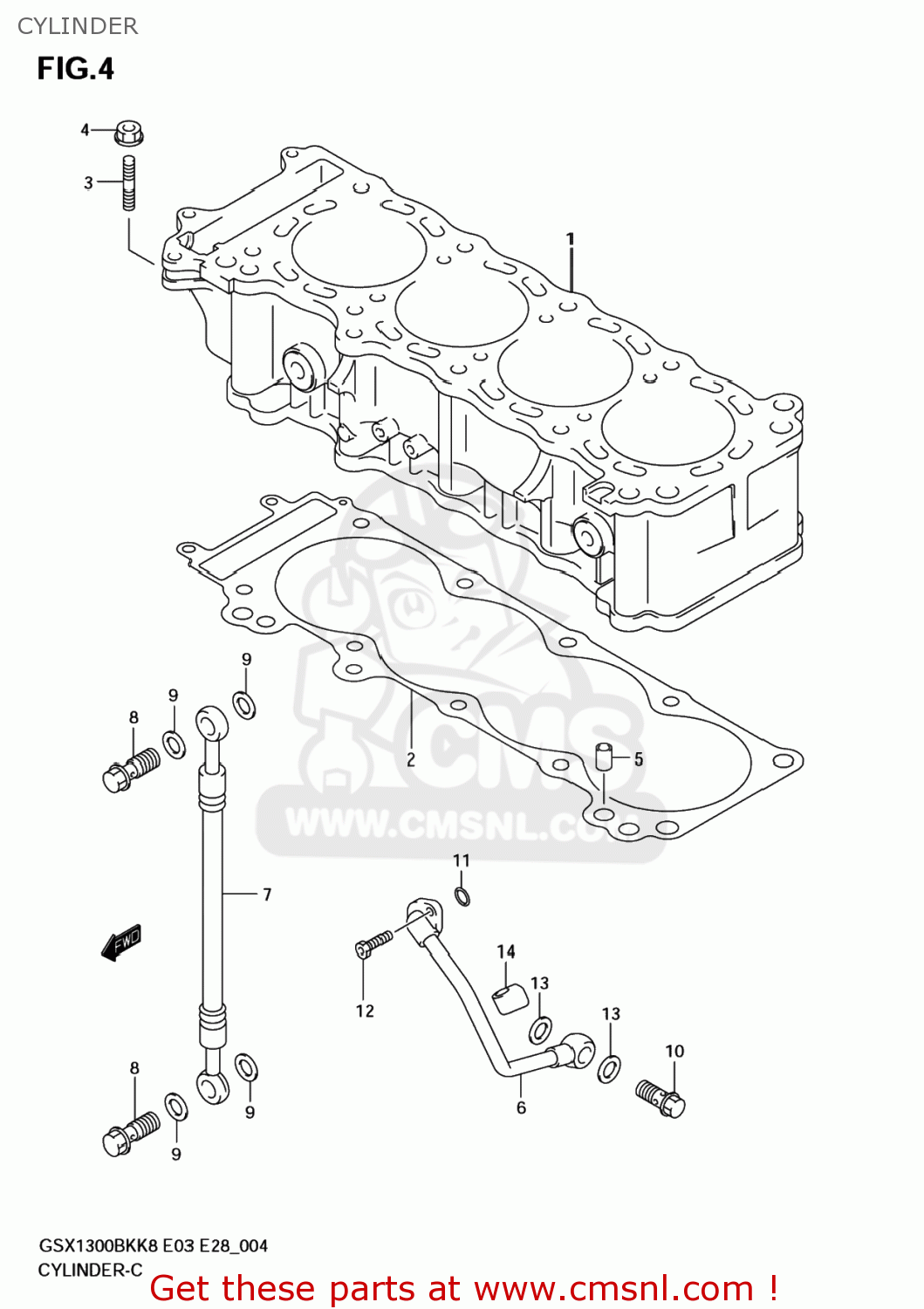

Cylinder diagram GSX1300BK BKING 2008 (K8) USA (E03)

CYLINDER GSX1300BK BKING 2008 (K8) USA (E03)

CYLINDER GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121023H000F0
ref: 1

CYLINDER

€ 1,155.00

2

1124115H00
ref: 2

GASKET,CYLINDER (NAS)

€ 45.50

3

014210625B
ref: 3

BOLT,STUD

€ 2.50

4

083161006B
ref: 4

NUT

€ 2.50

5

0421111169
ref: 5

PIN

€ 2.00

6

1128024F00
ref: 6

PIPE,CRANKCASE OIL

€ 45.00

7

1128224F00
ref: 7

HOSE,CYLINDER HEAD OIL

€ 70.50

8

0936010062
ref: 8

BOLT UNION

€ 5.00

9

0916810007
ref: 9

GASKET(10.1X16X1) (NAS)

€ 2.00

10

0936014012
ref: 10

BOLT UNION

€ 10.00

11

0928012012
ref: 11

O RING(D:2.4,ID:11.8)

€ 5.00

12

0910606073
ref: 12

BOLT(6X16)

€ 2.50

13

0916814015
ref: 13

GASKET(14X20X1.5) (NAS)

€ 1.50

14

1128324F00
ref: 14

CUSHION,CRANKCASE DIL PIPE

€ 4.50
