FUEL PUMP

GSX1300BK BKING 2008 (K8) USA (E03)

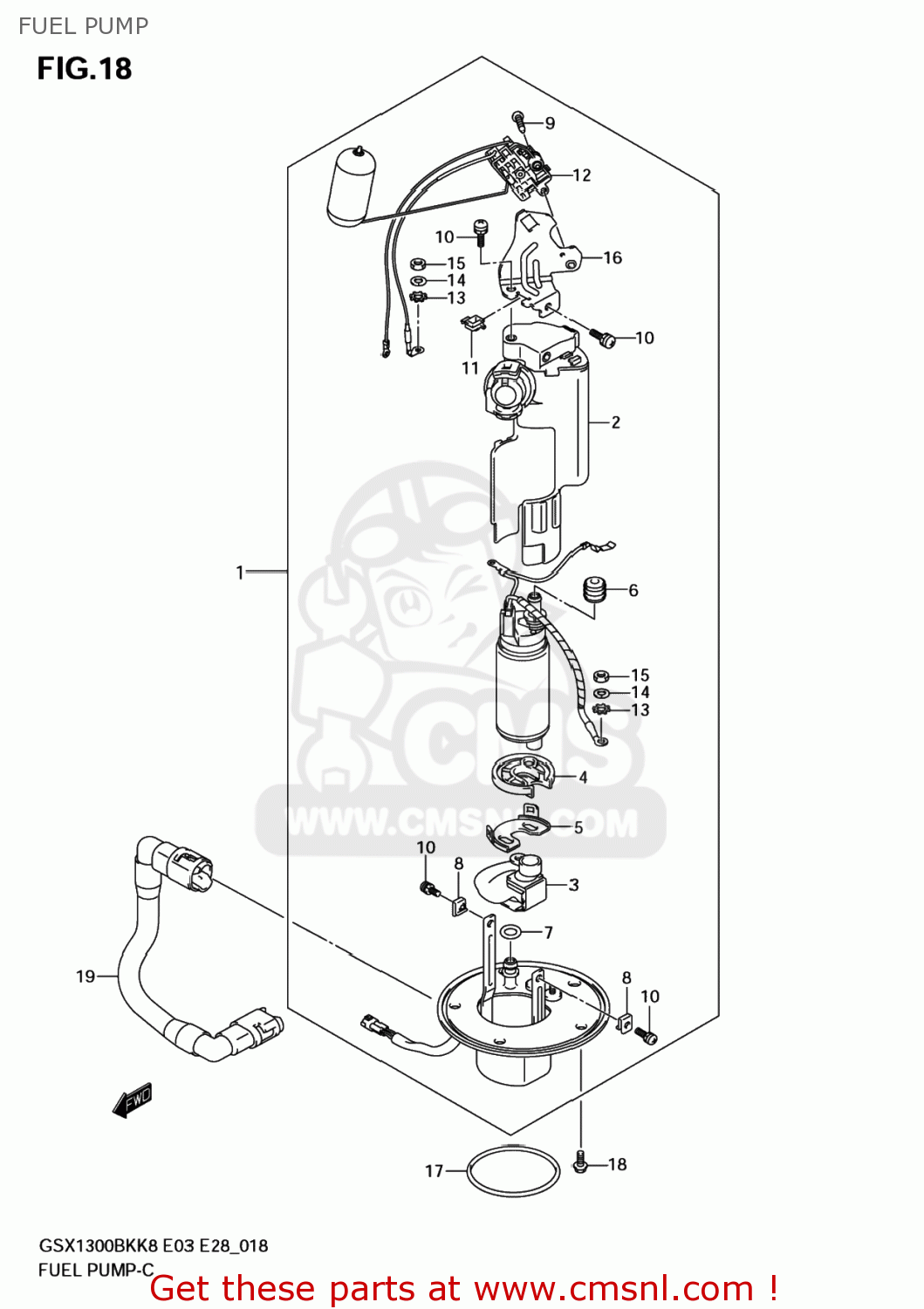

Fuel pump diagram GSX1300BK BKING 2008 (K8) USA (E03)

FUEL PUMP GSX1300BK BKING 2008 (K8) USA (E03)

FUEL PUMP GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510023H00
ref: 1

PUMP ASSY,FUEL

€ 1,146.50

2

1541041G00
ref: 2

FILTER,FUEL

€ 320.00

3

1542044G00
ref: 3

STRAINER,FUEL

€ 59.50

4

1511135F00
ref: 4

CUSHION

€ 8.50

5

1511242F00
ref: 5

HOLDER,FUEL PUMP

€ 18.50

6

1511435F00
ref: 6

BUSH,FUEL PUMP

€ 17.00

7

1511335F00
ref: 7

O RING

€ 7.50

8

1511535F00
ref: 8

NUT

€ 10.50

9

1511606G10
ref: 9

SCREW

€ 6.50

10

1511635F10
ref: 10

SCREW

€ 6.00

11

1511923H00
ref: 11

SADDLE,EDGE

€ 7.50

12

3481023H00
ref: 12

GAUGE ASSY,FUEL LEVEL

€ 148.50

13

1517135F00
ref: 13

WASHER

€ 6.00

14

1517235F00
ref: 14

WASHER,SPRING

€ 4.00

15

1517335F00
ref: 15

NUT

€ 4.50

16

1518123H00
ref: 16

BRACKET,FUEL GAUGE

€ 25.00

17

1520135F00
ref: 17

O RING,FUEL PUMP

€ 26.00

18

071200612A
ref: 18

BOLT

€ 3.50

19

1581023H00
ref: 19

HOSE,FUEL

€ 54.00
