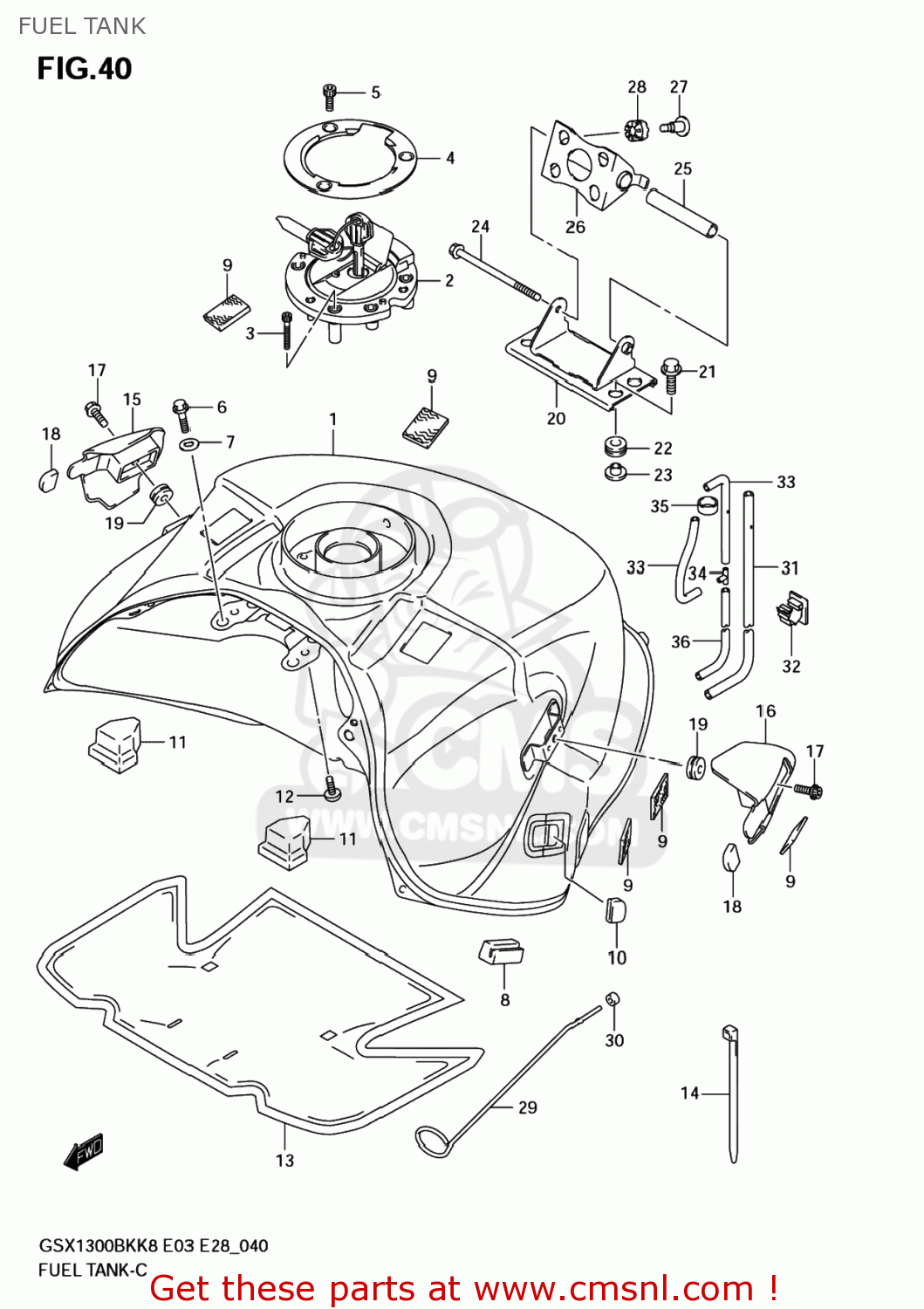

FUEL TANK

ref

part #

description

quantity

1-1

4410023H20019
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 912.00

1-2

4410023H20YHF
ref: 1-2

TANK ASSY,FUEL

€ 912.00

2

4420023850
ref: 2

CAP SET,FUEL TANK

€ 161.00

3

071300530B
ref: 3

BOLT

€ 2.50

4

4421123H00
ref: 4

COVER,FUEL TANK CAP

€ 93.50

5

0910605026
ref: 5

BOLT(5X12)

€ 3.00

6

015500630B
ref: 6

BOLT

€ 2.00

7

0916006136
ref: 7

WASHER(6.5X28X1.6)

€ 2.50

8

4454123H00
ref: 8

CUSHION,FUEL TANK SIDE

€ 19.50

9

4457213G00
ref: 9

FASTENER

€ 6.00

10

4417823H00
ref: 10

GUIDE,FUEL TANK COVER

€ 10.50

11

4454223H00
ref: 11

CUSHION,FUEL TANK RR

€ 18.00

12

0913906172
ref: 12

SCREW(6X10)

€ 3.00

13

4419223H00
ref: 13

SHIELD,FUEL TANK HEAT

€ 51.00

14

0940314311
ref: 14

CLAMP

€ 4.00

15

4417923H00
ref: 15

BRACKET,FUEL TANK COVER,R

€ 26.00

16

4418923H00
ref: 16

BRACKET,FUEL TANK COVER,L

€ 28.50

17

0913906172
ref: 17

SCREW(6X10)

€ 3.00

18

4418323H00
ref: 18

CUSHION,TANK SIDE COVER

€ 8.00

19

0932918001
ref: 19

CUSHION

€ 2.50

20

4455023H00
ref: 20

BRACKET,FUEL TANK NO.2

€ 28.50

21

0911606192
ref: 21

BOLT(6X20)

€ 2.00

22

0932008001
ref: 22

CUSHION

€ 3.50

23

0916906062
ref: 23

WASHER

€ 3.00

24

071200695B
ref: 24

BOLT

€ 3.50

25

4456118G00
ref: 25

SPACER,FUEL TANK RR

€ 14.00

26

4453041G00
ref: 26

BRACKET,FUEL TANK NO.1

€ 21.50

27

0913906132
ref: 27
09139-06191

SCREW,FUEL TAN

€ 4.50

28

0932008071
ref: 28

CUSHION

€ 3.50

29

4456023H00
ref: 29

STAY,FUEL TANK

€ 22.50

30

0932005007
ref: 30

CUSHION

€ 2.00

31

4442323H00
ref: 31

HOSE,FUEL TANK WATER DRAIN

€ 14.50

32

0940314311
ref: 32

CLAMP

€ 4.00

33

4442438G00
ref: 33
44425-09E00

HOSE,TANK BREA

€ 10.00

34

0936706002
ref: 34

JOINT,3 WAY

€ 3.00

35

0935213162600
ref: 35

HOSE(13.5X16.5X600)

€ 14.50

36

0935250823600
ref: 36
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

36

0935250823600
ref: 36
44420-44AR0

HOSE(5X8.2X600)

€ 13.00
