STAND
GSX1300BK BKING 2008 (K8) USA (E03)

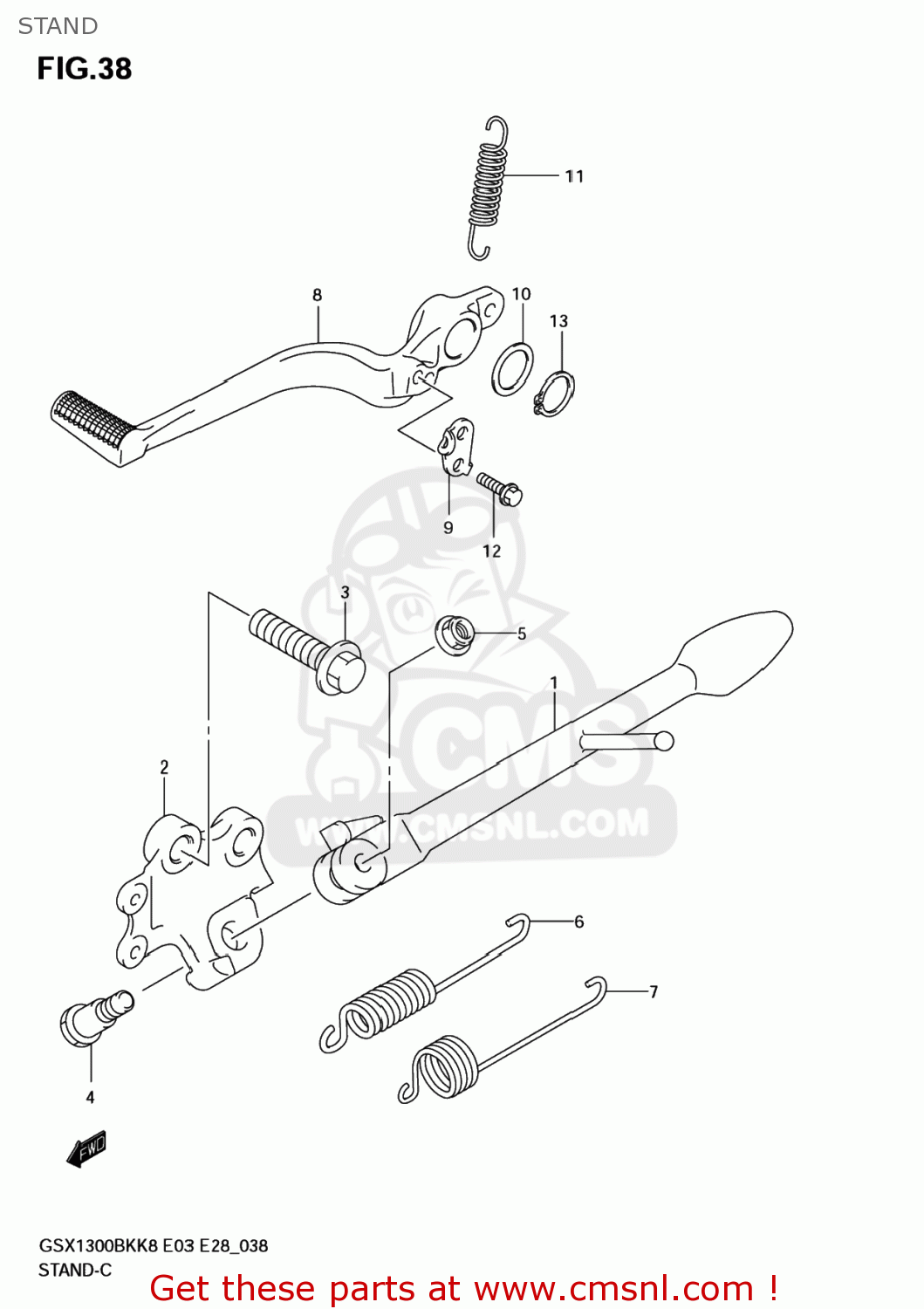

Stand diagram GSX1300BK BKING 2008 (K8) USA (E03)
STAND GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231023H00
ref: 1
STAND,PROP
€ 142.00
2
4233023H00
ref: 2
BRACKET,PROP STAND
€ 116.50
3
0910012077
ref: 3
BOLT(12X35)
€ 4.50
4
0911110059
ref: 4
BOLT(10X21)
€ 7.00
5
0915910103
ref: 5
NUT
€ 3.00
6
0944314058
ref: 6
SPRING
€ 5.50
7
0944319011
ref: 7
SPRING
€ 5.50
8
4311123H00
ref: 8
PEDAL,BRAKE
€ 103.00
9
4313123H00
ref: 9
PLATE,RETURN SPRING
€ 7.00
10
0916018022
ref: 10
WASHER(18X24X1)
€ 3.00
11
0944313032
ref: 11
SPRING
€ 4.00
12
015470610B
ref: 12
BOLT
€ 3.00
13
083313118A
ref: 13
CIRCLIP
€ 2.00
