HEADLAMP

GSX1300BK BKING 2008 (K8) USA (E03)

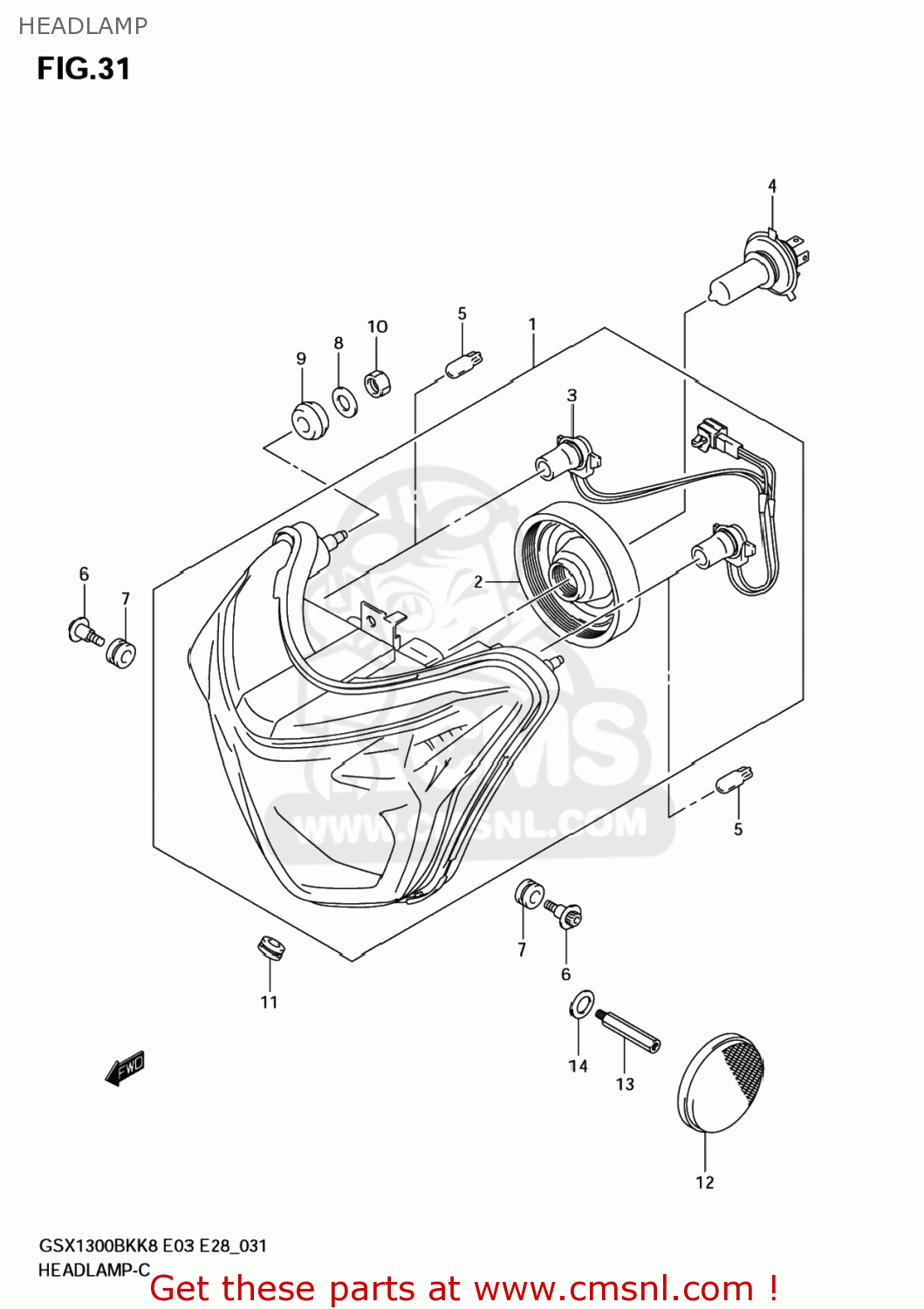

Headlamp diagram GSX1300BK BKING 2008 (K8) USA (E03)

HEADLAMP GSX1300BK BKING 2008 (K8) USA (E03)

HEADLAMP GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510023H00999
ref: 1

HEADLAMP ASSY

€ 515.50

2

3517964G00
ref: 2

COVER,SOCKET

€ 8.00

3

3611823H00
ref: 3

CORD ASSY

€ 36.50

4

0947112182
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112216
ref: 5

BULB(12V5W)

€ 5.00

6

3414918G00
ref: 6

SCREW,SPEEDOMETER

€ 2.00

7

3495533E00
ref: 7

CUSHION,METER

€ 3.00

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

0932009010
ref: 9

CUSHION

€ 2.50

10

083100006B
ref: 10

NUT

€ 2.00

11

0932006016
ref: 11

CUSHION

€ 4.50

12

3595014A10
ref: 12
35950-14A11

REFLECTOR,REFLEX

€ 11.00

13

0911906112
ref: 13

BOLT

€ 8.50

14

0916009015
ref: 14

WASHER(9X19X1.0)

€ 2.00
