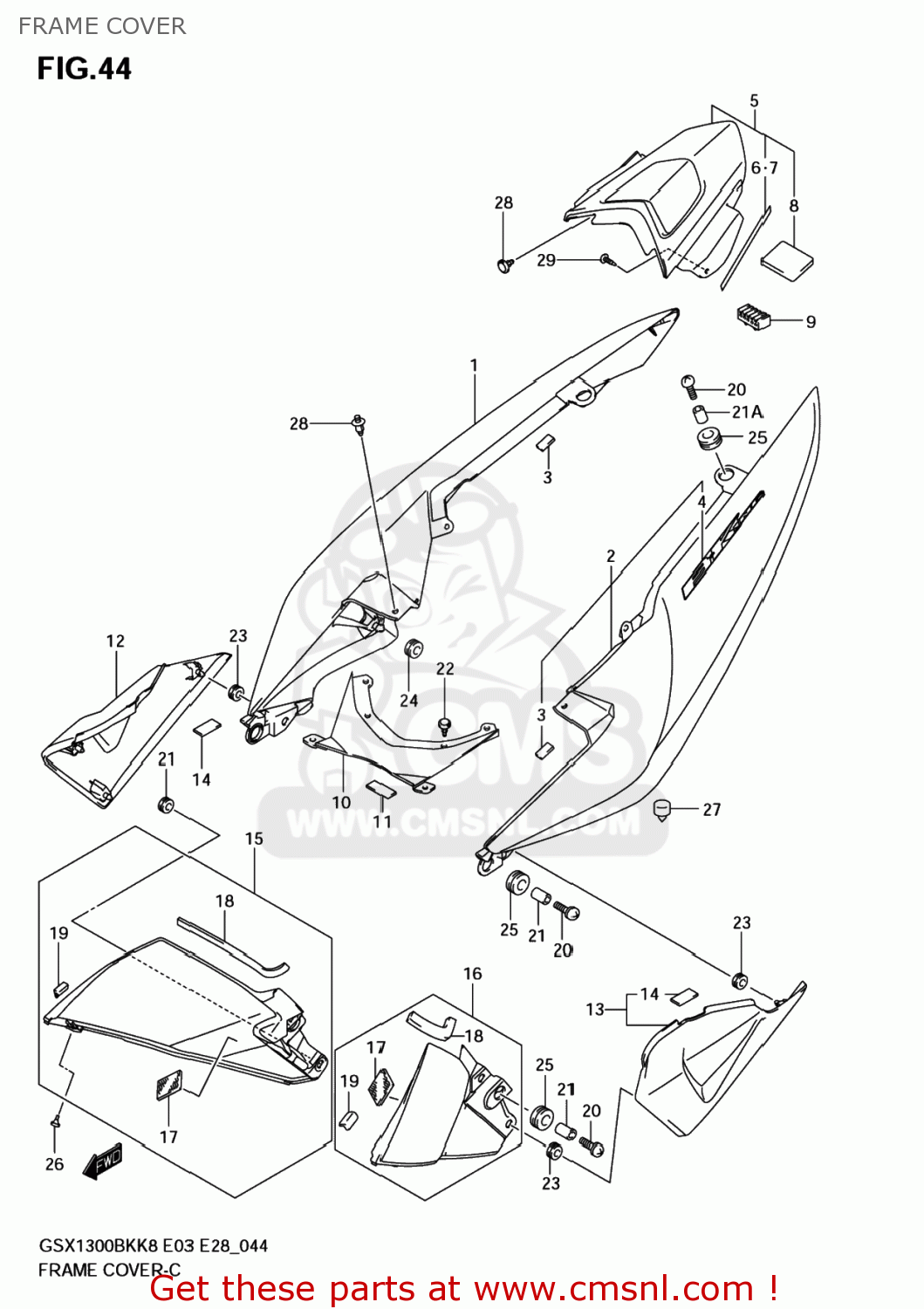

FRAME COVER

ref

part #

description

quantity

1-1

4711023H00019
ref: 1-1

COVER,FRAME,R(BLACK)

€ 162.00

1-2

4711023H00YHF
ref: 1-2

COVER,FRAME,R(GRAY)

€ 162.00

2-1

4721023H00019
ref: 2-1

COVER,FRAME,L(BLACK)

€ 162.00

2-2

4721023H00YHF
ref: 2-2

COVER,FRAME,L(GRAY)

€ 162.00

3

4551601H00
ref: 3

CUSHION,SEAT TAIL COVER LWR RR

€ 3.50

4

6813123H00FGC
ref: 4

EMBLEM,FRAME COVER

€ 7.50

5-1

4731023H00YKV
ref: 5-1

COVER,FRAME CTR

€ 375.50

5-2

4731023H00YMD
ref: 5-2

COVER,FRAME CTR

€ 370.50

6

4731223H00
ref: 6

TAPE,FRAME COVER CTR,R

€ 2.00

7

4731323H00
ref: 7

TAPE,CTR COVER,L

€ 4.50

8

4731423H00
ref: 8

CUSHION,CTR COVER

€ 13.50

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10-1

4732123H00019
ref: 10-1

LID,FRAME COVER CTR

€ 73.00

10-2

4732123H00YHF
ref: 10-2

LID,FRAME COVER CTR

€ 105.00

11

4551601H00
ref: 11

CUSHION,SEAT TAIL COVER LWR RR

€ 3.50

12

4741023H00YKV
ref: 12

COVER,FRAME SIDE,R(BLACK)

€ 272.00

13

4742023H00YKV
ref: 13

COVER,FRAME SIDE,L(BLACK)

€ 282.00

14

4551601H00
ref: 14

CUSHION,SEAT TAIL COVER LWR RR

€ 3.50

15

4761023H00YKV
ref: 15

COVER,FRAME SIDE FR,R(BLACK)

€ 322.00

16

4771023H00YKV
ref: 16

COVER,FRAME SIDE FR,L(BLACK)

€ 322.00

17

4457213G00
ref: 17

FASTENER

€ 6.00

18

4761223H00
ref: 18

CUSHION,FR SIDE COVER

€ 6.50

19

4761323H00
ref: 19

MOLDING,FRAME COVER

€ 4.50

20

0913606081
ref: 20

SCREW(6X20)

€ 3.00

21

0918006300
ref: 21

SPACER(6.5X12X9)

€ 5.50

21A

021420620B
ref: 21A

SCREW

€ 2.00

22

0925006012
ref: 22

PLUG(OD:10)

€ 5.00

23

0932006504
ref: 23

CUSHION

€ 4.00

24

0932008018
ref: 24

CUSHION

€ 4.00

25

0932012068
ref: 25

CUSHION

€ 3.50

26

0932106026
ref: 26

CUSHION

€ 3.50

27

0932110011
ref: 27

CUSHION

€ 3.00

28

0940906328
ref: 28

CLIP

€ 3.50

29

032410516A
ref: 29

SCREW

€ 1.50
