MUFFLER
GSX1300BK BKING 2008 (K8) USA (E03)

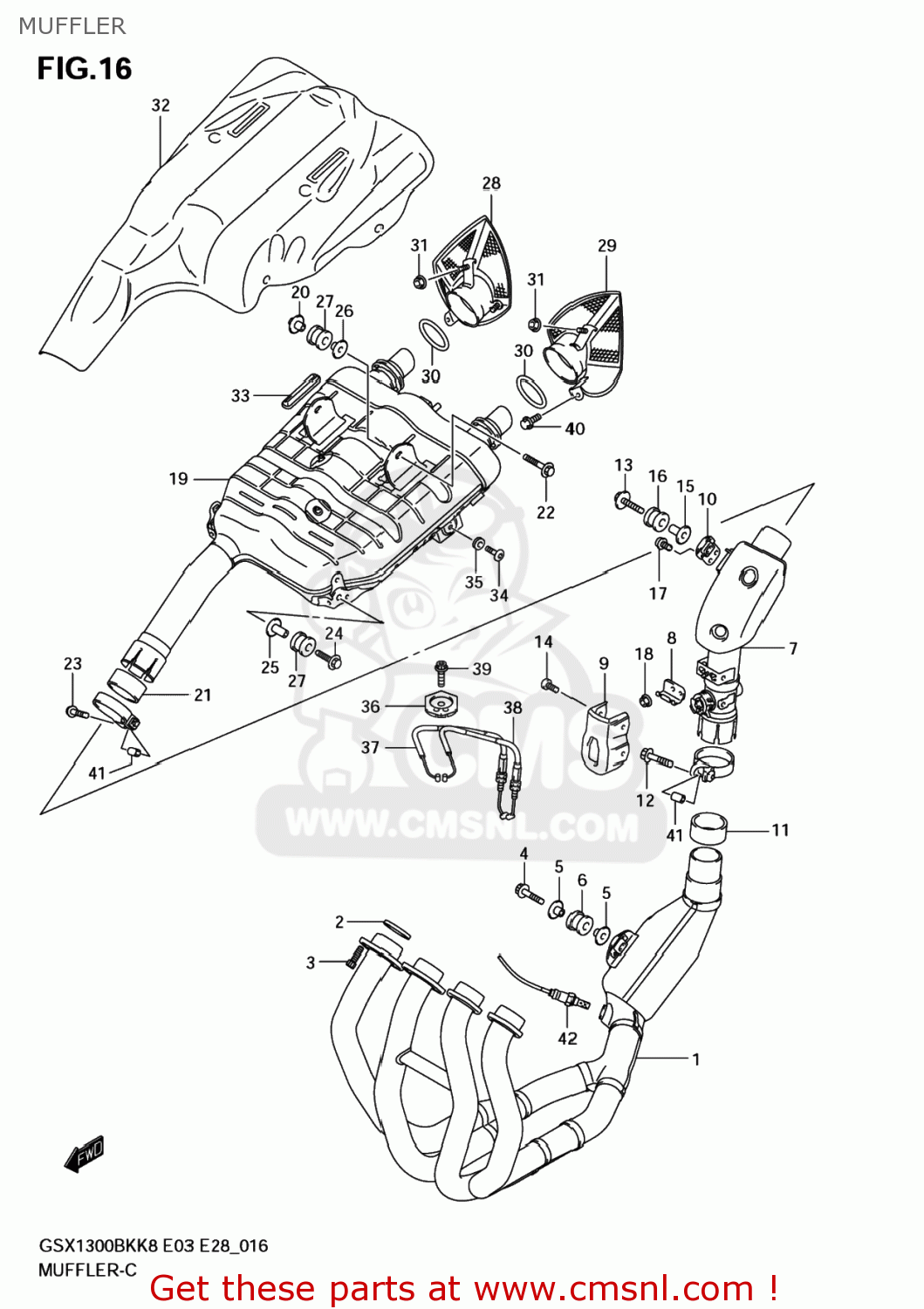

Muffler diagram GSX1300BK BKING 2008 (K8) USA (E03)
MUFFLER GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410023H00
ref: 1
PIPE,EXHAUST
€ 1,951.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 9.00
3
0910608104
ref: 3
09106-08165
BOLT
€ 5.00
4
0910608162
ref: 4
BOLT(8X40)
€ 3.50
5
0918008220
ref: 5
SPACER(8.6X12X14.3)
€ 5.50
6
0932012048
ref: 6
CUSHION
€ 5.00
7
1420023H00
ref: 7
JOINT
€ 296.50
8
1425023H00
ref: 8
BRACKET,EXHAUST VALVE CABLE
€ 6.00
9
1428023H00
ref: 9
COVER,EXHAUST VALVE
€ 20.00
10
1477023H00
ref: 10
BRACKET,JT SPRT
€ 13.00
11
1477124F10
ref: 11
CONNECTOR,MUFFLER
€ 20.00
12
0910308392
ref: 12
BOLT(8X40)
€ 4.00
13
0911808152
ref: 13
09118-08152-A05
BOLT 8X45
€ 5.00
14
0913906078
ref: 14
SCREW(6X10)
€ 3.00
15
0918008152
ref: 15
SPACER(8.6X12X24.2)
€ 6.00
16
0932012048
ref: 16
CUSHION
€ 5.00
17
071200612A
ref: 17
BOLT
€ 3.50
18
0915906094
ref: 18
NUT
€ 8.00
19
1431023H00H01
ref: 19
BODY,MUFFLER
€ 1,606.50
20
1441423H00
ref: 20
NUT,MUFFLER SUPPORT
€ 8.50
21
1477124F10
ref: 21
CONNECTOR,MUFFLER
€ 20.00
22
0910308358
ref: 22
BOLT(8X45)
€ 3.50
23
0910308392
ref: 23
BOLT(8X40)
€ 4.00
24
0911808068
ref: 24
09118-08145
BOLT 8X40
€ 7.50
25
0918008152
ref: 25
SPACER(8.6X12X24.2)
€ 6.00
26
0918008220
ref: 26
SPACER(8.6X12X14.3)
€ 5.50
27
0932012048
ref: 27
CUSHION
€ 5.00
28
1479023H00
ref: 28
PLATE,MUFFLER RR,R
€ 173.00
29
1489023H00
ref: 29
PLATE,MUFFLER RR,L
€ 116.50
30
0928048011
ref: 30
O RING(D:5.7,ID:47.6)
€ 6.50
31
083161006A
ref: 31
NUT
€ 2.50
32
1473123H00
ref: 32
GUARD,MUF HEAT
€ 114.00
33
1479523H00
ref: 33
CUSHION,HEAT GUARD
€ 7.00
34
0913906128
ref: 34
SCREW(6X12)
€ 4.00
35
0932008066
ref: 35
CUSHION
€ 7.50
36
1126918G00
ref: 36
11269-18G01
PULLEY CONTROL
€ 17.00
37
1127623H00
ref: 37
CABLE,EXHAUST VALVE NO.1
€ 35.00
38
1127723H00
ref: 38
CABLE,EXHAUST VALVE NO.2
€ 35.00
39
071200516A
ref: 39
BOLT
€ 1.50
40
015500610A
ref: 40
BOLT
€ 2.00
41
1445806H00
ref: 41
SPACER,MUFFLER
€ 3.00
42
1821323H00
ref: 42
SENSOR,OXYGEN
€ 253.00
