OIL COOLER

GSX1300BK BKING 2008 (K8) USA (E03)

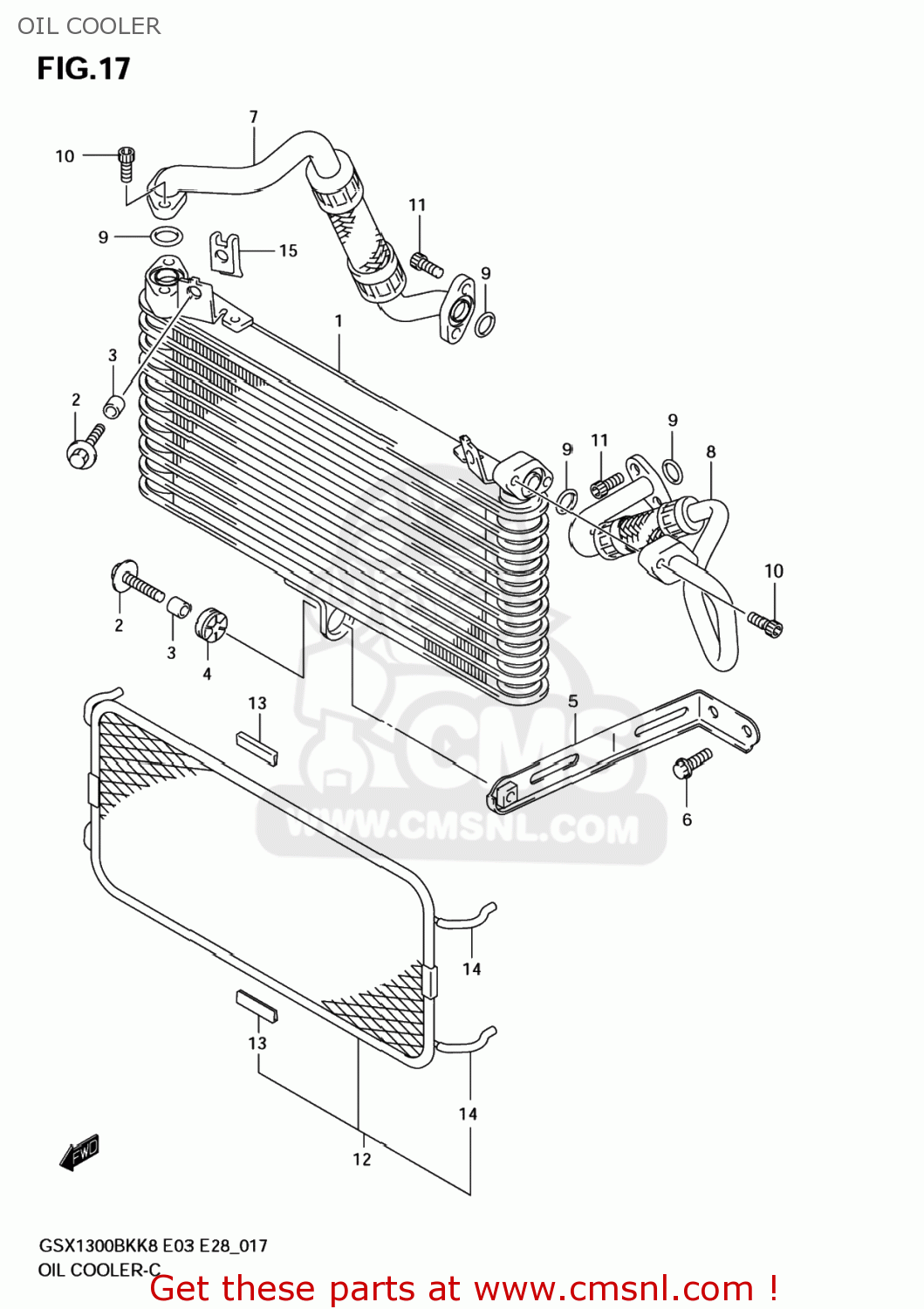

Oil cooler diagram GSX1300BK BKING 2008 (K8) USA (E03)

OIL COOLER GSX1300BK BKING 2008 (K8) USA (E03)

OIL COOLER GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660015H10
ref: 1

COOLER ASSY,OIL

€ 1,221.50

2

0911806097
ref: 2

BOLT(6X25)

€ 2.50

3

0918006290
ref: 3

SPACER(6.5X10X12)

€ 2.50

4

0932010051
ref: 4

CUSHION

€ 3.50

5

1664024F00
ref: 5

BRACKET,OIL COOLER

€ 8.00

6

015500612A
ref: 6

BOLT

€ 2.50

7

1646015H00
ref: 7

HOSE,OIL COOLER,R

€ 129.00

8

1647015H00
ref: 8

HOSE,OIL COOLER,L

€ 129.00

9

0928015015
ref: 9

O RING(D:2.4,ID:16)

€ 5.00

10

0910606096
ref: 10

BOLT(6X20)

€ 4.00

11

0910606073
ref: 11

BOLT(6X16)

€ 2.50

12

1665015H00
ref: 12

GUARD,OIL COOLER

€ 46.00

13

1776509F00
ref: 13

PROTECTOR,CTR

€ 2.50

14

0935230503600
ref: 14

HOSE(3X5X600)

€ 8.00

15

1780214F00
ref: 15

NUT,RADIATOR FAN

€ 3.00
