FRONT FENDER (WITH ABS)

GSX1300BK BKING 2008 (K8) USA (E03)

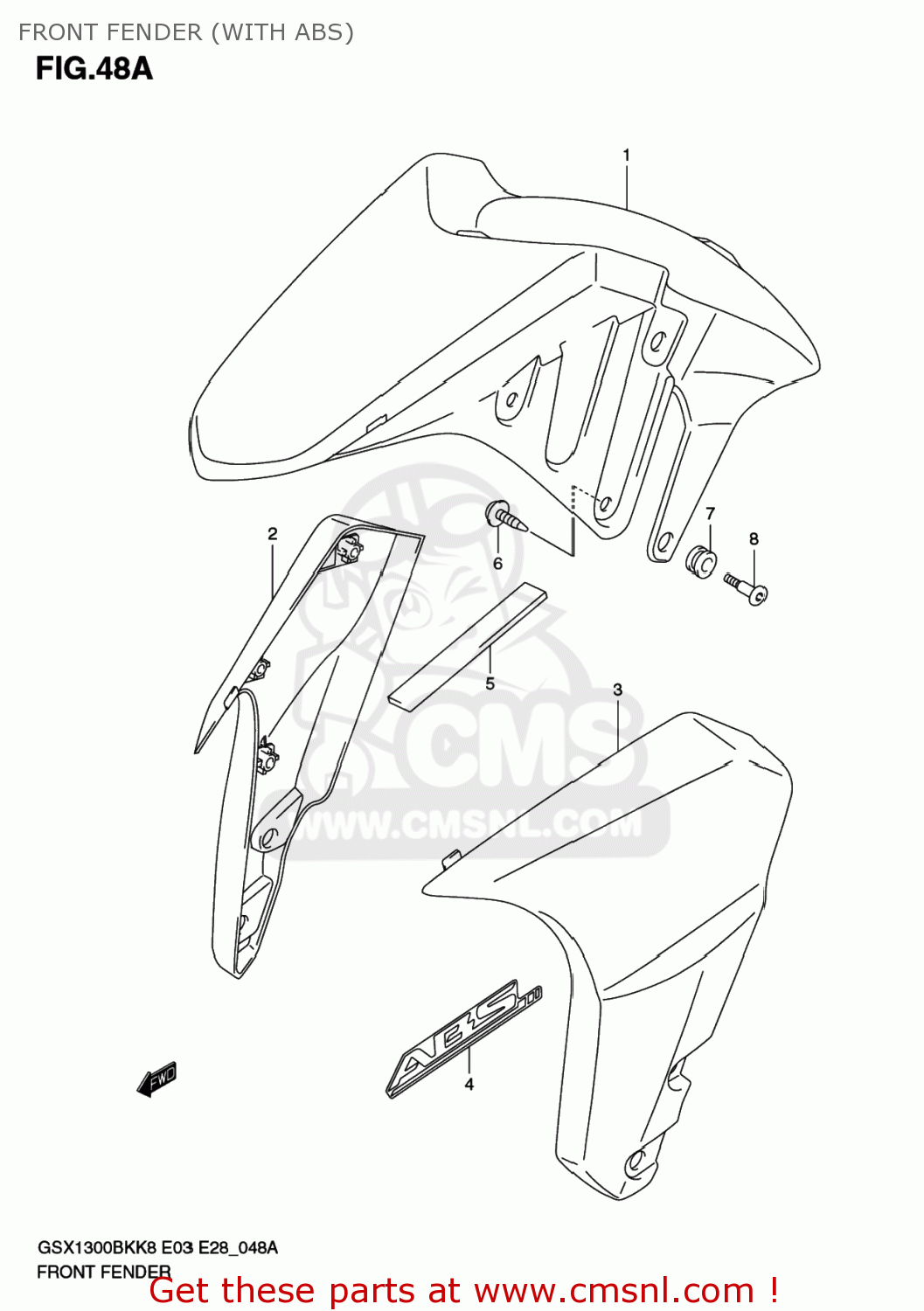

Front fender (with abs) diagram GSX1300BK BKING 2008 (K8) USA (E03)

FRONT FENDER (WITH ABS) GSX1300BK BKING 2008 (K8) USA (E03)

FRONT FENDER (WITH ABS) GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311023H10019
ref: 1-1

FENDER,FR

€ 143.50

1-2

5311023H10YHF
ref: 1-2

FENDER,FR

€ 136.50

2-1

5312023H20YKV
ref: 2-1

COVER,FR FENDER SIDE,R(BLACK)

€ 108.50

2-2

5312023H10YMD
ref: 2-2

COVER,FR FENDER SIDE,R(SILVER)

€ 108.50

3-1

5313023H20YKV
ref: 3-1

COVER,FR FENDER SIDE,L(BLACK)

€ 108.50

3-2

5313023H10YMD
ref: 3-2

COVER,FR FENDER SIDE,L(SILVER)

€ 115.50

4-1

6815144G10DUJ
ref: 4-1

EMBLEM,ABS

€ 13.50

4-2

6815144G0017U
ref: 4-2

EMBLEM,ABS

€ 13.50

5

5312223H00
ref: 5

CUSHION,FR FENDER SIDE COVER

€ 3.50

6

0913605062
ref: 6

SCREW(5X15)

€ 2.50

7

0932009016
ref: 7

CUSHION

€ 2.50

8

0913906146
ref: 8

SCREW(6X16)

€ 3.00
