GSX1300BK BKING 2008 (K8) USA (E03)

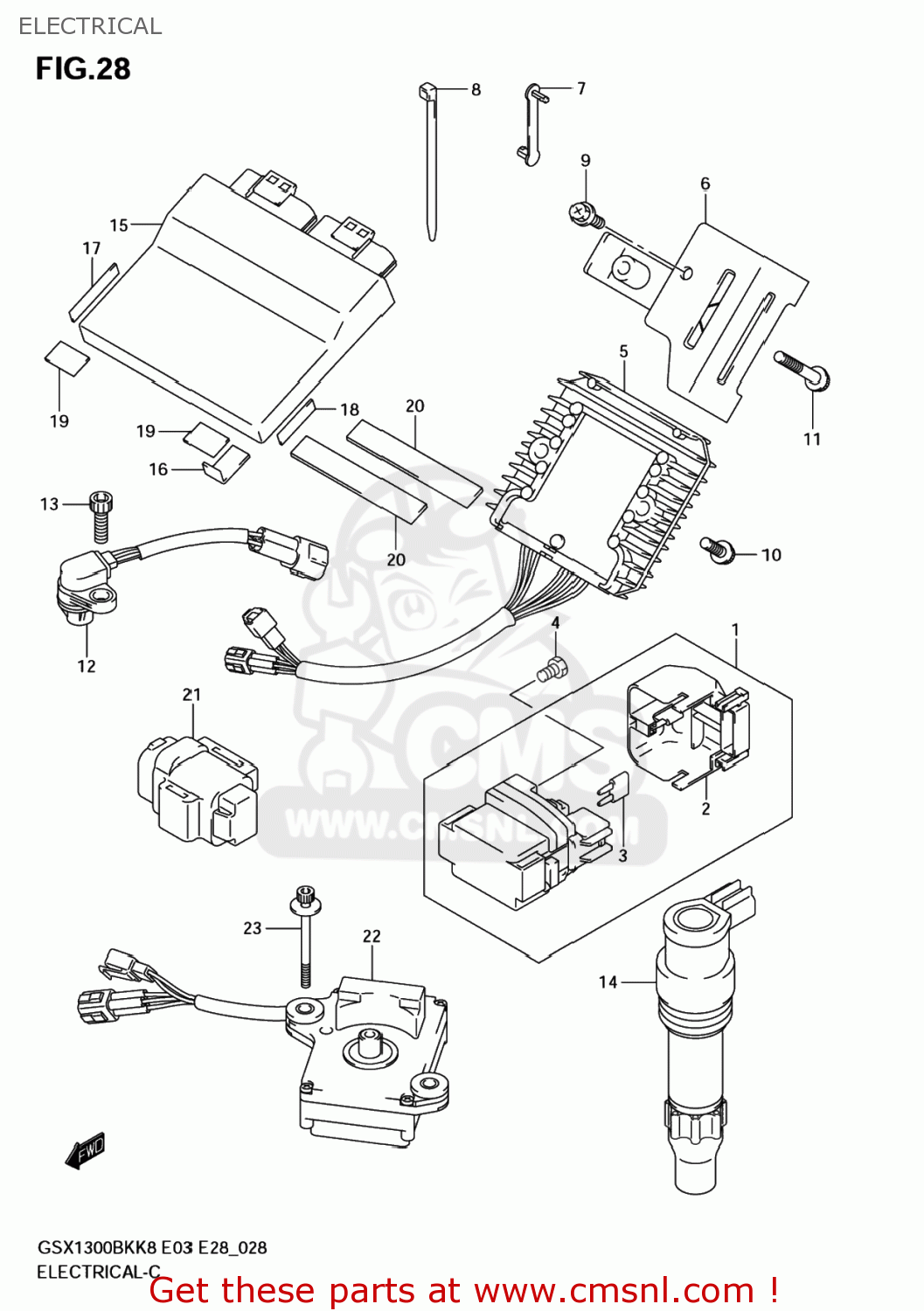

Electrical diagram GSX1300BK BKING 2008 (K8) USA (E03)
ELECTRICAL GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180041G00
ref: 1
31800-41G10
RELAY ASSY,STARTING MOTOR
€ 103.00
2
3186138G00
ref: 2
COVER
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280015H00
ref: 5
RECTIFIER ASSY
€ 352.00
6
3282023H00
ref: 6
COVER,RECTIFIER
€ 117.50
7
3665148E00
ref: 7
CLAMP(L:63)
€ 2.50
8
0940710404
ref: 8
CLAMP(L:100)
€ 4.00
9
021620610B
ref: 9
SCREW
€ 1.50
10
071200625B
ref: 10
BOLT
€ 2.50
11
071200650B
ref: 11
BOLT
€ 2.50
12
3322001H00
ref: 12
SENSOR ASSY,CAM POSITION
€ 108.00
13
071300616A
ref: 13
07130-0616B
BOLT
€ 3.00
14
3341024F10
ref: 14
COIL ASSY,IGNITION
€ 139.00
15
3292023H20
ref: 15
CONTROL UNIT,FI
€ 1,258.00
16
3365238A10
ref: 16
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
16
3365238A10
ref: 16
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
17
3365238A10
ref: 17
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
17
3365238A10
ref: 17
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
18
3365238A10
ref: 18
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
18
3365238A10
ref: 18
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
19
3365137000
ref: 19
PROTECTOR(170X95X3.0)
€ 5.00
19
3365137000
ref: 19
PROTECTOR(170X95X3.0)
€ 5.00
20
3365238A10
ref: 20
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
21
3396027G00
ref: 21
SENSOR ASSY,FUEL CUT
€ 72.00
22
3397041G00
ref: 22
ACTUATOR ASSY,EXHAUST CONTROL
€ 347.00
23
0911606198
ref: 23
BOLT(6X60)
€ 3.50
