TURNSIGNAL LAMP
GSX1300BK BKING 2008 (K8) USA (E03)

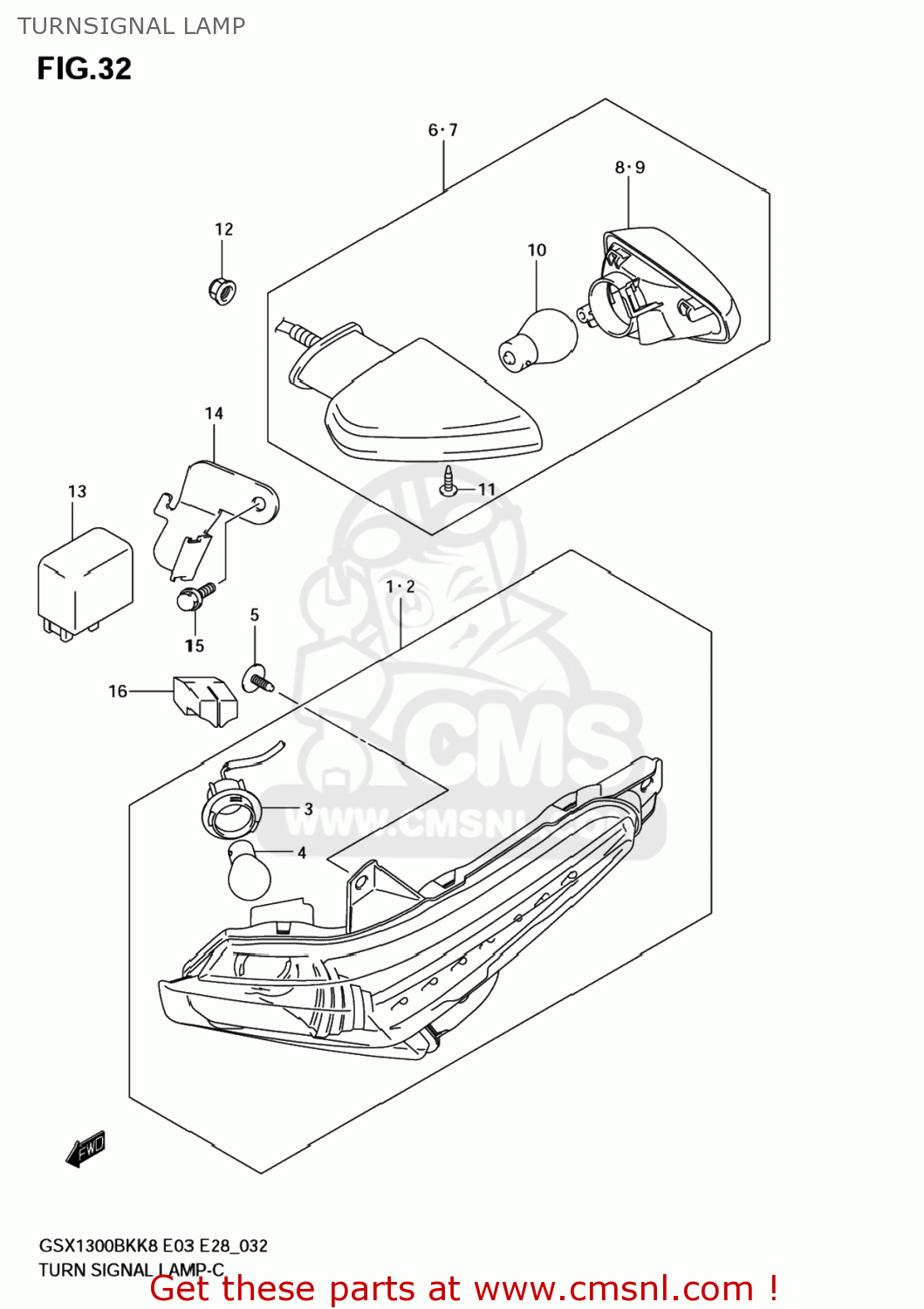

Turnsignal lamp diagram GSX1300BK BKING 2008 (K8) USA (E03)
TURNSIGNAL LAMP GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560123H00
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 157.50
2
3560223H00
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 157.50
3
3561823H00
ref: 3
SOCKET & CORD
€ 16.50
4
0947112186
ref: 4
BULB(12V21W,AMBER)
€ 2.50
5
0913605057
ref: 5
09136-05068
SCREW (5X20)
€ 3.00
6
3560323H00
ref: 6
LAMP ASSY,RR TURNSIGNAL,R
€ 104.50
7
3560423H00
ref: 7
LAMP ASSY,RR TURNSIGNAL,L
€ 104.50
8
3565023H00
ref: 8
LAMP UNIT,R
€ 33.00
9
3567023H00
ref: 9
LAMP UNIT,L
€ 39.00
10
0947112186
ref: 10
BULB(12V21W,AMBER)
€ 2.50
11
032410412A
ref: 11
SCREW
€ 1.50
12
083161010B
ref: 12
NUT
€ 2.00
13
3861003F00
ref: 13
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
14
3861523H00
ref: 14
BRACKET,TURNSIGNAL RELAY
€ 7.50
15
015470610A
ref: 15
BOLT
€ 2.00
16
4416823H00
ref: 16
GUIDE,FUEL TANK COVER
€ 7.50
