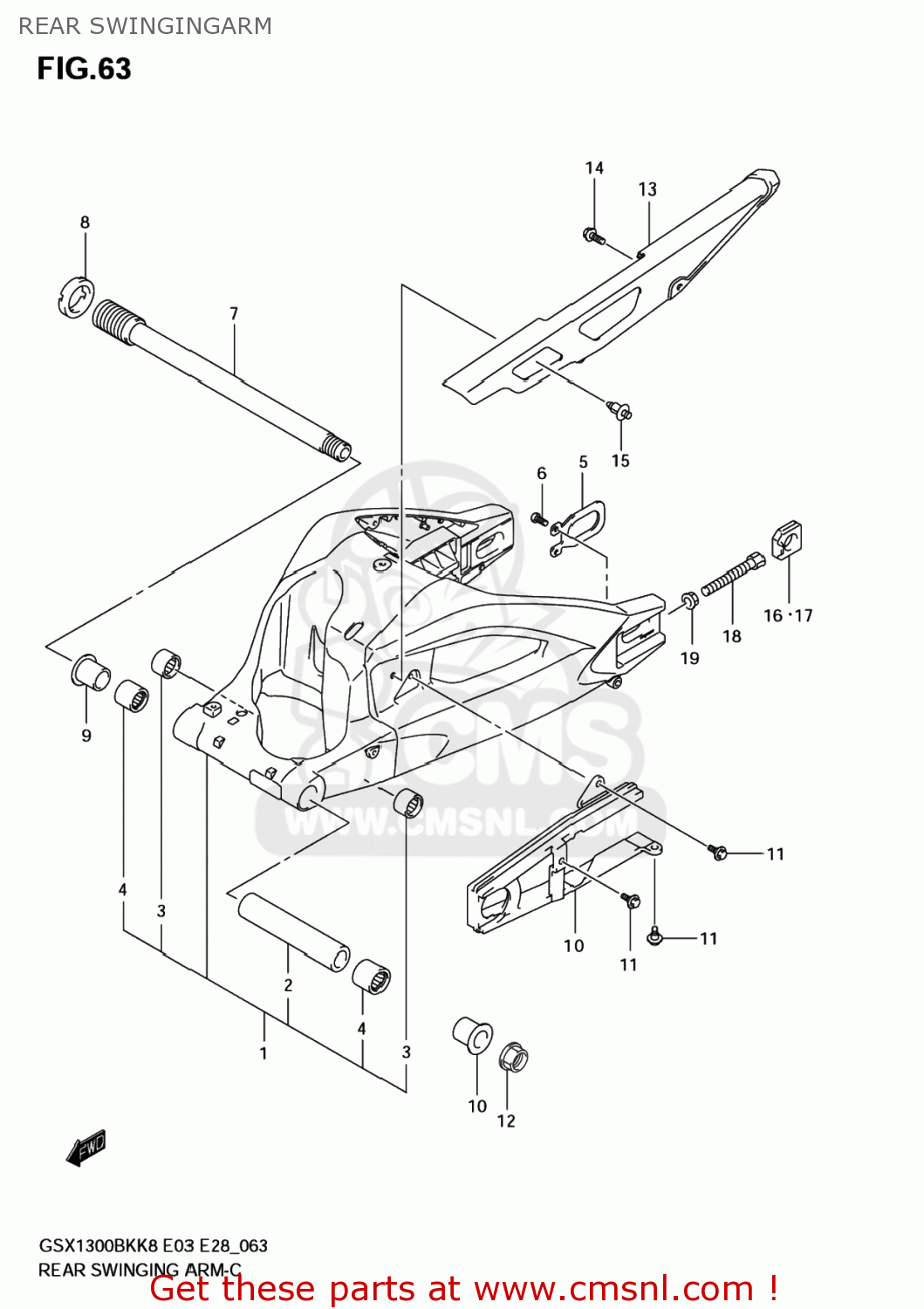

REAR SWINGINGARM

ref

part #

description

quantity

1-1

6100023H00YD8
ref: 1-1

SWINGINGARM AS

€ 2,025.50

1-1

6100023H00YD8
ref: 1-1

SWINGINGARM AS

€ 2,025.50

1-2

6100023H00YAP
ref: 1-2

SWINGINGARM AS

€ 2,177.00

1-2

6100023H00YAP
ref: 1-2

SWINGINGARM AS

€ 2,177.00

1-3

6100023H10YD8
ref: 1-3

SWINGINGARM ASSY,RR

€ 2,025.50

1-3

6100023H10YD8
ref: 1-3

SWINGINGARM ASSY,RR

€ 2,025.50

1-4

6100023H10YAP
ref: 1-4

SWINGINGARM ASSY,RR

€ 2,177.00

1-4

6100023H10YAP
ref: 1-4

SWINGINGARM ASSY,RR

€ 2,177.00

2

6128123H00
ref: 2

SPACER,RR SWG PVT CTR

€ 37.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926327013
ref: 4

BEARING(27X35X35)

€ 23.00

5

6112433E00
ref: 5

PLATE,RR SWING ARM BRKT

€ 3.50

6

0912506073
ref: 6

SCREW(6X16)

€ 3.00

7

6121123H00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 101.50

8

6121423H00
ref: 8

NUT,RR SWGARM PIVOT BOLT

€ 19.50

9

6125141G00
ref: 9

SPACER,RR SWGARM PIVOT BEARING

€ 19.00

10

6127323H00
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 55.00

11

0911106072
ref: 11

BOLT(6X17.8)

€ 2.00

12

0915920006
ref: 12

NUT

€ 19.00

13

6131123H00
ref: 13

CASE,CHAIN

€ 43.00

14

6316143E00
ref: 14

BOLT

€ 3.00

15

09409083085ES
ref: 15

CLIP(BLACK)

€ 2.00

16

6144540F30
ref: 16

ADJUSTER,CHAIN,R

€ 41.00

17

6144640F30
ref: 17

ADJUSTER,CHAIN,L

€ 41.00

18

0910008287
ref: 18

BOLT(8X50)

€ 3.00

19

083161008A
ref: 19

NUT

€ 2.50
