UNDER COWLING

GSX1300BK BKING 2008 (K8) USA (E03)

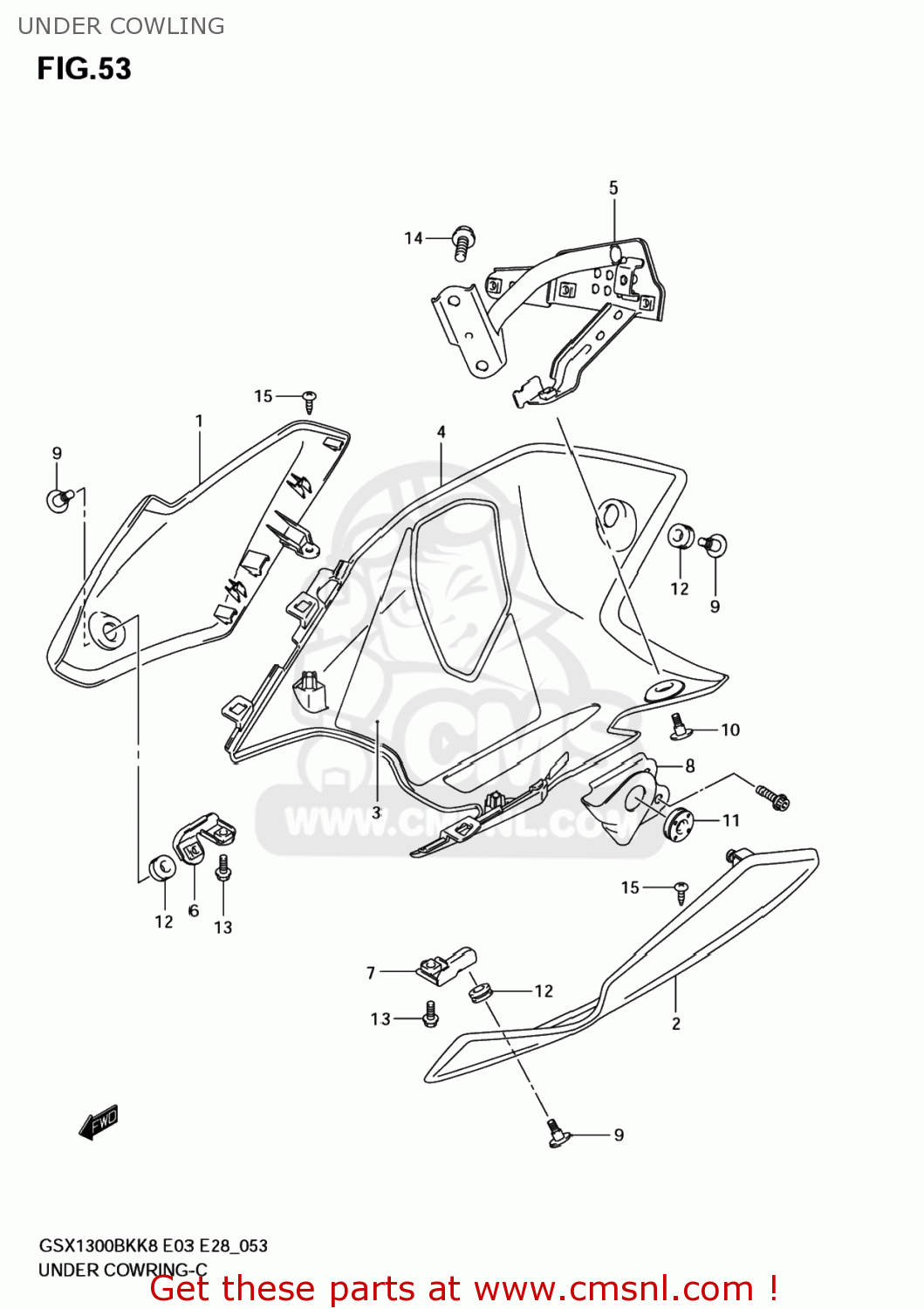

Under cowling diagram GSX1300BK BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9447123H00019
ref: 1-1

COWLING,UNDER,R

€ 194.50

1-2

9447123H00YKV
ref: 1-2

COWLING,UNDER,R

€ 194.50

2-1

9448123H00019
ref: 2-1

COWLING,UNDER,L

€ 194.50

2-2

9448123H00YKV
ref: 2-2

COWLING,UNDER,L

€ 194.50

9449723H00
ref: 3

HEATSHIELD,UNDER COWL CTR

€ 14.50

9449823H00YKV
ref: 4

COWLING,UNDER CTR

€ 251.00

9453023H00
ref: 5

BRACE,UNDER COWLING

€ 105.00

9454023H00
ref: 6

BRACKET,UNDER COWLING,R

€ 16.50

9455023H00
ref: 7

BRACKET,UNDER COWLING,L

€ 16.50

9456123H00
ref: 8

BRACKET,UNDER COWLING

€ 10.50

0913906126
ref: 9

SCREW(6X20)

€ 4.00

0913906131
ref: 10

SCREW(6X16)

€ 4.00

0932008028
ref: 11

CUSHION

€ 2.50

0932009016
ref: 12

CUSHION

€ 2.50

015500612A
ref: 13

BOLT

€ 2.50

015700820A
ref: 14

BOLT

€ 1.50

035410512A
ref: 15

SCREW

€ 2.00
